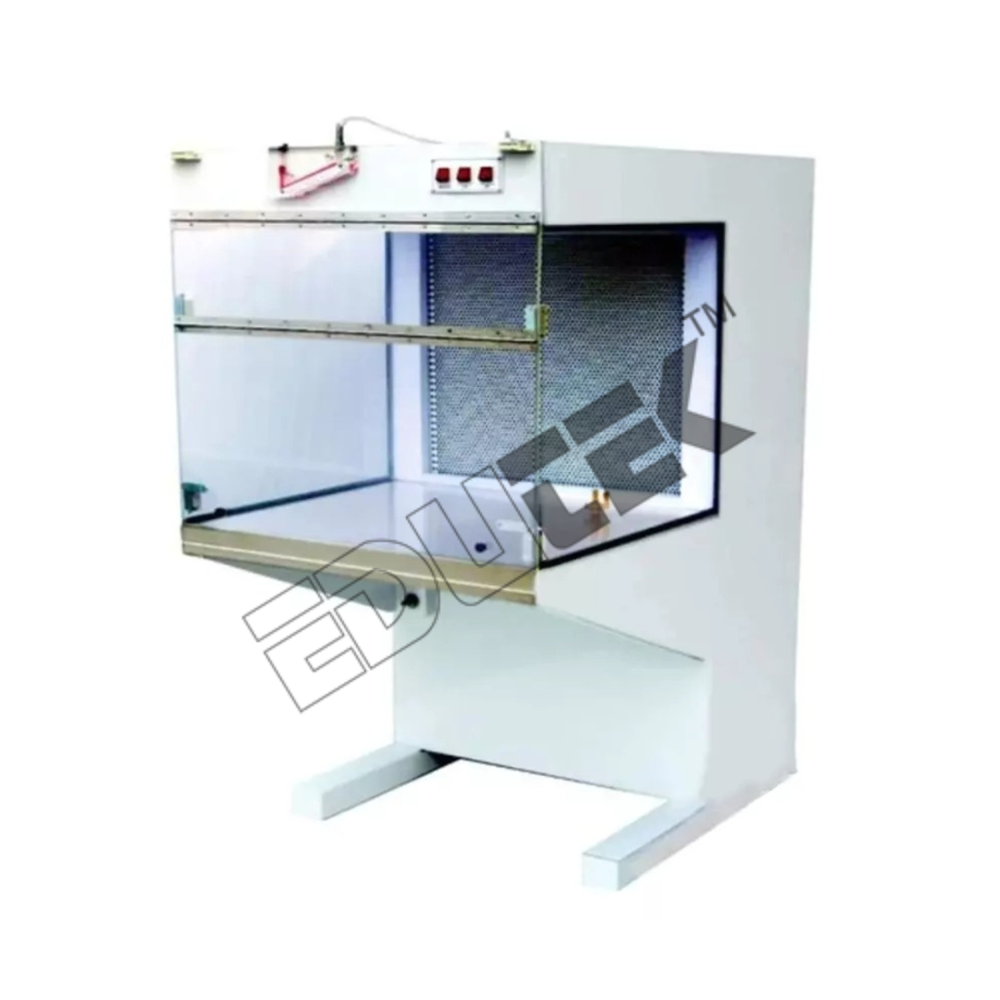

Laminar Air Flow Cabinet

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Laminar Air Flow Cabinet Specification

Capacity
4 ft (available in 3 ft, 4 ft, and 6 ft configurations) Pcs/hr

Frequency
50 Hz Hertz (HZ)

Voltage
220-230V Volt (v)

Automation Grade
Manual (Optional: Automatic / Digital Timer)

Core Components
HEPA filter, UV light, fluorescent light, pre-filter, blower, work surface

Feature
Provides ISO Class 5 (Class 100) clean air, low noise operation, glass shield, energy efficient

Model No

Measurement Range
Particle retention 0.3 microns and above

Temperature Range
Ambient, non-heating Celsius (oC)

Accuracy
Highly efficient in removing 99.97% particles 0.3 micron %

Power Source
Electric, single phase

Equipment Materials
Body made of heavy gauge stainless steel (SS 304) with transparent acrylic or glass side panels

Type
Horizontal Laminar Air Flow Cabinet

Usage
Used for sterile work in laboratories, pharmaceutical, industrial and research applications

Display Type
Analog/Digital display for airflow and lighting controls

Dimension (L*W*H)
1200 x 600 x 600 mm (4 ft type); other sizes available Millimeter (mm)

Weight
Approx. 70-90 kg (depends on model size) Kilograms (kg)

Air Cleanliness Level
ISO Class 5/Class 100

Power Consumption
Approx. 500W

Work Table Material
Perforated SS 304 Surface

Optional Accessories
Gas tap, extra socket, pressure gauge, etc.

Airflow Velocity
0.3 to 0.5 m/s (approx. 90 to 110 FPM)

Color
Silver/white (Depending on variant)

Blower Motor
Dynamically balanced, vibration-free

Cabinet Construction
SS 304 grade interior and exterior, powder coated finish for optional models

Installation Type
Tabletop

Operation
Continuous operation capable

Mobility
Optional castor wheels for easy movement

Lighting
White Fluorescent Lamp with UV Germicidal Lamp

Glass Shield
Front glass shield for operator protection

Safety Features
UV interlock, overload protection

Certification/Standard
ISO, CE certified

HEPA Filter Efficiency
99.97% at 0.3 micron

Pre-Filter
Washable synthetic fiber filter

Noise Level
Less than 65 dB

Front Door
Sliding sash (Acrylic/Glass)

About Laminar Air Flow Cabinet

Laminar Air Flow Cabinet ETC-73B

Micro-Controller based : Menu Controlled with LCD Display.

Operation Laminar Airflow Velocity : Average of 0.45 m/s or 90 fpm

measured 150mm/6 filter face for 45 air changes/min. in work

zone.

SUITABLE FOR ALL SIZES (WOODEN, MILD STEEL, STAINLESS STEEL)

Advanced Clean Air Technology

The cabinet provides ultra-clean, ISO Class 5 air using a high-efficiency HEPA filter, pre-filter, and perforated SS 304 work surface. Airflow velocity is carefully maintained at 0.3 to 0.5 m/s, efficiently capturing 99.97% of particles as small as 0.3 micron, ensuring contamination-free operation for sensitive tasks in various laboratory and manufacturing environments.

Robust Stainless Steel Construction

Designed with both the exterior and interior made from heavy-gauge SS 304 stainless steel, the cabinet ensures durability, easy cleaning, and corrosion resistance. Side panels are crafted from transparent acrylic or glass for visibility and safety. Powder-coated models and optional mobility via castor wheels enhance adaptability to changing laboratory layouts.

User-Centric Features and Safety

This laminar air flow cabinet comes with an array of user-friendly and protective features: a front glass shield for operator protection, dynamically balanced, vibration-free blower motor, energy-efficient lighting, analog/digital airflow monitoring, and vital safety systems such as UV interlock and overload protection. Optional accessories like gas taps and pressure gauges are also available.

FAQs of Laminar Air Flow Cabinet:

Q: How does the Laminar Air Flow Cabinet maintain a sterile working environment?

A: The Laminar Air Flow Cabinet creates a sterile workspace by directing horizontally flowing filtered air through a high-efficiency HEPA filter, trapping 99.97% of particles as small as 0.3 microns. The airflow velocity is set between 0.3 and 0.5 m/s, while integrated UV germicidal lamps further reduce microbial contamination, meeting ISO Class 5 (Class 100) standards.

Q: What applications is this cabinet suitable for, and when should I use it?

A: This equipment is ideal for any process requiring an ultra-clean, particle-free environment, such as microbiological analysis, pharmaceutical preparation, semiconductor manufacturing, and research laboratory tasks. Use it whenever sterile, contaminant-free conditions are critical to your work.

Q: Where can the Laminar Air Flow Cabinet be installed, and how portable is it?

A: The cabinet is designed for tabletop installation in laboratories, cleanrooms, or research facilities. Optional castor wheels provide easy mobility, allowing you to move and reposition the unit according to your workspace requirements.

Q: What safety features are built into the cabinet?

A: Safety is prioritized through a front glass shield, UV interlock to prevent accidental UV exposure, and overload protection, which collectively safeguard both the user and work materials during operation.

Q: How is the airflow and lighting monitored or controlled?

A: The cabinet is equipped with either an analog or digital display, enabling real-time monitoring and control of airflow velocity and lighting. This ensures optimal performance, safety, and environmental control at all times.

Q: What is the maintenance process for the filters and lights?

A: Routine maintenance involves periodic washing or replacement of the pre-filter, HEPA filter inspection/replacement as per usage, and UV lamp checks. The cabinets straightforward design and accessibility make filter and lamp servicing quick and efficient.

Q: What are the benefits of using a stainless steel (SS 304) construction for this cabinet?

A: SS 304 grade construction offers excellent durability, resistance to corrosion and biological contamination, and easy cleaning. This robust material choice ensures longevity and ongoing sterile conditions, crucial for sensitive laboratory tasks.
