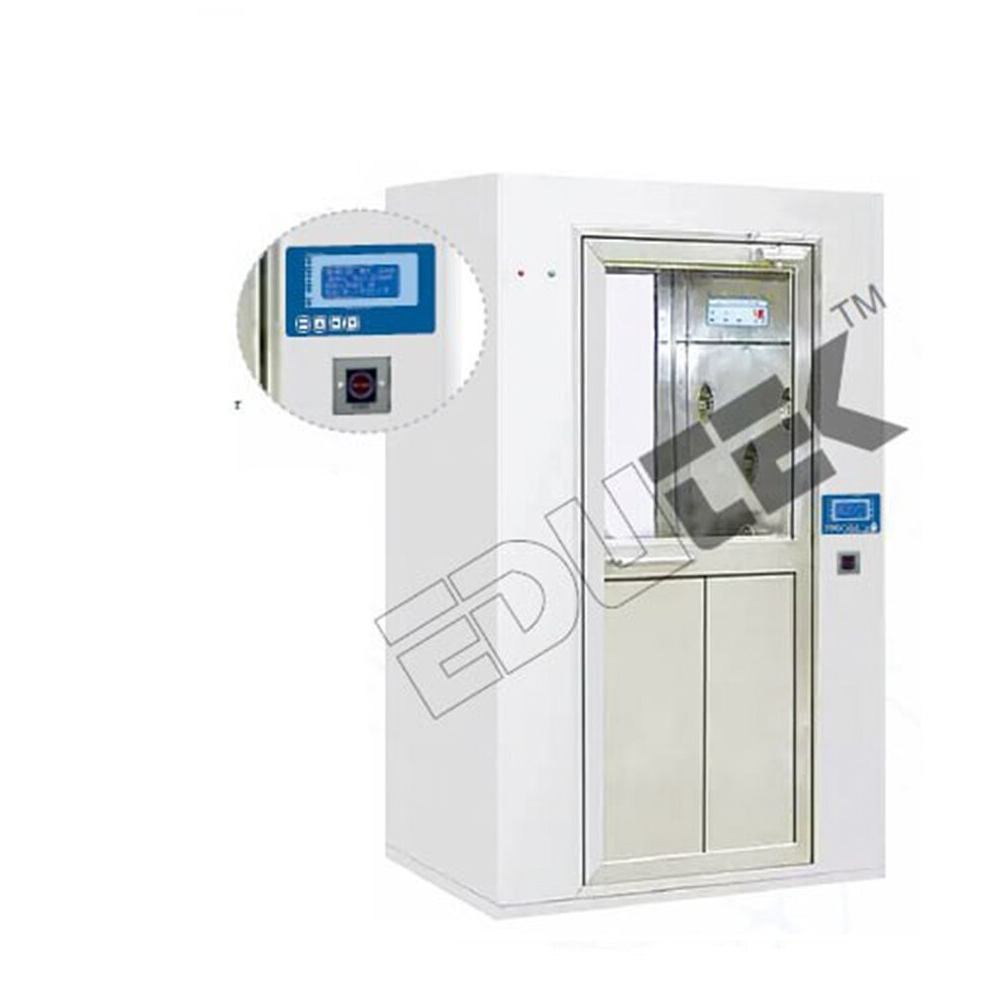

AIR SHOWER

Name: AIR SHOWER
Brand: EDUTEK INSTRUMENTATION
Price: 3000.0 INR
Availability: InStock

Price 3000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

AIR SHOWER Specification

Voltage
220V - 240V Volt (v)

Measurement Range
Up to 99.99% Filtration

Feature
Easy Operation with Programmable Timer

Capacity
300 Kg

Power Source
Electric

Automation Grade
Semi-Automatic

Frequency
50 Hz Hertz (HZ)

Core Components
HEPA Filter, Blower, Nozzle, Control Panel

Model No
ETC-71

Equipment Materials
Powder Coated Steel / Stainless Steel

Type
Air Shower Cabin

Usage
Industrial Cleanroom Entry

Display Type
LED DISPLAY

Dimension (L*W*H)
1300X1000X2050MM Millimeter (mm)

Weight
300 kg Kilograms (kg)

Material Option
Stainless Steel 304/316

Nozzle Count
16 - 32 Nozzles

Air Flow Velocity
20-25 m/s

Operation
Touch Control/Manual

Blower Motor Power
0.75 kW to 1.1 kW

Cabin Capacity
1-2 Person at a Time

Installation
Floor Mounted

Door Type
Swing Door with Interlocking System

Lighting
LED Illumination Inside Cabin

Noise Level
< 65 dB

Safety System
Emergency Stop Button

AIR SHOWER Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About AIR SHOWER

AIR SHOWER Air shower is ideal supporting equipment for biological clean rooms and clean workshops They are widely used for blowing off humans and their belongings surface dusts in microelectronics hospitals pharmaceuticals biochemical food safety fine chemical engineering. fine mechanics, productive facilities and scientific and research institutes, such as aviation and aerospace Meanwhile air showers also work as an air brake to prevent unpurified air from entering clean space In one word it is an effective equipment for cleansing humans and anti-air pollution in clean space. Air shower is a necessary passage for person entering clean room in order to minimize the amount of particulate contaminant, achieve workplace strict clean purification standards. Personnel move through the air shower while particulate contaminants are blew off by the clean high speed air. So the dust cannot be brought into clean area. Features Photoelectric sensor automatic blowing Designed with circulation wind to measure the cleanliness of shower Area under non-shower status Double doors with electric interlock LED display with adjustable blowing time 0 99s HEPA Filter Class 100 cleanness

High-Efficiency Contamination Control

The ETC-71 Air Shower provides reliable particulate removal through powerful airflow and a multi-nozzle configuration. Its HEPA filters, combined with a velocity of 20-25 m/s, enable efficient removal of dust and contaminants before entering controlled environments. The programmable timer facilitates custom operation cycles tailored to specific requirements.

Robust and Safe Construction

Manufactured from premium materialseither stainless steel 304/316 or powder-coated steelthis air shower ensures durability and corrosion resistance. The swing door with a secure interlocking system, floor-mounted design, and emergency stop button enhance operational safety for personnel entering cleanroom facilities.

Intuitive User Experience

With LED illumination inside the cabin, a user-friendly LED display, and both touch or manual control options, operators benefit from easy monitoring and simple operation. Noise levels remain below 65 dB, creating a comfortable environment throughout decontamination cycles.

FAQs of AIR SHOWER:

Q: How does the ETC-71 Air Shower remove contaminants from personnel before cleanroom entry?

A: The air shower uses 16-32 nozzles to direct high-velocity air (20-25 m/s) across the persons clothing and surfaces, effectively dislodging and capturing dust and particle contaminants. These particles are then filtered out by the integrated HEPA filtration system, ensuring a contamination-free entry.

Q: What materials are available for the ETC-71s construction, and how do they benefit different environments?

A: The air shower offers both stainless steel 304/316 and powder-coated steel construction options. Stainless steel provides superior corrosion resistance and durability, making it ideal for sterile and demanding environments. Powder-coated steel is cost-effective and suitable for general industrial use.

Q: When is it appropriate to use this air shower in industrial settings?

A: The air shower is essential at cleanroom entries to prevent contaminants from being transferred inside. It is commonly utilized in pharmaceutical, electronics, food processing, and biotechnology manufacturing facilities where particulate control is crucial.

Q: Where should the ETC-71 Air Shower be installed for optimal operation?

A: This model is designed for floor-mounted installation at the primary entry point to your cleanroom or controlled area. Positioning it where personnel must pass through ensures every entrant is effectively decontaminated, thus protecting the integrity of your controlled environment.

Q: What is the operation process for using this air shower cabin?

A: Personnel enter the cabin through an interlocked swing door. Once inside, the programmable system activates, releasing high-velocity air jets for the set cycle duration. After decontamination, the exit door releases, allowing safe entry into the cleanroom. Touch or manual control facilitates straightforward operation.

Q: What benefits does the emergency stop feature provide?

A: The emergency stop button allows immediate shutdown of the air showers operation, ensuring personnel safety in unexpected circumstances and providing peace of mind for operators.

Q: How energy-efficient and user-friendly is this air shower model?

A: Equipped with an efficient blower motor (0.75-1.1 kW) and LED lighting, ETC-71 keeps operational costs low. The semi-automatic, programmable system with LED display makes it easy to use and maintain while delivering consistently high air filtration efficiency.
