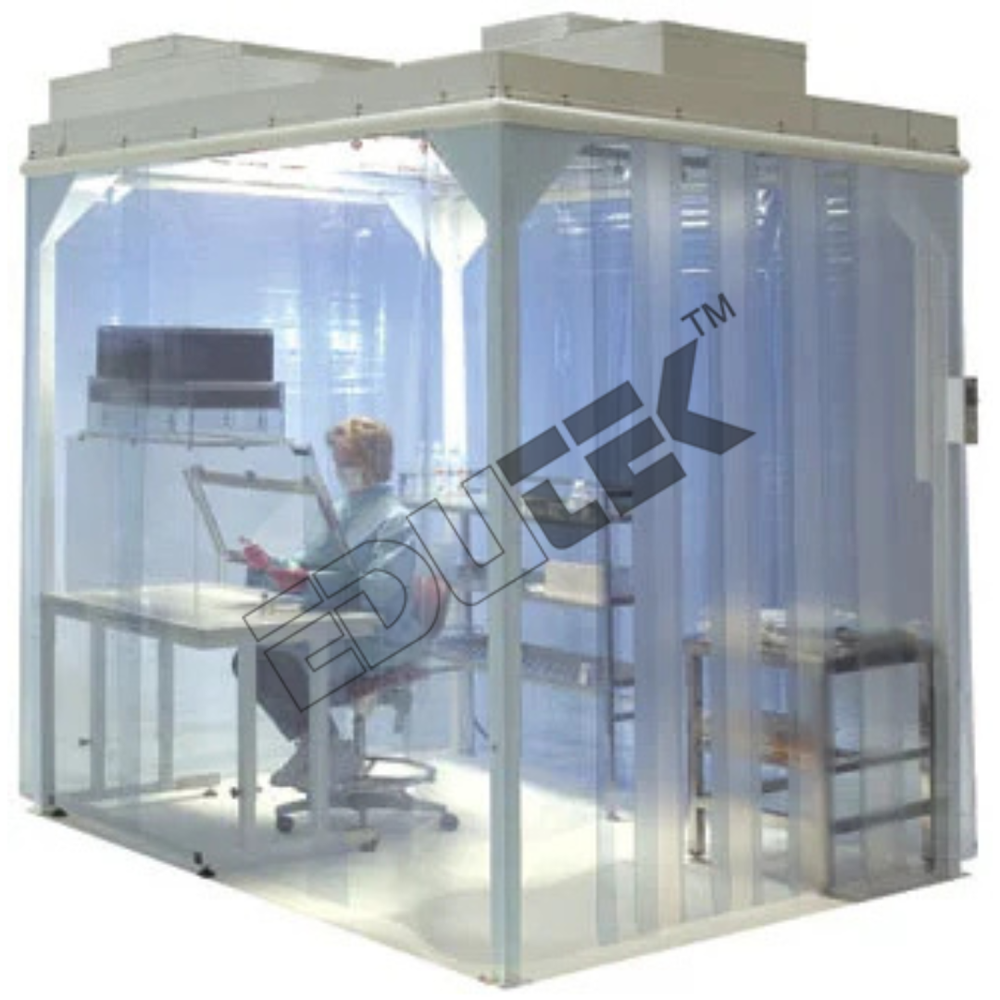

Clean Air Tent

About Clean Air Tent

CLEAN AIR TENT- CLASS 10000:

• Clean air tents are generally used within a CLASS 100000 clean rooms, in which a specific area where the manufacturing & processing activity is taking place.
• The ceiling provided with HEPA filters and at least 250 air changes per hour are maintained to provide an absolutely clean & CLASS 10000 inside within minutes after the system is switched on.
• The complete structure made of SS304 square tubular sections designed for withstanding the loads coming on that considering appropriate margin of safety.
• The strong castor wheels with brake provided at the bottom that enables the total unit to move from place to place.
• Jacks provided at bottom that supports the whole system

TECHNICAL SPECIFICATIONS:

• Type : Self-Standing Mobile Facility
• Size : 4 m X 4 m X 5 m (L X B X H)
• Direction of Flow : Vertical Down flow
• Cleanliness : Overall Class 10000 (ISO 7 replaces with Class 10000-US FED STD 209 E)
• Particle Retention : 0.3 Micron & Above
• Noise Level : Less than 55 decibel on "A" scale more or less 5
• Velocity : 90 Feet/Minute more or less 20
• Differential pressure : Magnehelic Gauge 0-25 mm Imported Dwyer, U.S.A., Make or equivalent
• Illumination : by LED Tubes with Diffusers
• Accessories : Antistatic Polyurethane (PU) Flexible Curtains of 1mm thick
• Power Supply : 230V single phase, 50 Hz and 20 amps.
• Extra Power Sockets : Electrical Power Junction box provided with 5 amps & 15 Amps & Cutler
• hammer socket-each 01 no.

Material of Construction:

• Main Cabinet made from By IS 304 Grade Stainless Steel (SS 304).


And bottom to support with SS304 Pipe Structure with Suitable Castor wheels with Break Facility,

• Designed for load made of MUVTONS or equivalent ISI Make.
• Leveling Jacks provided for better stability and designed to take the total load considering appropriate margin of safety.


Pre Filters

• Efficiency 90%
• Particle Retention 10-15micron rating
• HDPE mesh-3 layers
• 6 mm WG pressure drop

HEPA Filters

• Efficiency : 99.997%
• Particle Retention : 0.3-micron rating
• Micro Glass Fiber paper media Mini-Pleat type with 12 mm WG pressure drop.

Blower Assembly

• DIDW type blower system, which consists of dynamically & statically balanced aluminum impeller driven by a single phase.
• 1440-RPM motor, enclosed in a SS casing suitably suspended in a pair springs & connected to the filter chamber through flexible canvas duct.
• Motor and Electrical Wiring system fire proof grade.

Exceptional Filtration Efficiency

With a certified 99.97% efficiency rate at 0.3 micron levels, the Clean Air Tent ensures reliable removal of airborne particles. Its dual-stage filtration systemincorporating both Pre and HEPA filtersguarantees a superior clean environment for sensitive operations.


Rapid and Simple Assembly

The Clean Air Tent is designed for quick setup, requiring only 1015 minutes. Its modular and collapsible frame allows effortless transport and positioning, making it ideal for temporary setups in locations where portability is essential.


Versatile Applications

This tent caters to diverse needs including cleanrooms, laboratory research, medical procedures, and various industrial scenarios. Its customizable dimensions and high-grade materials make it adaptable for capacity and protection as per specific requirements.
