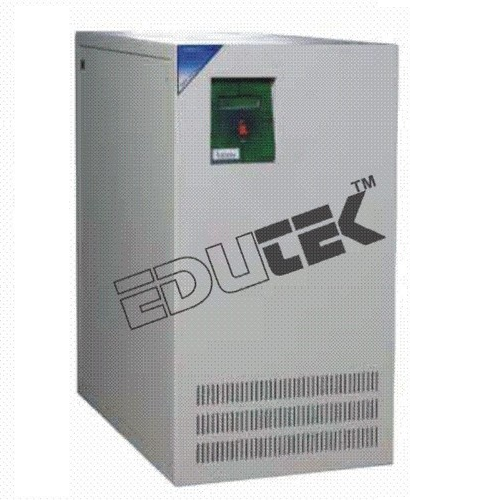

INVERTER .

Get a Price/Quote

MOQ : 1 piece

INVERTER . Specification

Accuracy
99% %

Core Components
Transformer, PCB, Microcontroller

Frequency
50 Hz Hertz (HZ)

Voltage
230 V AC Volt (v)

Model No

Feature
Overload Protection, Short Circuit Protection, Pure Sine Wave Output

Measurement Range
Input Voltage: 100-280 V AC

Power Source
Battery

Capacity
600 VA T/hr

Temperature Range
0 C to 50 C Celsius (oC)

Automation Grade
Automatic

Equipment Materials
ABS Body / Sheet Metal

Type
Inverter

Usage
Home, Office, Commercial

Display Type
LED Digital

Dimension (L*W*H)
350 x 275 x 140 mm Millimeter (mm)

Weight
8 kg Kilograms (kg)

Output Waveform
Pure Sine Wave

Operating Humidity
0% - 90% RH Non-Condensing

Backup Time
3-4 Hours (Depends on Battery)

Compatible Battery Type
Flat Plate, Tubular, SMF

Noise Level
< 50 dB

Protection Features
Deep Discharge, Reverse Polarity, Over Temperature

Installation Type
Floor / Table Top

Display Features
Input/Output Voltage, Battery Level, Load Percentage

Charging Current
10 Amps

Cooling
Inbuilt Fan

About INVERTER .

INVERTERS

SPECIFICATION:

Type : 10 KVA.
Voltage range175V-270V AC.
Input Frequency Range50Hz 5Hz AVR.
Two steps AVR 220v10% Inversion voltage220V 3%.
Output Inversion frequency50Hz 2% O/P waveform Sine wave.
DC voltage96V/192V THD3%.
Transfer time4ms Automatic transfer.
Recharge current10A.
Transfer efficiency90-96%.
Protection against short-circuit, overload Communication ports RS 232 Unit size (mm) 555*360*720.

Advanced Display and Safety Features

Monitor your inverters performance in real time with the LED digital display, showing input/output voltage, battery level, and load percentage. Benefit from multiple safety functions including deep discharge, reverse polarity, over-temperature, overload, and short-circuit protection. These integrated features ensure safe operation while preserving battery health and system longevity.

Flexible Installation for All Settings

Whether you need reliable backup for home, office, or commercial use, built for convenient installation on floors or tabletops. Its compact dimensions allow for easy placement without occupying excessive space, while the inbuilt fan ensures optimal cooling regardless of operating conditions.

Optimized Performance and Compatibility

With pure sine wave output and an accuracy of 99%, the INVT-600 protects your sensitive electronic devices. Compatible with flat plate, tubular, and SMF batteries, this inverter supports diverse requirements and delivers consistent performance. The charger supplies a 10A current for efficient battery management and quick turnaround.

FAQs of INVERTER:

Q: How does the inverter provide pure sine wave output, and why is it beneficial for electronic devices?

A: The inverter uses advanced electronics, including a transformer and microcontroller, to generate a pure sine wave output, identical to utility grid power. This ensures that sensitive devices such as computers, medical equipment, and audio systems run smoothly, without risk of damage or interference that can occur with modified sine wave inverters.

Q: What battery types are compatible with the

A: This inverter supports flat plate, tubular, and SMF battery types. You can choose the most suitable battery based on your capacity requirements and preferences, ensuring flexibility for various installation scenarios and backup needs.

Q: When should I expect the inverter to switch to backup mode, and how long will it provide power?

A: The automatically switches to backup mode when the main power fails. The backup duration ranges from 3 to 4 hours, depending on the batterys capacity and load connected at the time. For maximum backup, opt for a higher capacity battery and ensure efficient load management.

Q: Where can the inverter be installed for optimal performance?

A: Designed for versatile placement, this inverter can be installed on the floor or a tabletop in residential, commercial, or office environments. Position it in a cool, well-ventilated area to allow effective cooling through its inbuilt fan and maintain safe operation within the recommended temperature range.

Q: How does the inverter ensure protection against electrical faults and battery safety?

A: The INVT-600 incorporates comprehensive protection features, including deep discharge, reverse polarity, over-temperature, overload, and short-circuit safeguards. These automated systems help prevent equipment damage, protect batteries, and ensure user safety during operation.

Q: What is the process for monitoring the inverters status and battery health?

A: You can easily monitor input/output voltage, battery level, and load percentage via the LED digital display. This helps users track performance, assess battery health, and adjust loads as necessary for optimal usage and longer battery life.
