SINGLE-PHASE PWM INVERTER TRAINING MODULE

Get a Price/Quote

Product Details:

Voltage 230V AC input
Accuracy High
Automation Grade Manual
Feature PWM generation Single-phase inverter testing
Capacity Single-phase operation
Measurement Range Varied voltage and current range for training
Frequency 50 Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

SINGLE-PHASE PWM INVERTER TRAINING MODULE Product Specifications

Frequency 50 Hz
Warranty 1 Year
Dimension (L*W*H) 300x200x100 mm
Temperature Range 0C to 50C
Equipment Materials Metal and Plastic
Capacity Single-phase operation
Measurement Range Varied voltage and current range for training
Power Source Electric
Core Components IGBT MOSFET Microcontroller
Type Training Module
Usage Educational Lab Training
Model No EDU-PWM-INV-01
Voltage 230V AC input
Accuracy High
Display Type Analog/Digital panel
Feature PWM generation Single-phase inverter testing
Weight 5 kg
Automation Grade Manual

Product Description

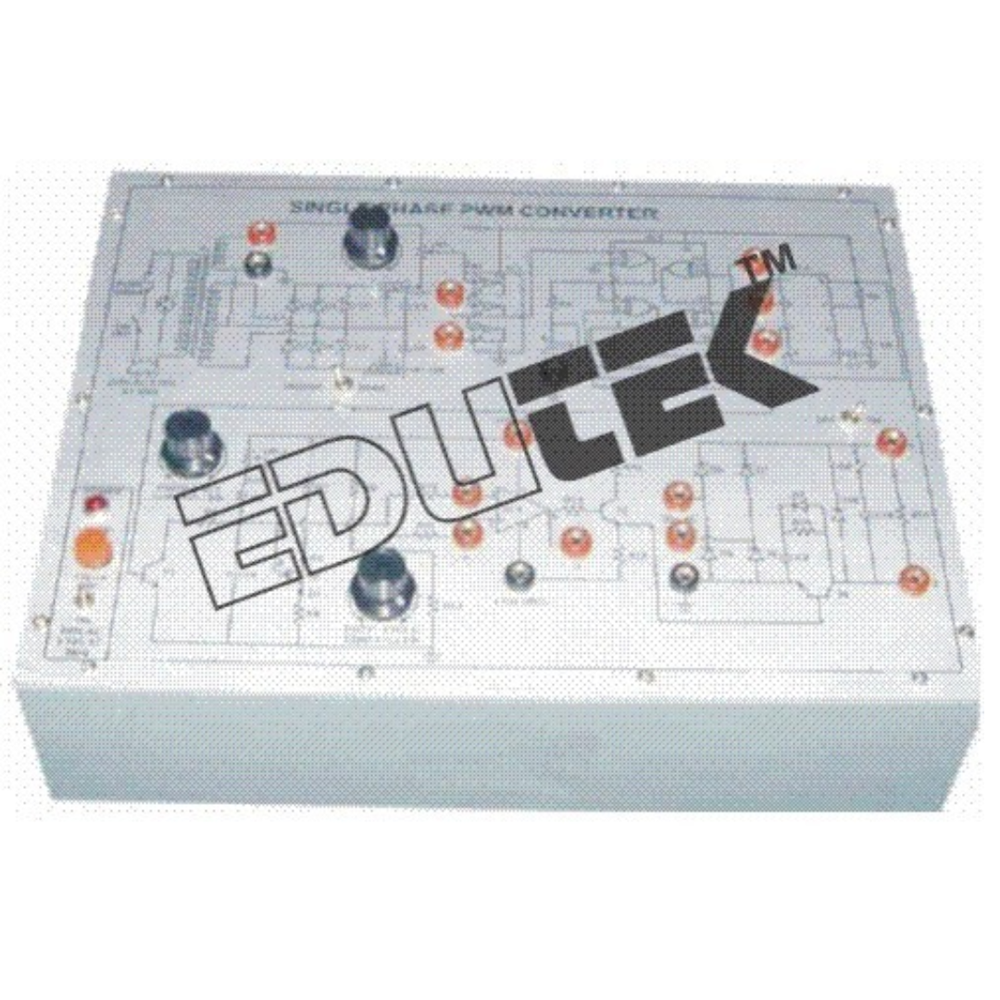

SINGLE-PHASE PWM INVERTER TRAINING MODULE

Edutek Instrumentation are the Best Manufacturer and Exporter engineering trainers Company in India

SPECIFICATION:

Front panel in insulating material, with silk screen printed diagram of the different circuit blocks of the module and electrical diagram of each circuit.
Terminals for the connections and measurements.
MOSFET: 2MOS channels N and 2MOS channels p; output voltage: sine 24Vac/1A; output voltage frequency: 50Hz

FAQs of SINGLE-PHASE PWM INVERTER TRAINING MODULE:

Q: What is the warranty period for the SINGLE-PHASE PWM INVERTER TRAINING MODULE?

A: The warranty period for the SINGLE-PHASE PWM INVERTER TRAINING MODULE is 1 year.

Q: What is the capacity of the SINGLE-PHASE PWM INVERTER TRAINING MODULE?

A: The capacity of the SINGLE-PHASE PWM INVERTER TRAINING MODULE is for single-phase operation.

Q: What are the core components used in the SINGLE-PHASE PWM INVERTER TRAINING MODULE?

A: The core components used in the SINGLE-PHASE PWM INVERTER TRAINING MODULE are IGBT, MOSFET, and Microcontroller.

Q: What is the frequency of the SINGLE-PHASE PWM INVERTER TRAINING MODULE?

A: The frequency of the SINGLE-PHASE PWM INVERTER TRAINING MODULE is 50 Hz.

Q: What is the temperature range the SINGLE-PHASE PWM INVERTER TRAINING MODULE can operate in?

A: The temperature range for the SINGLE-PHASE PWM INVERTER TRAINING MODULE is from 0C to 50C.
