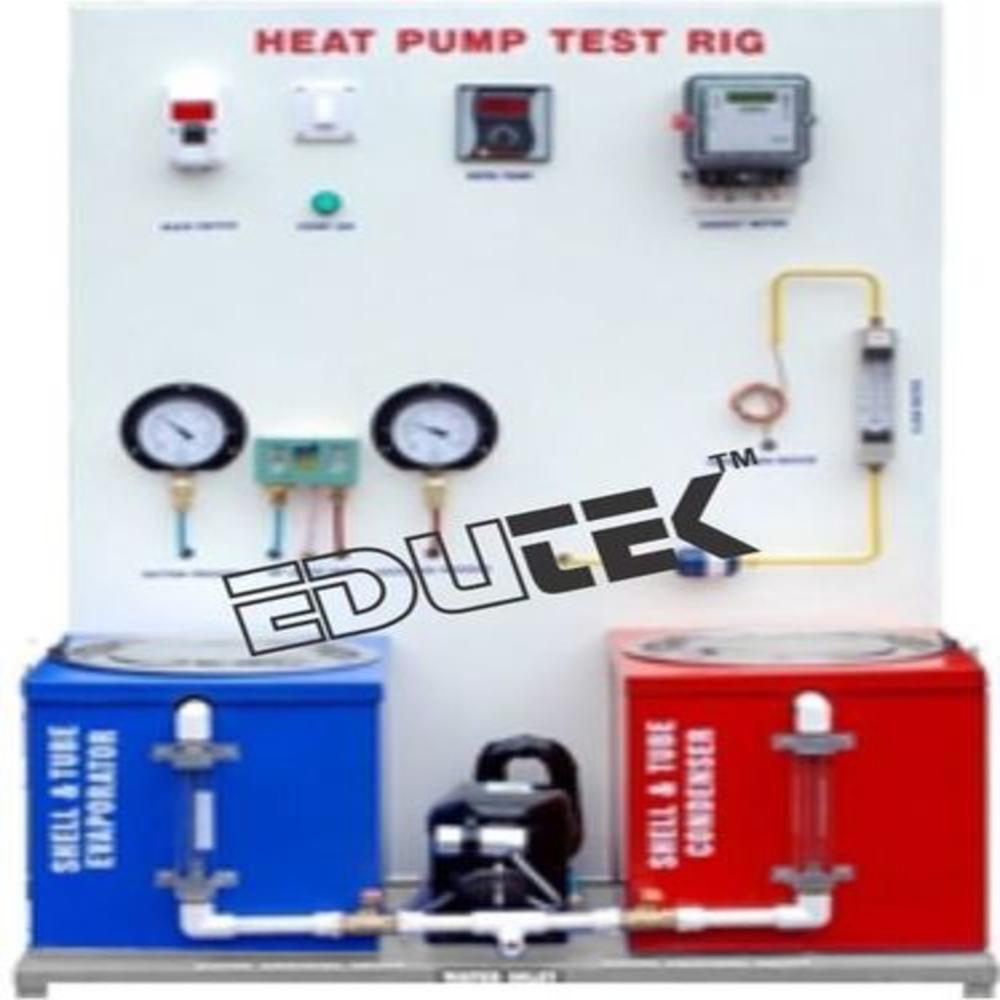

Heat Pump Trainer

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Heat Pump Trainer Specification

Dimension (L*W*H)
1620x790x1910 Millimeter (mm)

Warranty
1 year

Accuracy
100 %

Weight
192 Kilograms (kg)

Feature
Highly Efficient

Type
HEAT PUMP TRAINER

Usage
Laboratory

About Heat Pump Trainer

HEAT PUMP TRAINER

The heat pump circuit consists of a compressor, an evaporator with fan, a thermostatic expansion valve and a coaxial coil heat exchanger as condenser. All components are clearly arranged in the trainer.

The compressed refrigerant steam condenses in the outer pipe of the condenser and thereby discharges heat to the water in the inner pipe. The liquid refrigerant evaporates at low pressure in the finned tube evaporator and thereby absorbs heat from the ambient air.

The hot water circuit consists of a tank, a pump and the condenser as heater. For a continuous operation the generated heat is dissipated via an external cooling water connection. The cooling water flow rate is set via a valve and measured.

All relevant measured values are recorded by sensors and displayed. The simultaneous transmission of the measurements to a data recording software enables analysis and the representation of the process in the log p-h diagram. The software also displays the key characteristics variables of the process, such as the compressor pressure ratio and the coefficient of performance.

The unit shall perform the following experiments and investigations:

Learning Objectives / Experiments

design and operation of an air-to-water heat pump
representation of the thermodynamic cycle in the
log p-h diagram
energy balances
determination of important characteristic variables
compressor pressure ratio
ideal coefficient of performance
real coefficient of performance
dependence of the real coefficient of performance
on the temperature difference (air-to-water)
operating behaviour under load

Specification

Investigation of a heat pump with a water circuit as load
Refrigeration circuit with compressor, evaporator with fan, thermostatic expansion valve and coaxial coil heat exchanger as condenser
Hot water circuit with pump, tank and condenser as heater
Additional cooling via pipe coil in the hot water tank and external cooling water
Record of all relevant measured values and display directly at the location of measurement
Software for data acquisition via USB under Windows Vista or Windows 7

Technical Data

Compressor
Capacity: 372W at 7,2/32°C
Coaxial coil heat exchanger (condenser)
Refrigerant content: 0,55L
Water content: 0,3L
Finned tube evaporator
Transfer area: approx. 0,175m²
Pump
Max. flow rate: 1,9m³/h
Max. head: 1,4m
Hot water tank volume: approx. 4,5L

Measuring ranges

Pressure: 2x -1...15bar
Temperature: 4x 0...100°C, 2x -100...100°C
Power: 1x 0...6000W
Flow rate (water): 1x 0...108L/h
Flow rate (cooling water): 1x 10...160L/h

Dimensions and Weight

LxWxH: 1620x790x1910mm
Weight: approx. 192kg

Precise Laboratory Demonstration

The Heat Pump Trainer provides an effective and accurate way to demonstrate the working principles of heat pumps. With an impressive 100% accuracy rate, it is well-suited for laboratory settings where precise data and clear experimentation are essential for learning and research.

Engineered for High Efficiency

Designed for optimal energy efficiency, the Heat Pump Trainer minimizes energy consumption while delivering consistent performance. Its engineering ensures reliability and cost-effectiveness for educational institutions, making it a long-term investment for lab training.

Reliable and Durable Construction

Built with robust materials, the Heat Pump Trainer weighs 192 kg and measures 1620x790x1910 mm, making it both substantial and stable for frequent laboratory use. Its solid construction enhances durability and ensures it withstands regular handling by students and researchers.

FAQs of Heat Pump Trainer:

Q: How is the Heat Pump Trainer typically used in laboratory settings?

A: The Heat Pump Trainer is used to demonstrate heat pump principles, allowing students and researchers to observe and analyze heat transfer, efficiency, and thermodynamic cycles in a controlled laboratory environment.

Q: What are the key benefits of using this Heat Pump Trainer?

A: This trainer offers 100% measurement accuracy and high efficiency, providing reliable data and minimizing energy usage. It supports hands-on learning, making complex theoretical concepts more accessible to students.

Q: When should the Heat Pump Trainer be maintained or serviced?

A: Routine maintenance is recommended throughout its operational life, and in case of any issues, the product is backed by a 1-year warranty for repair or replacement, ensuring minimal downtime.

Q: Where is the Heat Pump Trainer manufactured and supplied from?

A: The Heat Pump Trainer is manufactured, supplied, and exported by a reputable company based in India, serving international and local markets.

Q: What is the process for installing the Heat Pump Trainer in a laboratory?

A: After delivery, the trainer should be positioned on a stable surface due to its weight (192 kg) and dimensions. Installation typically involves connecting it to power and following the user manual for calibration and operation.

Q: How does the trainer guarantee measurement and operational accuracy?

A: The system is designed with precision sensors and robust engineering, ensuring that all experiments conducted on the trainer yield results with 100% accuracy.
