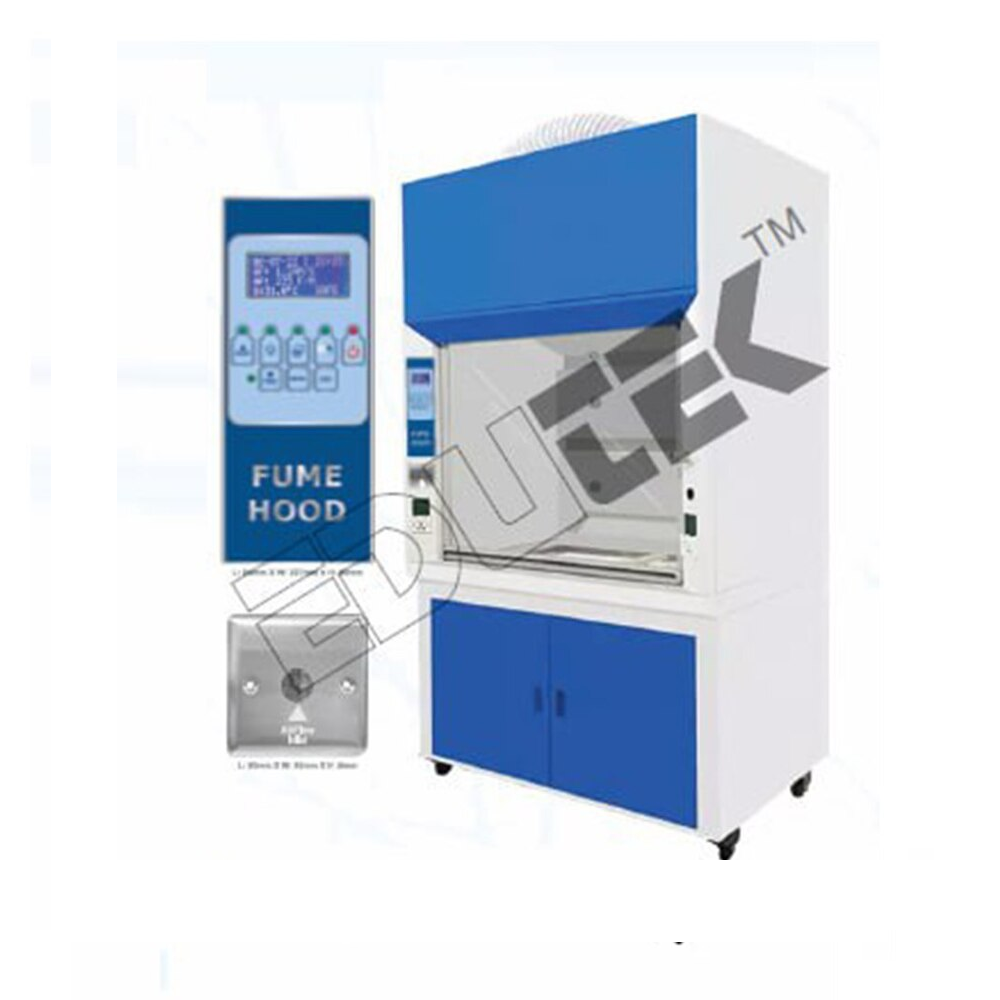

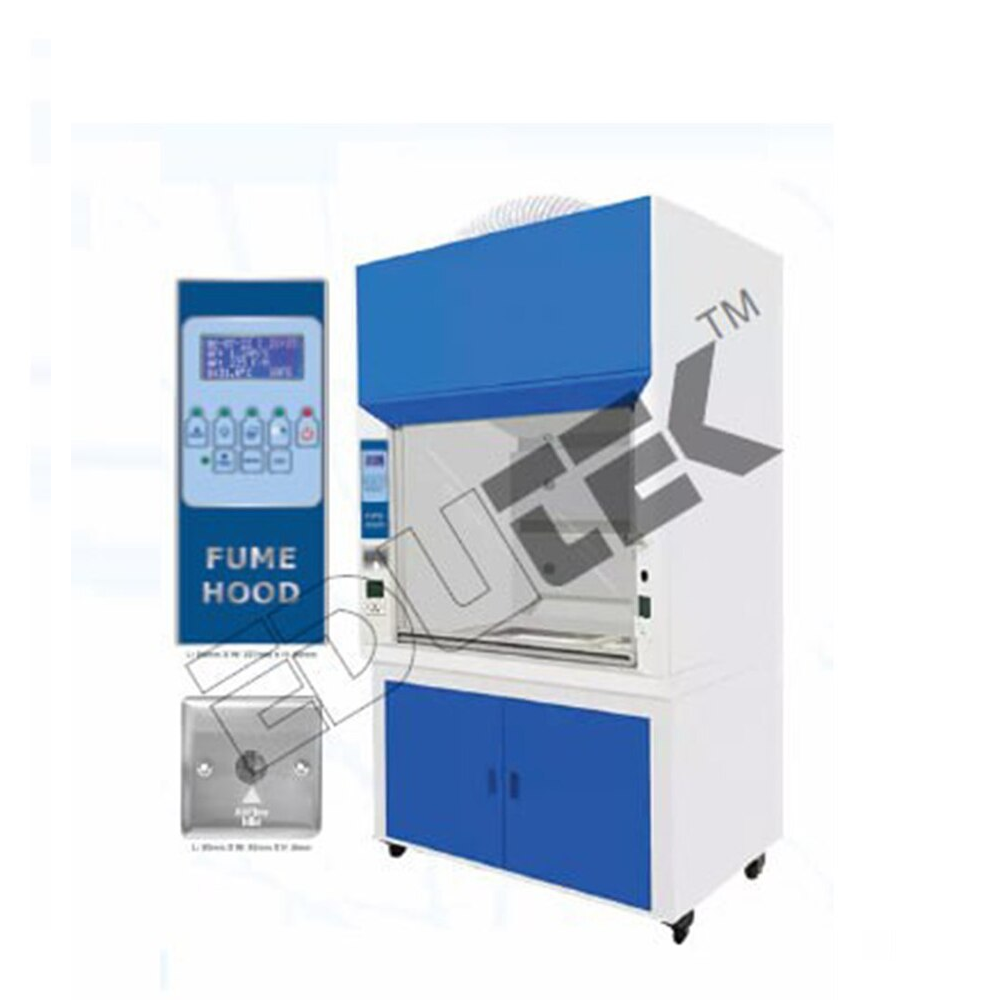

FUME HOOD

Name: FUME HOOD
Brand: EDUTEK INSTRUMENTATION
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FUME HOOD Specification

Temperature Range
Ambient to 100C Celsius (oC)

Automation Grade
Semi-Automatic / Manual

Core Components
Blower Motor, Filter, Sash, Control Panel

Frequency
50/60 Hz Hertz (HZ)

Voltage
220-240 V Volt (v)

Feature
Chemical resistant, Safety glass sash, Air flow monitor

Accuracy
3% for airflow %

Weight
250 KG/270KG Kilograms (kg)

Measurement Range
0-1000 CFM

Model No
ETC-72

Power Source
Electric

Warranty
1 YEAR

Equipment Materials
Mild Steel (MS) with epoxy / Stainless Steel

Type
Ducted / Recirculating

Usage
Laboratory chemical ventilation and containment

Display Type
Digital / Analog (as per model)

Dimension (L*W*H)
1000X800X2515 Millimeter (mm)

Exhaust System
Centrifugal blower, chemically resistant

Work Surface
Solid, chemical resistant (ceramic or epoxy resin)

Air Velocity
0.3-0.5 m/s

Safety Interlocks
Yes

Lighting
LED/Fluorescent

Installation Type
Floor-mounted

Color
White/Grey/Blue options

Sink & Tap
Optional

Front Sash Operation
Vertical sliding, toughened glass

Control System
Airflow monitor, alarm indicator

Material of Construction
Epoxy coated mild steel or stainless steel

Noise Level
<65 dB

FUME HOOD Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About FUME HOOD

FUME HOOD The primary goal of the Fume Hood is to protect operators and laboratory environment from exposure to infectious aerosol and toxic gas which may be generated from the reaction during experiment Fume Hood is used to protect lab environment and operator during general chemical applications It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion By installing proper filter it can also protect environment

Superior Chemical Resistance and Safety

Built using high-quality epoxy-coated mild steel or stainless steel, and featuring chemical-resistant surfaces, the ETC-72 ensures long-lasting performance in harsh laboratory environments. The vertical sliding toughened safety glass sash, combined with an advanced airflow monitoring and alarm system, provides users with a secure workspace and minimizes exposure to hazardous vapors.

Customizable to Fit Laboratory Needs

The fume hood offers customizable and standard dimension options (1000x800x2515 mm), various color choices (white, grey, blue), and different display types (digital or analog). With a choice between ducted or recirculating models and optional sink and tap, this unit seamlessly integrates into diverse laboratory workflows.

Efficient Operation and Low Noise

Equipped with a centrifugal, chemically resistant blower and precision airflow controls (3% accuracy), the ETC-72 maintains safe air velocities (0.3-0.5 m/s) while operating at noise levels below 65 dB. The inclusion of semi-automatic or manual automation grades improves operational flexibility without disturbing the laboratory environment.

FAQs of FUME HOOD:

Q: How does the ETC-72 fume hood ensure user safety during operation?

A: The ETC-72 is designed with safety interlocks, toughened glass vertical sliding sash, airflow monitors, alarm indicators, and chemical-resistant surfaces. These features work together to contain hazardous fumes and provide immediate alerts if airflow becomes insufficient.

Q: What materials are used in the construction of this laboratory fume hood?

A: The primary materials include epoxy-coated mild steel or stainless steel for the body, with a solid ceramic or epoxy resin work surface. The front sash is constructed from toughened safety glass, ensuring both durability and chemical resistance.

Q: When should I choose a ducted versus a recirculating fume hood model?

A: Ducted models are ideal for laboratories handling higher volumes of toxic chemicals, as they expel air outside the building. Recirculating units are better for settings with limited ductwork, filtering contaminants before returning air to the lab, suitable for less hazardous applications.

Q: Where can the ETC-72 fume hood be installed?

A: This model is floor-mounted and designed for installation in laboratories requiring chemical ventilation and containment, such as research institutions, academic labs, pharmaceutical facilities, and industrial labs across India and international markets.

Q: What is the process for operating the front sash and controlling airflow?

A: The front sash operates vertically with a smooth sliding mechanism made from toughened glass. Airflow is monitored via control systems, with digital or analog displays indicating velocity. Users are alerted through alarms if airflow falls below safe levels.

Q: How does the ETC-72 benefit laboratory workflows?

A: It offers effective containment of harmful fumes, customizable design to suit varied laboratory needs, energy-efficient lighting, low operating noise, and easy monitoring of air velocityall ensuring safer, more productive laboratory environments.

Q: What warranty and support does this fume hood include?

A: The ETC-72 fume hood is backed by a 1-year warranty. As an exporter, manufacturer, and supplier in India, comprehensive after-sales support and service are provided for all units sold.
