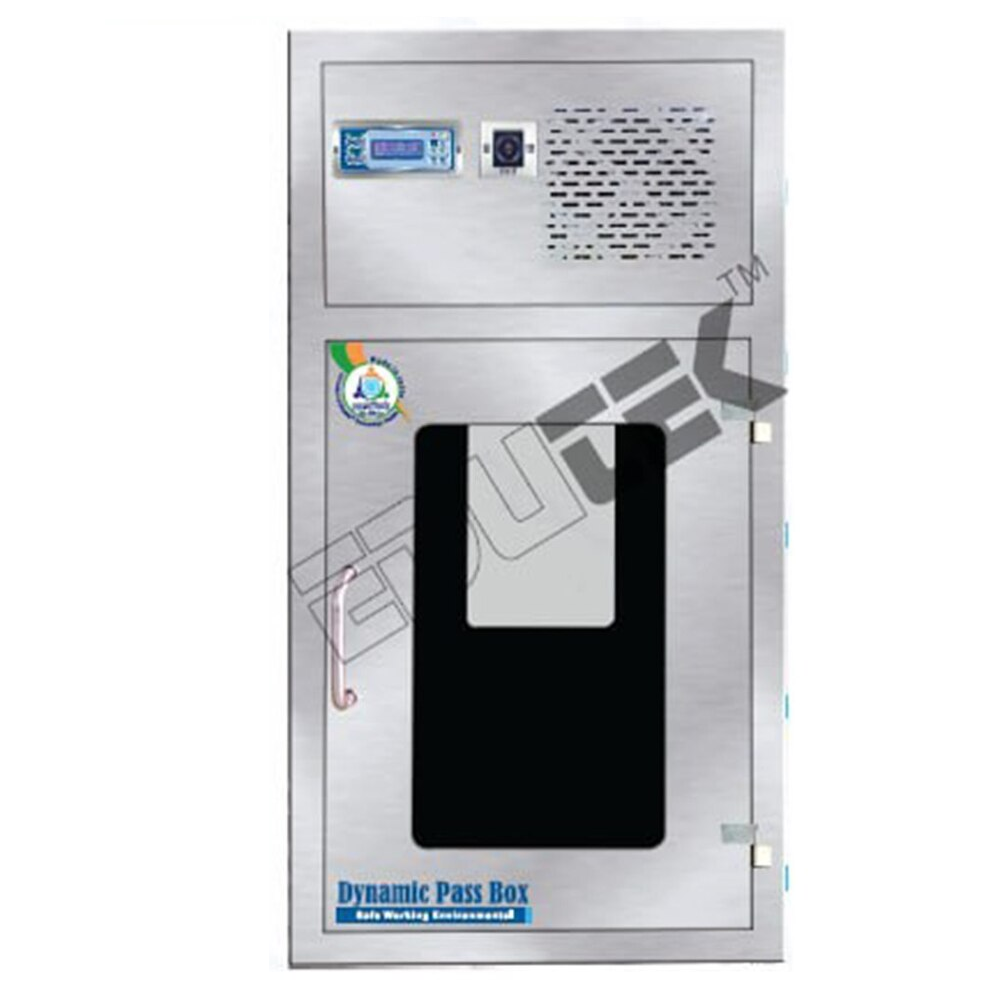

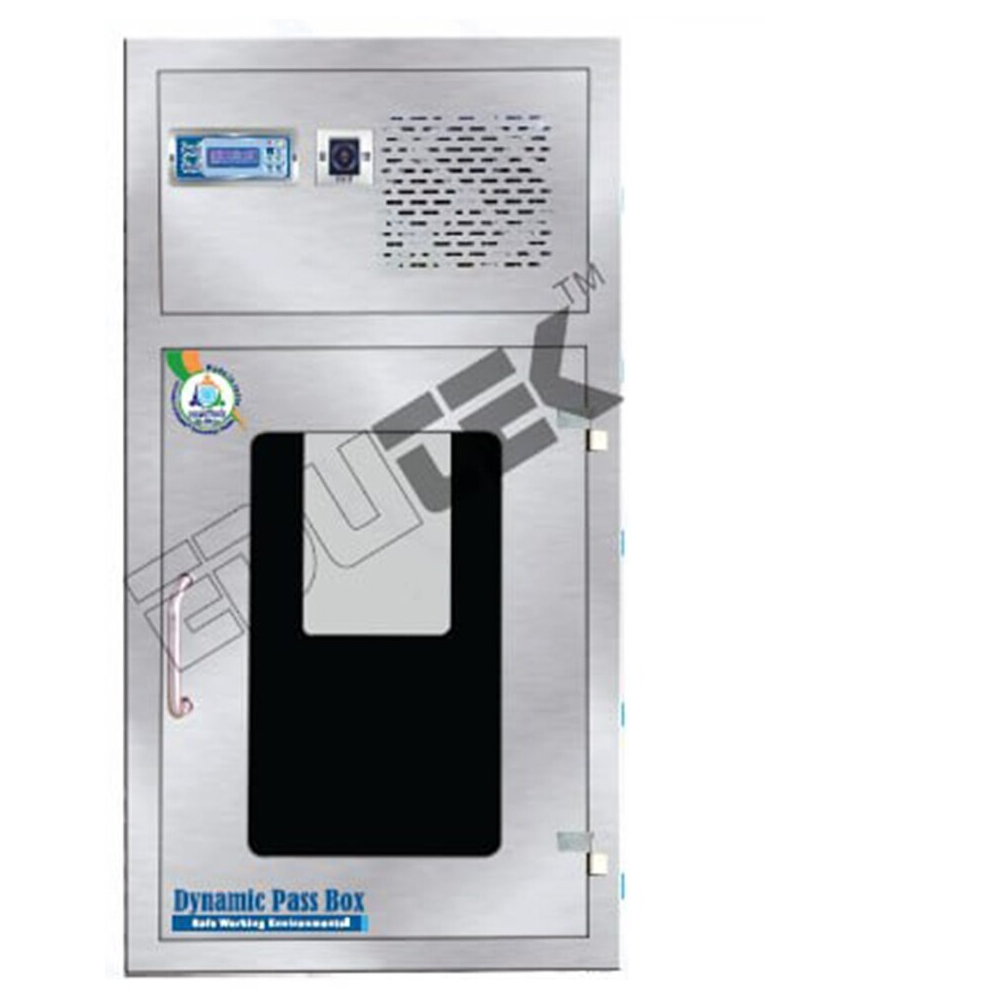

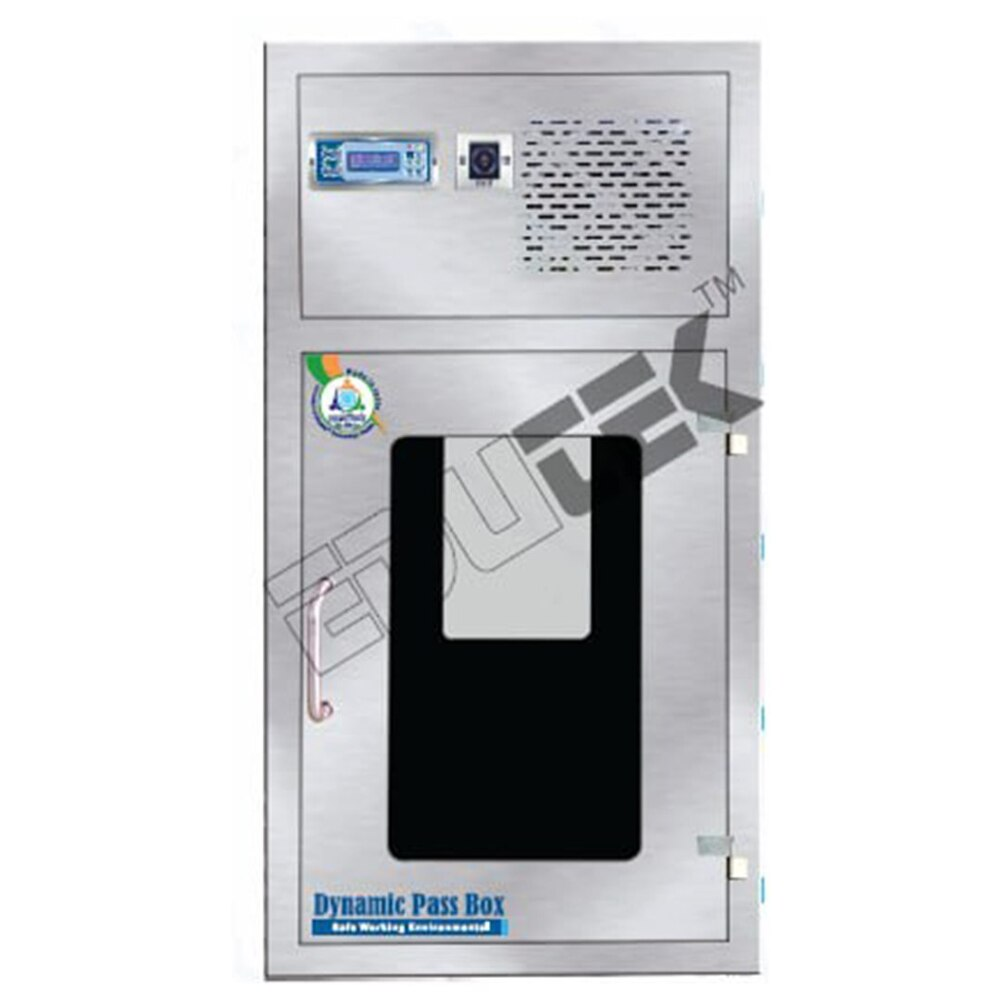

DYNAMIC PASS BOXES

Name: DYNAMIC PASS BOXES
Brand: EDUTEK INSTRUMENTATION
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DYNAMIC PASS BOXES Specification

Feature
Interlocking Doors, Audible/Visual Indicators, Smooth Operation

Measurement Range
Controlled Air Flow

Warranty
1 YEAR

Automation Grade
Automatic

Power Source
Electric

Frequency
50 Hz Hertz (HZ)

Temperature Range
Room Temperature to 60°C Celsius (oC)

Accuracy
±2% RH %

Core Components
HEPA Filter, UV Light, Blower, Control Panel

Capacity
55 Kg

Model No
ET-12058D

Voltage
230V AC Volt (v)

Equipment Materials
Stainless Steel 304/316

Type
Dynamic Pass Box

Usage
Pharmaceutical Cleanroom Applications

Display Type
Digital LED Display

Dimension (L*W*H)
660X570X580 Millimeter (mm)

Weight
Appx 55 kg Kilograms (kg)

Door Operation
Electromagnetic Interlocking

Air Velocity
0.450.05 m/s

Number of Doors
2 (Interlocked)

Installation Type
Floor Mounted/Wall Mounted

Surface Finish
Matt/Glossy Finish

Material Thickness
1.2 mm

Noise Level
<65 dB

Lighting
LED Internal Illumination

HEPA Filter Efficiency
99.97% @ 0.3 Micron

UV Lamp
254 nm, 15W

DYNAMIC PASS BOXES Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DYNAMIC PASS BOXES

DYNAMIC PASS BOXES It is widely used in the place where the clean air is needed, such as micro technology

biological laboratory pharmaceutical factory hospital food processing industry LCD electronic factory. Pass box is used to transfer goods between rooms of different clean levels of clean room It can reduce times of opening door, prevent the air convection between different rooms and minimize the pollution extent Features External size: 660X570X580 Internal size: 500X500X500 Material: 304 SS Interlock: Electronical Technical specification UV lamp: 8W 1 HEPA filter: Efficiency 99.999 at 0.3um Clean air speed 0.360.54m/s Gross weight 55

Advanced Contamination Control

Our Dynamic Pass Box excels at minimizing cross-contamination during material transfer between clean and process rooms. The integrated HEPA filter captures 99.97% of particles as small as 0.3 microns. Equipped with UV sterilization (254 nm, 15W), it effectively disinfects surfaces, ensuring compliance with rigorous cleanroom standardsessential for pharmaceutical, biotech, and lab environments.

User-Oriented Design & Operation

Operating the unit is streamlined with automatic electromagnetic interlocking doors, digital LED display, and audible/visual process indicators. The pass box accommodates both floor and wall-mounting, making it adaptable to various facility layouts. Its robust stainless steel construction (1.2 mm thickness) and finish options provide durability and easy cleaning, critical for maintaining hygiene and integrity.

Reliable Performance & Easy Maintenance

The ET-12058D pass box employs a powerful internal blower to sustain air velocity (0.450.05 m/s) and even air distribution, while remaining efficient and low-noise (<65 dB). Maintenance is simplified by accessible core components: HEPA filter, UV lamp, blower, and dedicated control panel. An informative LED display supports continual monitoring, helping to ensure optimal operation and quick troubleshooting.

FAQs of DYNAMIC PASS BOXES:

Q: How does the Dynamic Pass Box ensure contamination control during material transfer?

A: The Dynamic Pass Box uses a HEPA filter with 99.97% efficiency at 0.3 micron, along with UV germicidal lighting and interlocked doors. These features work together to prevent contaminants from passing between cleanroom spaces while materials are transferred.

Q: What materials are used in the construction of this pass box for cleanroom compatibility?

A: The pass box is made from high-grade Stainless Steel 304 or 316 with a 1.2 mm thickness and is available in either matt or glossy finish, offering both durability and easy cleaning for cleanroom compatibility.

Q: Where can the Dynamic Pass Box be installed within a facility?

A: This model is designed for flexible installation; it can be floor-mounted or wall-mounted to suit the layout and requirements of your cleanroom or pharmaceutical production facility.

Q: When should I use the UV lamp in the Dynamic Pass Box?

A: The 254 nm UV lamp (15W) should be used during non-transfer periods to sterilize the internal surfaces, effectively minimizing microbial contamination before the next transfer cycle.

Q: What process does the equipment follow when transferring materials?

A: The user places items inside the pass box, and the electromagnetic interlock ensures only one door opens at a time. Once closed, built-in filters and UV lamp maintain sterilization, and the digital LED panel provides process feedback with audible and visual indicators.

Q: How does the pass box benefit pharmaceutical cleanroom operations?

A: It significantly reduces the risk of cross-contamination, automates transfer protocols for consistency, and ensures regulatory compliance with features like HEPA filtration, controlled air flow, and UV disinfection.

Q: What is required to maintain the Dynamic Pass Box for optimal performance?

A: Regularly check and replace the HEPA filters, service the blower, test door interlocks, and ensure proper functioning of the UV lamp and LED display. Cleaning the stainless steel surfaces as per facility SOPs helps preserve hygiene and operational integrity.
