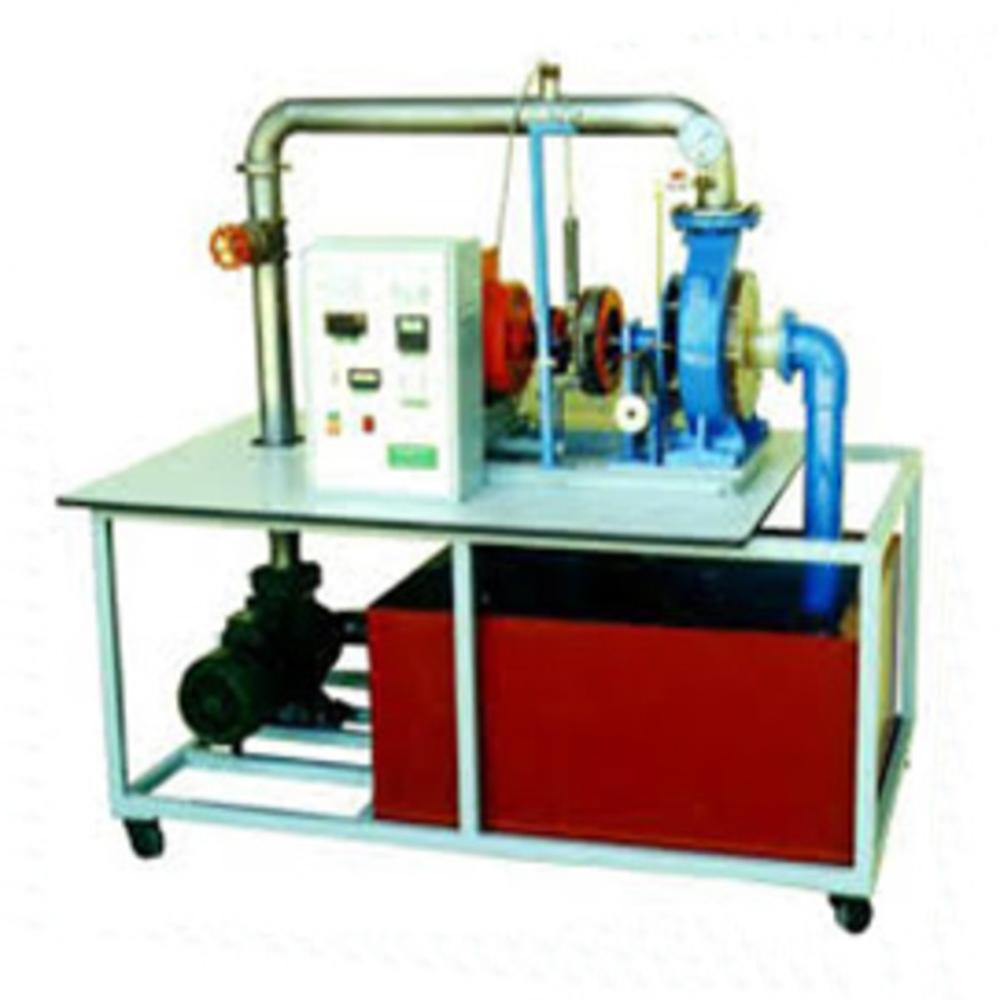

Francis Turbine Trainer

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Francis Turbine Trainer Specification

Measurement Range
Flow rate: 0-50 LPM; Pressure: 0-1 bar

Core Components
Turbine Assembly, Digital Indicators, Control Valves, Pump, Sump Tank

Warranty
1 year

Voltage
220-240V AC

Product Type
Hydraulic

Model No
FTT-2024

Accuracy
1% (flow and pressure measurement)

Automation Grade
Semi-Automatic

Feature
The transparent operating area of the turbine enables an optimal view of water flow.

Capacity
50 LPM (approx)

Frequency
50 Hz

Power Source
Electric

Temperature Range
0-50C

Equipment Materials
Stainless Steel, Acrylic, Mild Steel Frame

Type
Francis Turbine Trainer

Usage
Educational Laboratory, Fluid Machinery Experiments

Display Type
Digital

Dimension (L*W*H)
1500 x 900 x 1150 mm

Weight
Approx. 85 kg

Francis Turbine Trainer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Francis Turbine Trainer

FRANCIS TURBINE TRAINER

The unit enables examinations of the function and operating behavior of a Francis turbine.
The dimensions of the trainer guarantee realistic measured values.
The closed water circuit consists of a tank with optional cooling, a centrifugal pump and a flow control valve for adjusting the inlet pressure.
The transparent operating area of the turbine enables an optimal view of water flow, rotor and guide vanes during operation.
By adjusting the guide vanes the angle of attack, the cross-section and thus the output of the turbine are changed.
An asynchronous machine is used as a generator for loading the turbine.
A pump with variable speed via frequency converter provides for an energy efficient operation.
The measured values are displayed digitally and processed further on a PC.
The output data of the examined turbine are determined and represented by characteristic curves.

Specification:

Francis turbine
Hydraulic power: 2 kW at 1500 mint
Mechanical power: approx. 1,5 kW at 1500 mind
Rotor, 15 blades 10 guide vanes, angle of attack adjustable: 0...23°
Centrifugal pump, multistage variable speed power consumption: 5 kW flow rate about 900 L/min
Pump head about 40 m
230 V, 60 Hz, 3 phases
Complete with all required accessories.

Transparent Operating Area for Enhanced Learning

The unique transparent enclosure design of the Francis Turbine Trainer enables students and faculty to observe the water flow directly within the turbine assembly. This optimal visibility is invaluable for understanding dynamic flow behavior, enhancing the educational experience through real-time observation and improved conceptual clarity.

Reliable and Accurate Measurements

The trainer is equipped with a rotameter and digital sensors for flow, along with both bourdon gauge and electronic transducer for pressure readings. These tools deliver exceptional accuracy (1%) within a range of 050 LPM for flow and 01 bar for pressure, ensuring dependable data for experimentation and analysis.

Flexibility and Safety in Operation

Safety and operational ease are prioritized through features like overload protection, a fully integrated control panel with status indicators, and a sturdy, mobile powder-coated frame. The closed-loop water system with an inbuilt sump tank enables extended experiments without water loss or external plumbing.

FAQs of Francis Turbine Trainer:

Q: How does the Francis Turbine Trainer ensure accurate flow and pressure measurement?

A: This trainer employs rotameter and digital sensors for flow measurement, along with bourdon gauges and electronic transducers for pressure. These components provide measurement accuracy within 1%, allowing students and researchers to obtain reliable experimental data.

Q: What safety measures does the Francis Turbine Trainer include during operation?

A: The trainer features overload protection and a transparent enclosure that ensures safe turbine observation. The mobile, powder-coated frame adds stability, while the integrated control panel displays operational and safety indicators for secure and straightforward usage.

Q: When should regular maintenance be performed on the trainer?

A: Maintenance is recommended before each academic semester or after intensive laboratory usage, focusing on checking fluid levels, inspecting seals, and ensuring that electronic sensors and safety features are in proper working order.

Q: Where can the Francis Turbine Trainer be utilized?

A: This system is ideally suited for educational laboratories, particularly for fluid machinery and hydraulic experiments in engineering colleges and research institutions.

Q: What is the process for measuring flow and pressure in this setup?

A: Flow is measured using the integrated rotameter and digital sensors, while pressure is monitored via both bourdon gauges and electronic transducers. All readings are conveniently displayed on digital indicators located on the control panel.

Q: How does the transparent operating area benefit users?

A: The transparent enclosure allows users to directly observe water flow patterns and turbine operation, facilitating a clearer understanding of fluid dynamics, which is highly beneficial for educational demonstrations and practical learning.

Q: What is the primary usage benefit of the closed-loop water circulation system?

A: The closed-loop water circulation, supported by an inbuilt sump tank, minimizes water waste and obviates the need for external water sources during experiments, enabling efficient and sustainable laboratory operation.
