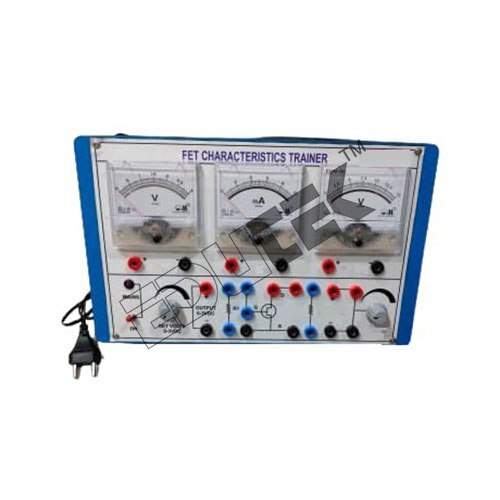

FET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Price 1700.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS Specification

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Features
Two Variable DC Regulated Power Supply ( 0 - 5V & 0 - 15V ) Three Square Meter ( 5V , 5 mA / 15 mA , 15V )

Power Supply
Power Supply ( 0 - 5V & 0 - 15V )

Product Type
FET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Dimension (L*W*H)
Cabinet Size(mm): 330 mm x 205 mm x 85 mm Millimeter (mm)

Function
FET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Warranty
1 Year

FET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About FET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Specification:

FET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Two Variable DC Regulated Power Supply ( 0 - 5V & 0 - 15V )

Three Square Meter ( 5V , 5 mA / 15 mA , 15V )

Power Requirement: 220V AC 10%, 50Hz

Cabinet Size(mm): 330 mm x 205 mm x 85 mm

Comprehensive FET Analysis Solution

This apparatus allows users to effectively study the static and dynamic characteristics of FETs, essential for electronics engineering curricula and research. It integrates all necessary measuring tools within a compact cabinet, making it highly suitable for both academic and professional laboratory environments. The device simplifies FET experimentation, ensuring consistent and precise results for a wide range of tests.

Reliable and User-Friendly Operation

Equipped with two variable DC power supplies and three square meters, the apparatus offers flexible configuration to meet various testing requirements. Its intuitive design enables easy operation for both beginners and advanced users, minimizing setup time and enhancing learning outcomes while ensuring safety and reliability in every session.

Durability and Quality Assurance

Constructed on a robust aluminum panel, this apparatus is built for longevity, resisting corrosion and physical damage. Its standardized cabinet size allows convenient placement and storage. With a one-year warranty and backed by experience as an exporter, manufacturer, and supplier in India, customers are assured of top-tier product quality and support.

FAQ's of FET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS:

Q: How do I use the FET Characteristics Apparatus for measuring FET parameters?

A: To measure FET parameters, connect the FET to the provided terminals according to the experiment manual, set the required voltages using the variable DC power supplies (0-5V or 0-15V), and monitor readings through the square meters. Follow all safety instructions and adjust values as needed for your specific experiment.

Q: What are the main applications of this FET Characteristics Apparatus?

A: This apparatus is primarily used in engineering electronics laboratories for studying the output and transfer characteristics of Field Effect Transistors. It is ideal for educational demonstrations, practical coursework, and foundational research in semiconductor devices.

Q: When should the apparatus be calibrated or serviced?

A: Routine calibration is recommended at the start of each academic session or before critical experiments. If any square meter readings or voltage outputs appear inconsistent, the apparatus should be serviced by qualified personnel to maintain accuracy and safety.

Q: Where can this apparatus be used effectively?

A: This device is best utilized in college and university engineering laboratories, research institutions, and training centers where electronic circuit analysis and FET studies are part of the curriculum or experimental workflow.

Q: What are the benefits of the aluminum panel construction for this apparatus?

A: The aluminum panel enhances durability, provides resistance to corrosion, and ensures a stable platform for precise measurements. This construction also contributes to the long lifespan and reliability of the device, even in rigorous laboratory settings.

Q: How does the apparatus ensure measurement accuracy?

A: The integrated square meters (for voltage and current) and regulated DC power supplies ensure precise and repeatable measurements during experiments. The straightforward layout aids users in achieving accurate results with minimal operational complexity.
