Electronic Control Trainer

Name: Electronic Control Trainer
Brand: EDUTEK INSTRUMENTATION

Get a Price/Quote

MOQ : 1 Piece

Electronic Control Trainer Specification

Power Source
230V AC supply

Measurement Range
0-100 Units

Feature
Highly Efficient

Automation Grade
Semi Automatic

Temperature Range
Ambient to 50 C Celsius (oC)

Frequency
50 Hz Hertz (HZ)

Core Components
Microcontroller, Relay, Sensors, Switches, Digital Display

Accuracy
100 % %

Voltage
230V AC Volt (v)

Equipment Materials
Powder Coated Metal & High-Grade Plastic

Type
Electronic Control Trainer

Usage
Laboratory

Display Type
Digital Panel Display

Dimension (L*W*H)
400 mm x 300 mm x 150 mm Millimeter (mm)

Weight
Approx. 8 kg Kilograms (kg)

Power Consumption
Less than 15W

Control Module
Integrated with multifunctional test points

Experiment Capability
Supports over 15 experiment modules

Operation
Manual & auto modes supported

Learning Scope
Fundamental to advanced electronic control circuits demonstration

Connectivity
Banana jacks and terminals for external connections

User Manual
Detailed experiment procedures included

Protection
Fuse and overload protected

About Electronic Control Trainer

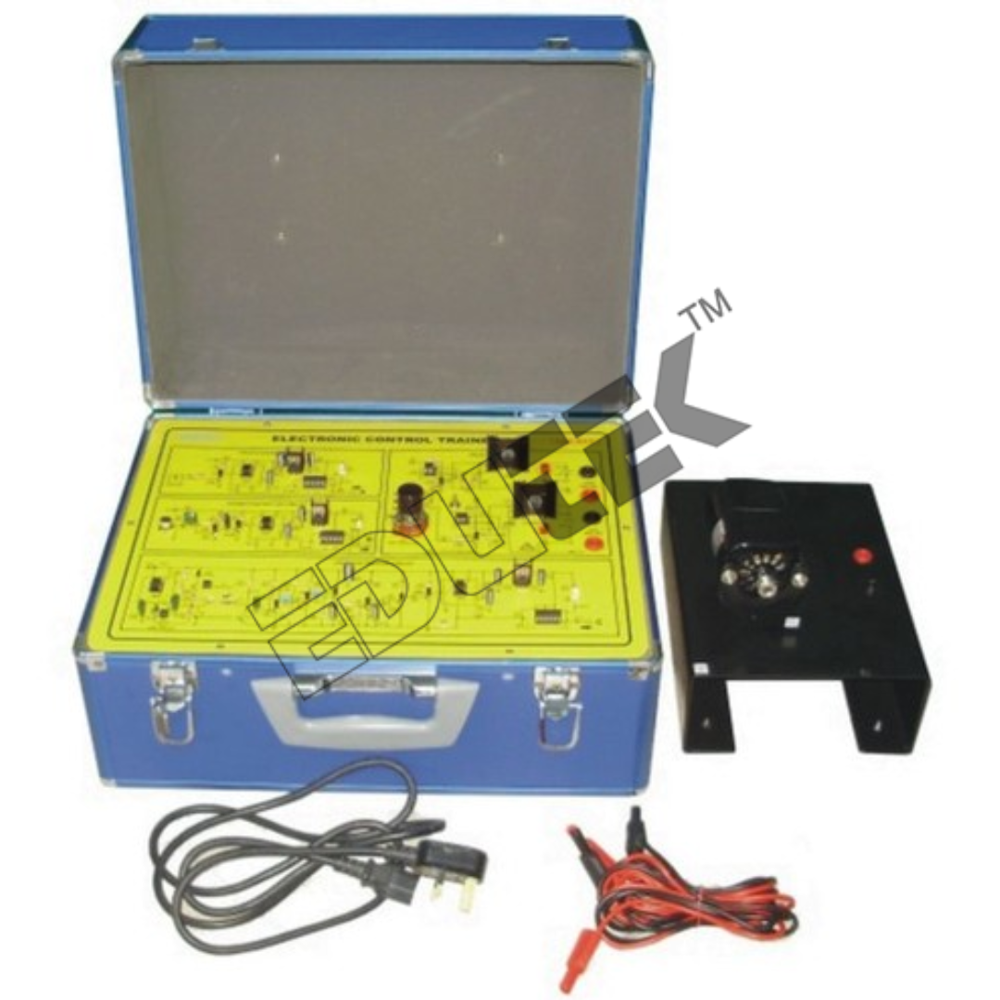

ELECTRONIC CONTROL TRAINER

Edutek Instrumentation are the Best Manufacturer and Exporter Company in India trainer provides a comprehensive course on Solid State Relays (SSR) and their applications. SSR's are typically used as the modern replacement to conventional electromagnetic relays. SSR's generally provide more flexibility in their control applications and easily combine low voltage and high voltage circuits working in conjunction with each other

Education Objectives:

A mode selection switch is used to determine which low voltage circuit will control the SSR. The SSR will then be turned off or on by this circuit.
The SSR has an output of 220-240 VAC, single phase, 50 Hz, 16 amp and can control electric motors, lights or any other electrical device.
Experiments covers the basic types of semiconductors, details on the touch control switch, details on the construction of the sound control switch, details on the Photo-Optical switch, comparison of

Versatile Experimentation and Learning

Designed to cover a broad spectrum of electronic control circuit demonstrations, over 15 experiment modules. Its multifunctional test points provide ample flexibility for students and engineers exploring both fundamental and advanced concepts.

Efficient and Reliable Performance

Equipped with robust protection features such as fuses and overload safeguards, this trainer ensures secure operation. The powder-coated metal and high-grade plastic construction offer durability, while the digital panel display and microcontroller deliver precise readings.

User-Centric Design

comes with a detailed user manual guiding experiment procedures, further enhanced by banana jacks and terminal connectivity for ease of external integration. The device operates safely on standard 230V AC supply, consuming less than 15W of power.

FAQs of ELECTRONIC CONTROL TRAINER:

Q: How does the ELECTRONIC CONTROL TRAINER facilitate hands-on learning in laboratory settings?

A: The trainer is equipped with multifunctional test points and supports more than 15 experiment modules, allowing users to set up and analyze a wide array of control circuit scenarios. Its manual and automatic modes accommodate both guided and independent exploration.

Q: What components are included in the model and what experiments can it perform?

A: features core components like a microcontroller, relay, sensors, switches, and a digital display. It enables demonstrations ranging from basic electronic control circuits to advanced automation setups, suitable for educational and applied research.

Q: When should fuse and overload protection features be utilized with this trainer?

A: The fuse and overload protection operate automatically, ensuring the trainer remains safe during any malfunction or excessive load during experiments. These protections are always active, safeguarding the device and users during operation.

Q: Where can be utilized and who is the ideal user?

A: is primarily intended for laboratory use in educational institutions, research facilities, and technical training centers. Ideal users include students, educators, and professionals looking to deepen their understanding of electronic control systems.

Q: What is the process for connecting external devices to the ELECTRONIC CONTROL TRAINER?

A: External devices or sensors can be easily connected using the trainers banana jacks and terminals. The user manual provides detailed procedures for safe and effective integration during experimental setups.

Q: How does ECT-01 ensure accurate measurements and reliable operation?

A: A digital panel display presents precise parameter readings, and the unit is calibrated for 100% measurement accuracy. Durable construction and robust electronic components further contribute to consistent and reliable performance.

Q: What are the main benefits of using the ELECTRONIC CONTROL TRAINER?

A: Users benefit from comprehensive training on electronic control circuits, exposure to both manual and automatic modes, enhanced safety features, efficient power consumption, and detailed instructional support, making laboratory exercises more effective and engaging.
