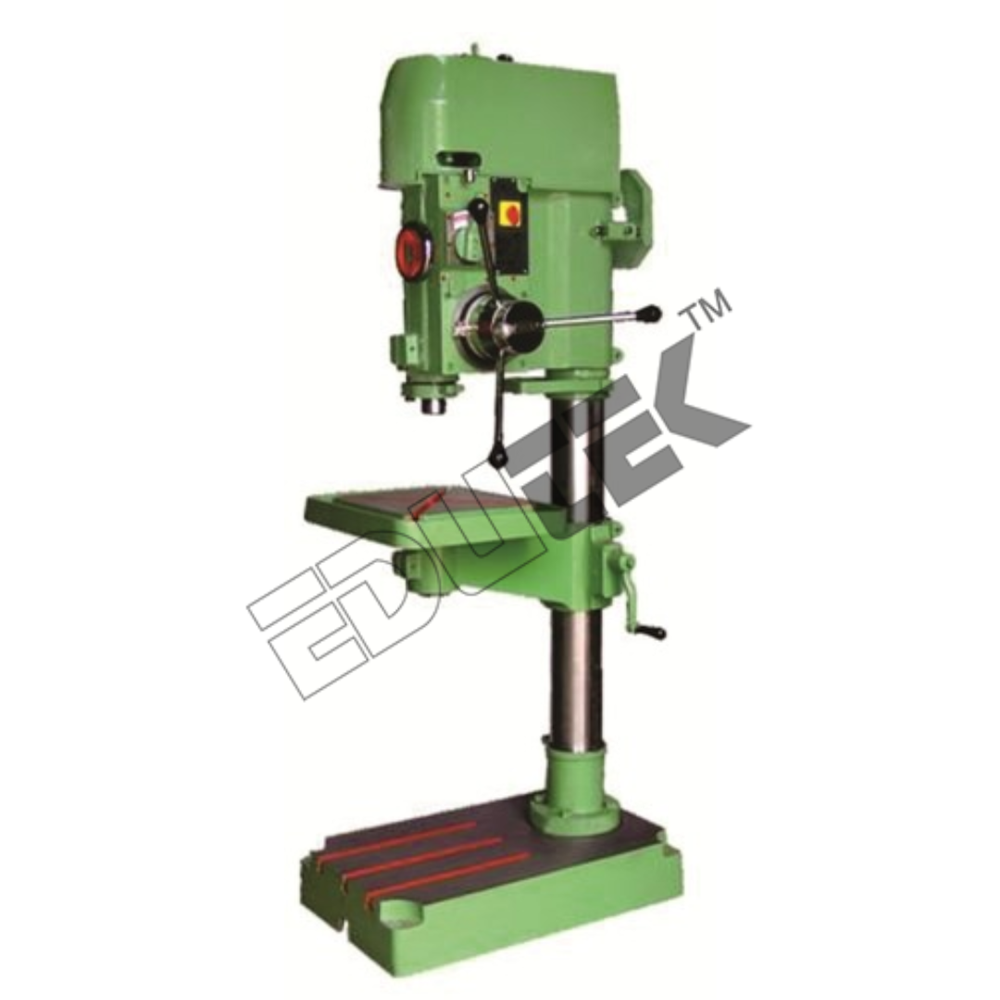

Pillar Drill

Get a Price/Quote

MOQ : 1 Piece

Pillar Drill Specification

Test Range
Drilling Capacity 13 mm

Specimen Size
Maximum Drill Diameter 13 mm

Application
Drilling holes in metal, wood, plastic and other solid materials

Automation Grade
Manual

Accuracy
0.05 mm

Measuring Range
Up to 13 mm drilling

Display Type
Analog Depth Gauge

Frequency
50 Hz

Operating Voltage
230V AC

Humidity
85% RH (Recommended for operation)

Mounting Type
Floor or Bench Mounted

Features
Heavy-duty build, Adjustable table, Chuck guard, Belt-driven speed change

Power Supply
230V AC, 50 Hz

Interface Type
Manual Operation

Max Height
900 mm

Equipment Type
Pillar Drill Machine

Temperature
5C40C Operating Range

Response Time
Instantaneous mechanical

Usage
Workshop, Industrial, Educational

Capacity
13 mm chuck size

Machine Weight
Approximately 75 kg

Test Speed
Variable, 702500 RPM

Test Stroke
120 mm

Control Mode
Manual

Max Distance from Spindle to Base
500 mm

Column Diameter
60 mm

Noise Level
< 75 dB

Drill Head Adjustment
Vertical Adjustable

Distance from Spindle to Column
180 mm

Base Size
350 mm x 225 mm

Table Size
200 mm x 200 mm

Spindle Taper
MT2

Spindle Travel
120 mm

Chuck Type
Keyed Chuck

Motor Power
0.5 HP to 1 HP

Pillar Drill Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Pillar Drill

PILLERDRILL

Voltage : 220V
Phase : single
TableSize : 300mm
Motorpower : 1hp
Spindleto column : 190mm
Spindletravel : 80mm (max)
Chuckto table : 668mm (max)
Chuckto base : 1154mm (max)
Dimension : 1635x365x610 mm
Pulleysystem : 12 speed
Cam-levermechanism

Versatile and Heavy-Duty Design

This pillar drill is built for durability and adaptability, making it suitable for heavy-duty tasks in workshops, industries, or educational settings. Its robust column and solid base provide stability during operation, while the floor or bench mounting options offer installation flexibility. The adjustable drill head and table allow for precise positioning, accommodating various workpiece sizes and materials.

Precision Meets Performance

Achieve exceptional drilling accuracy with an analog depth gauge and instantaneous mechanical response. The MT2 spindle taper and keyed chuck secure the drill bit, ensuring consistent results up to 0.05 mm accuracy. The variable speed function (702500 RPM) caters to multiple material types and thicknesses, optimizing each drilling operations efficiency and finish.

Safe and User-Friendly Operation

Designed for manual control, this machine features a chuck guard and low noise output (<75 dB), prioritizing operator safety and comfort. The belt-driven speed change mechanism and ergonomic controls allow seamless speed selection and adjustment of the drill head, making it accessible for both seasoned professionals and trainees alike.

FAQs of Pillar Drill:

Q: How do I adjust the drilling depth on this pillar drill machine?

A: The machine is equipped with an analog depth gauge, allowing you to set and monitor the precise drilling depth. Adjust the spindle travel up to 120 mm using the vertical adjustable drill head for accurate, consistent results.

Q: What materials can I safely drill using this machine?

A: This pillar drill is designed for drilling holes in metal, wood, plastic, and various other solid materials. The variable speed and 13 mm chuck capacity provide flexibility to handle different material hardness and project requirements.

Q: When should I use the variable speed feature?

A: Utilize the variable speed range (702500 RPM) to match the material type and drill bit size. Lower speeds are ideal for metals and larger bits, while higher speeds suit wood, plastics, or smaller diameter drills for smoother, cleaner holes.

Q: Where can I install or mount this pillar drill?

A: The machine is engineered for flexible placement, offering both floor and bench mounting options. Ensure installation in well-ventilated, dry environments with operating temperatures between 5C40C and humidity below 85% RH for optimal performance.

Q: What is the process for changing drill bits and adjusting speed?

A: To change drill bits, use the keyed chuck to securely loosen and tighten the bit. Belt-driven speed adjustment is manual; follow the manufacturers guide to select the appropriate belt position for your desired RPM range.

Q: How does the analog depth gauge benefit my drilling operations?

A: The analog depth gauge enables instantaneous mechanical readouts, ensuring each drilled hole matches the required depth with 0.05 mm accuracy, thus improving the repeatability and precision of your work.

Q: What are the advantages of using this pillar drill in industrial or educational settings?

A: It offers robust construction, easy manual controls, variable speed performance, and high accuracy, making it suitable for both heavy-duty industrial uses and student training in technical workshops.
