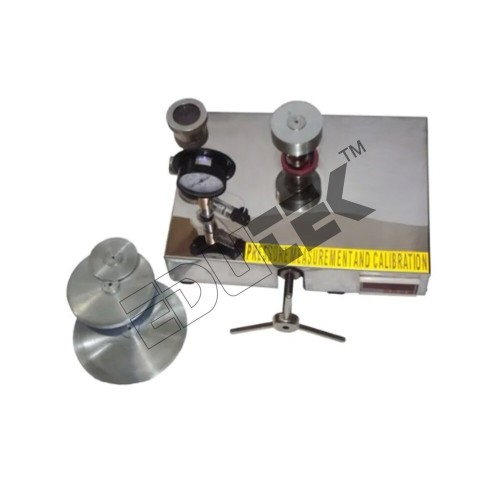

DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS

DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS

MOQ : 1 Piece

DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS Specification

  • Automation Grade
  • Manual
  • Measuring Range
  • 0 40 kg/cm
  • Interface Type
  • Mechanical connection
  • Humidity
  • Up to 80% RH (non-condensing)
  • Response Time
  • Immediate (Static Weight)
  • Number of Specimens
  • Single Gauge
  • Temperature
  • 10C to 45C
  • Product Type
  • DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS
  • Specimen Size
  • Standard Pressure Gauge Adapter
  • Accuracy
  • 0.25% of reading
  • Gas Pressure
  • N/A (uses Hydraulic Oil)
  • Max Height
  • 500 mm
  • Features
  • Corrosion-resistant construction, Easy operation, High stability weights
  • Power Supply
  • Not required (Manual)
  • Hardness
  • Weights: 60 HRC (Approx.)
  • Display Type
  • Analog
  • Usage
  • Engineering Testing Equipment
  • Application
  • Engineering Testing Equipment
  • Port Size
  • 1/2 inch BSP
  • Mounting Type
  • Bench-mounted
  • Test Range
  • Up to 40 kg/cm
  • Resolution
  • 0.1 kg/cm
  • Capacity
  • Up to 40 kg/cm
  • Machine Weight
  • Approx. 35 kg
  • Test Speed
  • Manual operation
  • Test Stroke
  • Up to 25 mm
  • Control Mode
  • Manual
  • Equipment Type
  • Pressure Gauge Calibration Apparatus
  • Material of Construction
  • Stainless steel / Brass
  • Finish
  • Powder-coated, rust resistant
  • Weight Set Increments
  • 2.5, 5, 10, 20 kg/cm2
  • Base Plate Dimension
  • 350 mm x 350 mm
  • Standard Accessories
  • Weight set, Testing adaptors, Oil Reservoir, Instruction Manual
  • Piston Diameter
  • 10 mm
  • Safety Measures
  • Leak-proof operation, Overpressure protection valve
  • Oil Medium
  • Hydraulic oil, usually SAE 40
  • Gauge Compatibility
  • Bourdon Tube, Diaphragm & Capsule Gauges


DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Packaging Details
  • Carton Box, Export Quality also Available
  • Main Export Market(s)
  • Asia, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001, CE


About DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS

Specification:

DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS

Deadweight testers are the basic primary standard used worldwide for the accurate calibration of pressure gauges, pressure transducers etc.

The equipment is self-contained and portable so it may be used in lecture theatre demonstrations or as a master calibrator for the laboratory.

The instrument combines a low and high-pressure range provided by two pistons of different effective area.

Calibration is accurate to within 0.025% of reading.

A laboratory calibration certificate is supplied for each piston together with a traceable certificate of over all accuracy.

The pressure in the system is produced by means of a capstan-operated hydraulic ram balanced by dead weight acting upon a piston of known area.

Oil is used as the hydraulic fluid. The pressure developed is applied to the gauge that is to be calibrated.

A spirit level and adjustable feet are provided to enable the operator to level the instrument.

A flotation indicator mounted on the top plate removes the guesswork when floating the piston.

The instrument is supplied complete with necessary weights and a fitted carrying case.

1/8, 1/4, 3/8, 1/2 inches BSP and NPT female adaptors are included together with spare seals and a quantity of oil.



Reliable Calibration Performance

This apparatus delivers stable and highly accurate calibration for pressure gauges used in engineering applications. With an immediate response time and a measuring range up to 40 kg/cm, technicians benefit from confident and repeatable results during routine gauge verification. Compact bench-mounted design supports efficient workflows.


Superior Materials & Safety Features

Built with stainless steel and brass, the equipment withstands corrosion and daily operational rigors. Safety is ensured through leak-proof operation and an integrated overpressure protection valve. The powder-coated finish further protects the apparatus, making it suitable for environments with up to 80% relative humidity and temperatures ranging from 10C to 45C.

FAQs of DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS:


Q: How do I operate the DEAD WEIGHT PRESSURE GAUGE TESTER APPARATUS for gauge calibration?

A: Simply mount your pressure gauge using the provided adaptors, select the desired weights in increments up to 40 kg/cm, and manually operate the piston to apply pressure. The analog display provides immediate and accurate readings.

Q: What types of gauges can be tested with this apparatus?

A: This equipment is compatible with Bourdon tube, diaphragm, and capsule pressure gauges, accommodating standard specimen sizes and connections through its mechanical interface.

Q: Where is this tester best used?

A: The tester is especially suited for engineering laboratories, calibration facilities, and manufacturing units, thanks to its bench-mounted design and rust-resistant construction. It is widely used by exporters, manufacturers, and suppliers in India.

Q: What benefits does the corrosion-resistant design offer?

A: Corrosion-resistant stainless steel and brass construction, along with a powder-coated finish, enhance durability against moisture and harsh environmental conditions, ensuring reliable long-term operation in varied industrial settings.

Q: When should I consider recalibrating my pressure gauge using this apparatus?

A: Calibration should be performed periodically, according to the manufacturers recommendations, or whenever you notice gauge accuracy drift. Regular calibration using this apparatus maintains measurement confidence and compliance with engineering standards.

Q: What safety features are included with the tester?

A: The device incorporates leak-proof seals and an overpressure protection valve to prevent accidental oil spills and safeguard operators from exposure to excessive pressures during testing.

Q: What is the process for changing weights and testing different pressure ranges?

A: Weights can be easily added or removed in increments of 2.5, 5, 10, and 20 kg/cm to achieve your desired test pressure. Manual control allows adjustment up to 40 kg/cm, with instant analog readings provided through the gauge display.
