Compression Testing Machine

Get a Price/Quote

MOQ : 1 Unit

Compression Testing Machine Specification

Operate Method
Hydraulic Pressure: A specimen is placed between platens; the pump applies pressure until failure, and the peak load is digitally recorded

Product Type
Material Strength Testing Machine

Automation Grade
Semi-Automatic

Measurement Range
0-2000 kN

Usage
Assesses the quality and load-bearing capacity of concrete

Capacity
2000 kN Kg

Classification
Civil Engineering / Structural Testing

Voltage
220-240V Volt (v)

Application
High-rise buildings, bridges, and infrastructure projects

Accuracy
1% %

Feature
High Accuracy, Rugged Construction

Power Source
Electric

Core Components
Load Frame, Hydraulic Pump, Pressure Gauge

Frequency
50 Hz Hertz (HZ)

Temperature Range
0 C to 60 C Celsius (oC)

Equipment Materials
Mild Steel

Type
Compression Testing Machine

Display Type
Digital

Dimension (L*W*H)
950 mm x 520 mm x 1120 mm Millimeter (mm)

Weight
Approx. 350 kg Kilograms (kg)

Standards Compliance
IS 516, BS 1881, ASTM C39/C39M

Piston Stroke
50 mm

Platen Size
205 mm diameter

Display Resolution
0.1 kN

Operating Temperature
0C to 60C

Max Ram Travel
60 mm

Load Indication
Digital & Analog

Hydraulic Oil Capacity
15 Litres

Safety Features
Overload protection

Frame Type
Channel Type

Compression Testing Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA)

Delivery Time
2 Week

Sample Available
No

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, North India, East India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Compression Testing Machine

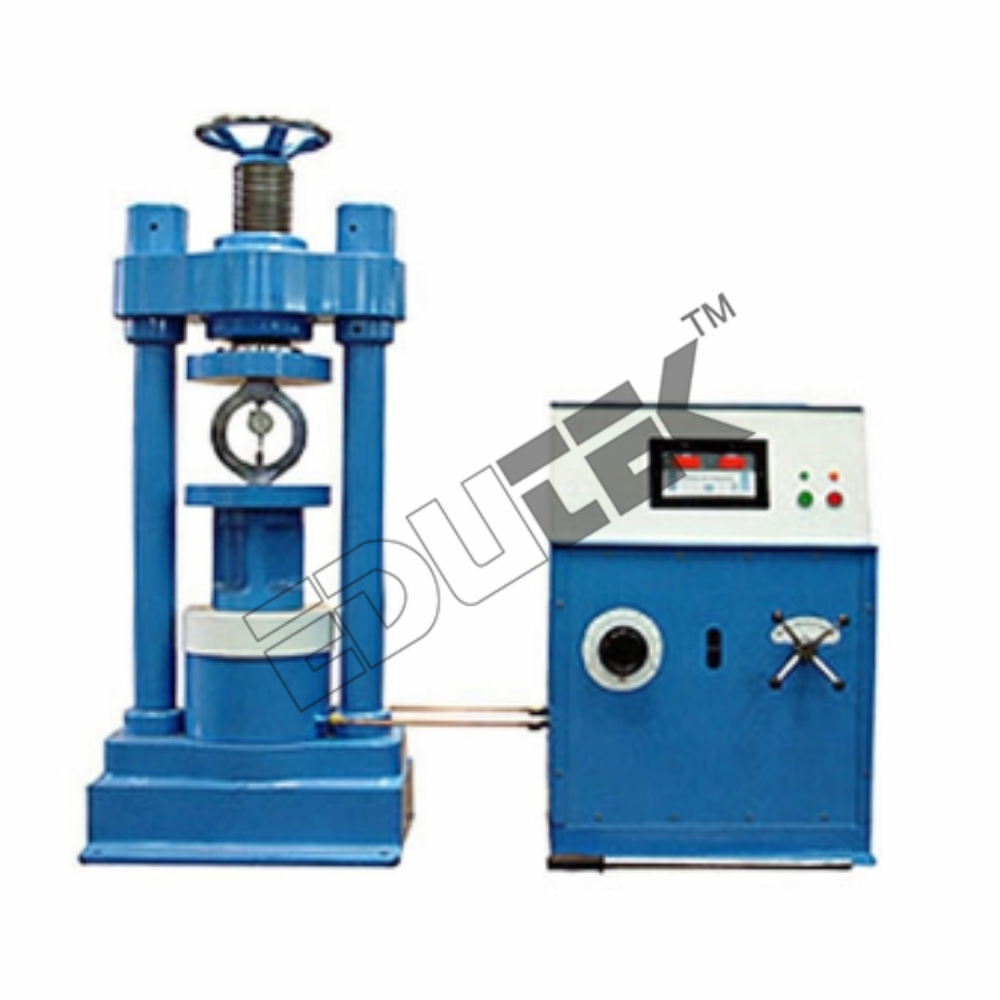

Compression Testing Machine

Compression Testing Machine Electrically-cum-hand operated.
The machine embodies an Hydraulic system designed to meet the requirement of Indian

Standards Specification :
516-1959 for compression tests on concrete Cubes upto 5cm x 5cm x 5cm 7.06cm x 7.06cm x 7.06cm, 10cm x 10cm x 10cm and 15cm x 15cm and also concrete Cylinders upto 10 x 20cm, 15 x 30 cm height

Loading Unit :

The hydraulic jack of is fixed to the base. The upper platen has got a self-aligning action and is attached to a screw, which passes thru the cross-head plate, and can be raised or lowered for initial clearance adjustment. The lower platen rests on the jackram and is positioned with the help of a centering pin. Loading is accomplished by the upward movement of the lower platen.
A dust cover is provided on the jack to prevent any dust from going into the cylinder. A spacer with a centering locating pin is provided to test small specimens. The lower and upper platens of the machine are hardended , ground and polished. Guidelines are marked on the lower platen to keep the specimen coaxial with the hydraulic jack.

Pumping Unit :

The motorised pumping unit, which is housed in an elegant console is of double plunger type and is driven by a single phase 220/440 Volts 50 cycles electric motor. The pumping unit is a separate unit connected to the jack by means of a Rubber Hose Pipe. A junction box is suitable fixed to connect the motor to the mains thru a push button starter.Hose Pipe. A junction box is suitable fixed to connect the motor to the mains thru a push button starter. The pumping unit is fitted with a 20 cm diam dial hydraulic Pressure Gauge with 100 division i.e. calibrated against N.C.B. Tested proving ring. A max red pointer is provided to facilitate taking readings after failure of the specimen.

High Precision Testing
Engineered for high accuracy (1%), the CTM-2000D ensures reliable measurement and documentation of compressive strength in concrete and cement specimens. Its high-resolution digital and analog displays facilitate precise monitoring throughout the testing process.

Rugged Construction & Safety
Constructed from durable mild steel with a channel-type frame, this machine is built to withstand rigorous laboratory environments. Overload protection safeguards operators and the equipment, while compliance with international standards guarantees trustworthy results.

Versatile Applications
Designed for both manufacturers and testing laboratories, the CTM-2000D is suitable for a comprehensive range of compressive testing tasks in the construction industry, accommodating diverse testing needs with its 2000 kN capacity and robust build.

FAQs of Compression Testing Machine:

Q: How does the Compression Testing Machine ensure measurement accuracy?

A: It offers a high measurement accuracy of 1%, aided by a digital display with 0.1 kN resolution and both analog and digital load indicators, providing precise and reliable test results every time.

Q: What types of standards does this compression testing machine comply with?

A: This machine adheres to IS 516, BS 1881, and ASTM C39/C39M standards, ensuring that all concrete and cement strength tests meet widely recognized international requirements.

Q: When should the compression testing machine be operated with respect to temperature?

A: The machine is designed for use in environments with temperatures ranging from 0C to 60C, ensuring proper operation and consistent results within this specified range.

Q: Where can this machine be installed, and what is its typical usage scenario?

A: It is suitable for laboratories, manufacturing facilities, and construction sites, primarily used for compressive strength testing of concrete and cement specimens by exporters, manufacturers, and suppliers.

Q: What are the main components included in the model?

A: Core components include a robust load frame, a reliable hydraulic pump, and a precise pressure gauge, all working together to facilitate accurate compression testing under various loads.

Q: How does overload protection benefit the operator and machine?

A: The overload protection feature automatically prevents excessive loading, thereby reducing the risk of equipment damage and ensuring the safety of users during operation.
