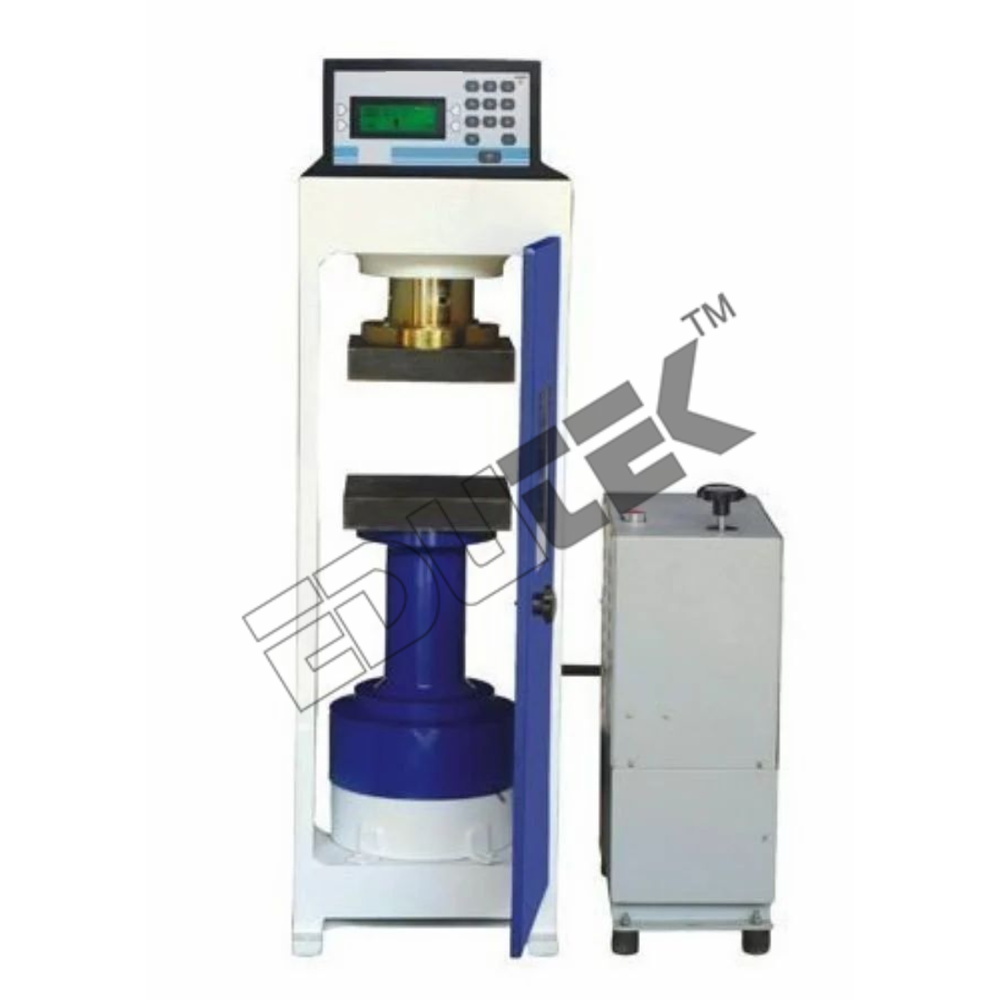

Digital Compression Testing Machine

Price 10000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Digital Compression Testing Machine Specification

Automation Grade
Semi-Automatic

Voltage
230 V AC Volt (v)

Feature
High Accuracy, Digital Display, Robust Construction

Power Source
Electric

Accuracy
1% of indicated value %

Temperature Range
0 C to 55 C Celsius (oC)

Frequency
50 Hz Hertz (HZ)

Measurement Range
0 - 2000 kN

Core Components
Load Cell, Hydraulic Pump, Digital Indicator

Model No

Capacity
2000 kN Ton

Equipment Materials
Mild Steel (MS), Cast Iron

Type
Compression Testing Machine

Usage
Concrete/Brick/Block Compression Test

Display Type
Digital

Dimension (L*W*H)
950 mm x 650 mm x 1170 mm Millimeter (mm)

Weight
Approx. 350 kg Kilograms (kg)

Safety Features
Overload Protection, Pressure Release Valve

Data Output
RS232/USB Port for Data Transfer

Control System
Microprocessor Based Digital Controller

Platen Size
165 mm diameter

Piston Stroke
50 mm

Oil Tank Capacity
8 Litres

Maximum Platen Separation
370 mm

Color
Blue & Grey

Minimum Reading Value
1 kN

Digital Compression Testing Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, North India, East India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Digital Compression Testing Machine

Digital Compression Testing Machine

The Digital Compression Testing Machine has been designed to meet the need for a simple, economic and reliable means to test concrete for its compressive strength. The design emphasizes simplicity, both of construction and operation, and makes the machine easy to use and maintain. The unit is compact, making its useful for site applications. The digital machines are provided with a pace rate indicator to indicate pace rate on a Bar Graph. With a little experience, the pace rate can be manually adjusted while the test is in progress.

The Complete Unit comprises of :

Loading Unit :

The loading unit is of fully welded construction having a cross head, base and solid plates. The hydraulic jack is fixed to the base. The platens of the machine are hardened, ground and polished. The upper platen is provided with self-aligning action. To facilitate testing of various size specimens, suitable size spacers are provided complete with ball seating arrangement.

Pumping Unit :

The two speed pump facilitates rapid approach of the platens for daylight closure and also provides comprehensive control over the application of load. A control valve provides fine control over the loading rate for accuracy of pacing.The digital read-out unit, incorporates a 4-digit display, calibrated in kN and features integral load pacing in kN/sec. Maximum load is held and retained for approx 15 min, unless cancelled, using the panel mounted reset switch. Pace rate set for running the test can be maintained manually with the help of a bar graph indicator. Logged data printing facility through a parallel port interface is provided in the machine. Readings upto 100 complete runs/tests can be stored in the memory.

High Precision Testing

This machine delivers consistently accurate results for compression strength, with a measurement range of 02000 kN and a minimum readable value of 1 kN. Its digital display and microprocessor controller ensure reliability and repeatability, providing confidence for laboratories and construction quality controls.

User-Friendly Operation

Featuring a digital indicator and semi-automatic operation, sample testing easy and efficient. Operators benefit from a clear user interface, safe usage through overload protection, and quick data transfers using RS232 or USB connectivity, which enhances workflow and record-keeping.

Built for Durability and Safety

Manufactured using high-quality mild steel and cast iron, the machine is engineered for longevity even with frequent high-capacity use. The inclusion of a robust hydraulic system, safety valves, and comprehensive overload protection offers reliable and secure operation in demanding environments.

FAQs of Digital Compression Testing Machine:

Q: How is data exported from the Digital Compression Testing Machine?

A: You can conveniently export test results through the RS232 or USB port, which allows direct data transfer to a computer or compatible external device for record keeping and further analysis.

Q: What is the main benefit of the microprocessor-based controller in this compression testing machine?

A: The microprocessor-based digital controller provides high accuracy and consistent readings, alongside user-friendly operation, making testing straightforward and reducing the likelihood of operator error.

Q: When should I use this machine during the construction quality process?

A: This machine is ideally used during the quality assurance phase to test the compressive strength of concrete, bricks, and blocks before and during construction, ensuring compliance with safety and material standards.

Q: Where can the installed and operated?

A: The machine is suitable for use in civil engineering laboratories, construction material testing facilities, and research institutions, provided the environment remains within the 0C to 55C operating temperature range and has the requisite power supply (230 V AC, 50 Hz).

Q: What safety features are included to protect both the machine and the operator?

A: The equipped with overload protection and a pressure release valve, which safeguard the equipment and user against accidental damage or unsafe conditions during operation.

Q: How does the ensure high testing accuracy?

A: It utilizes a highly precise load cell, robust digital indicator, and a microprocessor-based control system, achieving an accuracy of 1% of the indicated value for all measurements.

Q: What types of samples can be tested using this compression testing machine?

A: The suitable for testing the compressive strength of concrete cubes and cylinders, bricks, and blocks, making it versatile for various construction materials.
