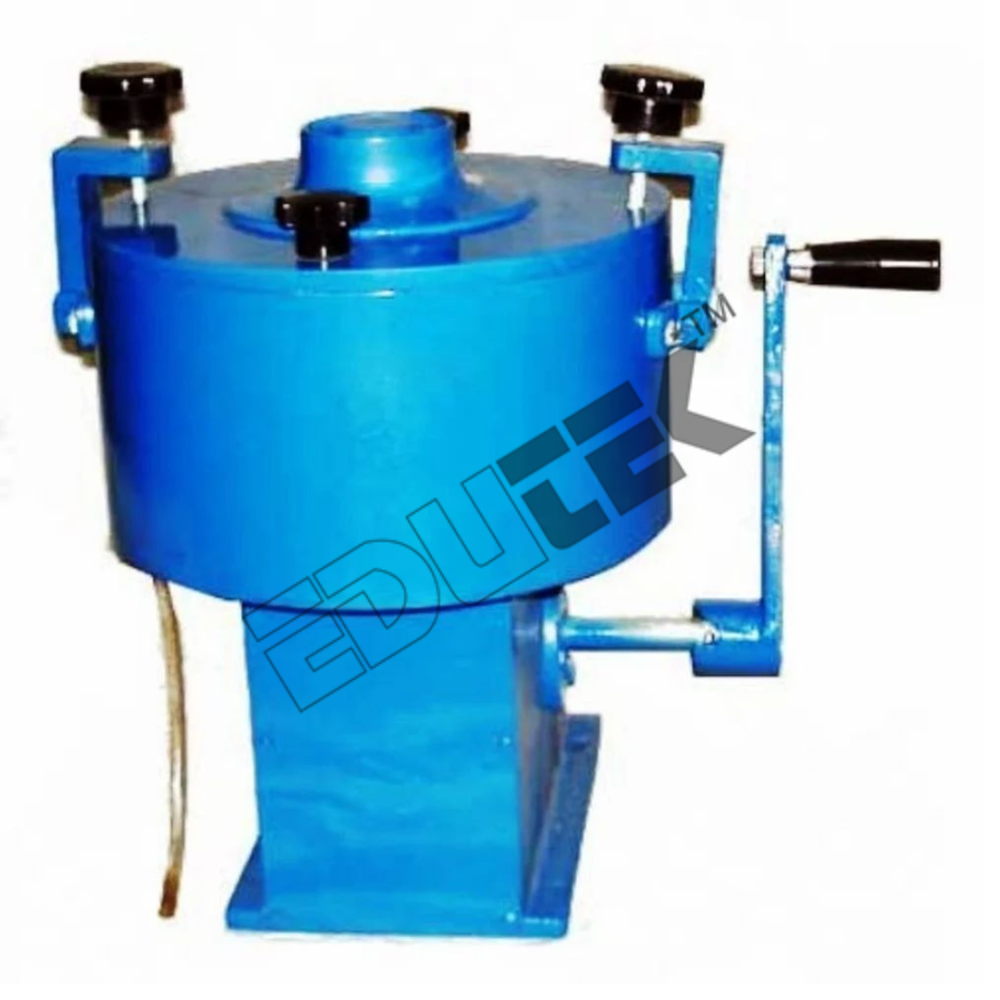

Centrifuge Extractor Hand Operated

Get a Price/Quote

Centrifuge Extractor Hand Operated Specification

Dimension (L*W*H)
Approx. 38 x 30 x 50 cm

Load Capacity
1500 gm

Application
Bitumen extraction from paving mix

Power Consumption
N/A (Manual)

Control System
Manual

Weight
Approx. 15 kg

Color
Silver / Grey

Power
Hand Operated (Manual)

Product Type
Centrifuge Extractor Hand Operated

Accuracy
0.5% of reading

Power Source
Manual

Machine Speed
Variable, up to 3600 RPM

Features
Detachable bowl, cast iron body, smooth manual operation, corrosion resistant

Speed Range
Up to 3600 RPM

Capacity
1500 gm

Operating Temperature
Ambient

Automatic Grade
Manual

Material
Cast iron with stainless steel bowl

Centrifuge Extractor Hand Operated Trade Information

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Middle East, Western Europe, Africa, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Centrifuge Extractor Hand Operated

Centrifuge Extractor Hand Operated

This is used for a quantitative determination of bitumen in hot-mixed paving mixtures and pavement samples. The centrifuge extractor is a safe, portable, corrosion-resistant model, which can be used both in the field and the laboratory it consists of removable cast aluminium rotor bowl mounted on a vertical shaft. A filter paper disc is pressed in between the rotor bowl and cover plate by a knurled nut. The bowl assembly is enclosed in a housing mounted on a cast aluminium body The gears operate in oil bath with splash lubrication. Complete with 25 filter discs.The motor drive gives 3500 r.p.m. to the rotor bowl. Operation on 230 Volts Single Phase, 50 cycles. A.C. supply.

Reliable Bitumen Extraction

This hand-operated centrifuge extractor efficiently separates bitumen from paving mixes, making it essential for quality control in road construction and laboratory applications. Its robust powder-coated finish and cast iron body ensure long-lasting durability, while variable speed control allows precise extraction tailored to your sample needs.

User-Friendly and Safe Design

With an ergonomic hand-crank, lockable safety cover, and detachable components, the extractor prioritizes operator comfort and safety. Maintenance is simplified by easy cleaning features, and the secure lockable lid provides peace of mind during operation, reducing potential for spills and contamination.

FAQs of Centrifuge Extractor Hand Operated:

Q: How do I use the Centrifuge Extractor Hand Operated for bitumen extraction?

A: Place the prepared paving mix sample in the stainless steel bowl, add solvent, and fit the lockable safety cover. Rotate the ergonomic hand-crank to start the centrifuge at your desired speed, and let the solvent separate the bitumen using centrifugal force. Follow included instructions for best results.

Q: What accessories are supplied with the centrifuge extractor?

A: Each unit comes with a stainless steel bowl, filter paper, solvent jar, and an instruction manual, ensuring you have all necessary tools to begin bitumen extraction right away.

Q: When should the extractor be used in the bitumen analysis process?

A: The extractor is used after collecting and preparing your paving mix sample, typically during laboratory testing stages to accurately separate bitumen from aggregate for analysis.

Q: Where can the hand-operated centrifuge extractor be operated?

A: Suitable for laboratory and field environments, this manually powered extractor does not require electricity, offering flexibility and convenience wherever bitumen extraction is needed.

Q: What benefits does the powder-coated finish and corrosion-resistant body offer?

A: The powder-coated finish and cast iron body protect the extractor from corrosion and wear, ensuring reliable performance and longevity even in harsh laboratory or outdoor conditions.

Q: How is the cleaning and maintenance process managed?

A: Detachable components such as the stainless steel bowl make cleaning quick and straightforward, reducing downtime between uses and ensuring consistent performance.

Q: What is the maximum load and accuracy of the hand-operated centrifuge extractor?

A: This extractor can process up to 1500 gm per operation, delivering results with a high accuracy of 0.5% of reading, making it ideal for precise laboratory analysis.
