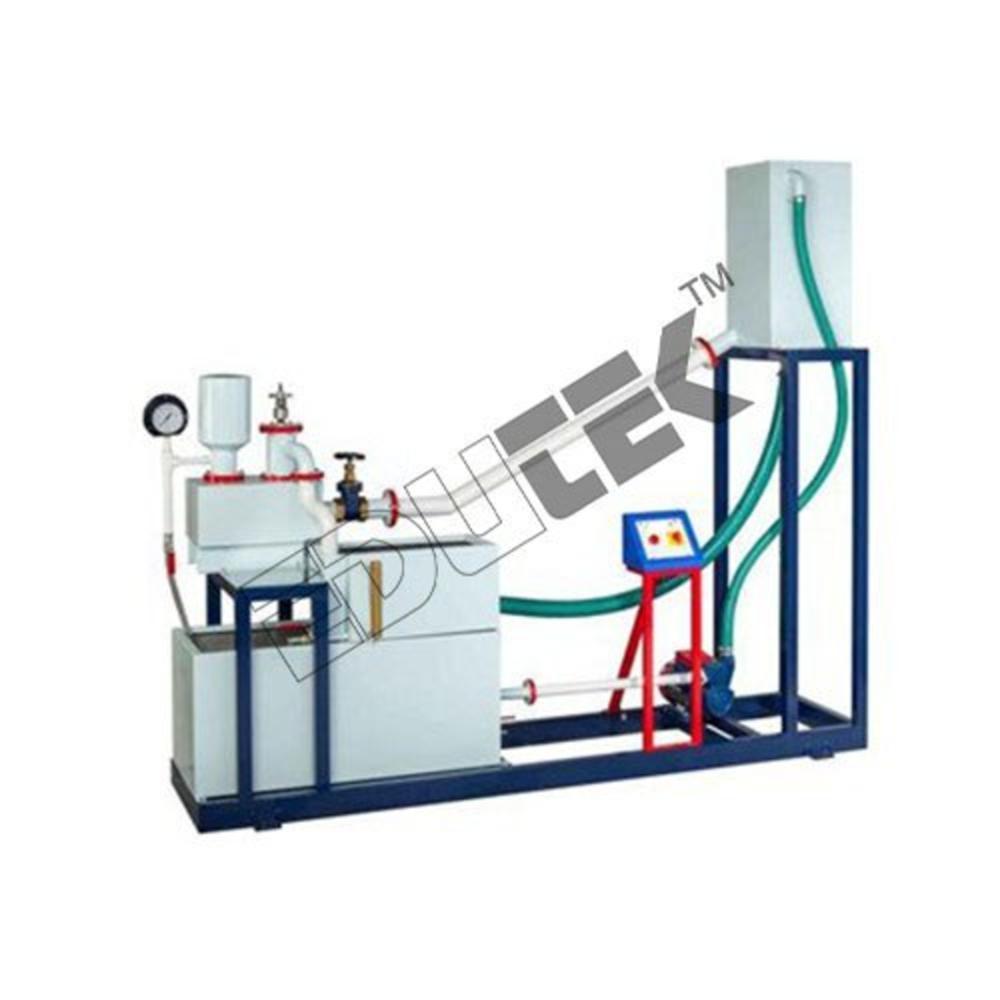

BOUNDARY RAM TEST RIG

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BOUNDARY RAM TEST RIG Specification

Capacity
Single test piece up to 50 mm diameter

Usage
Fluid Mechanics Lab Equipment

Core Components
Ram, cylinder assembly, pressure gauge, control valve

Accuracy
0.5% FSD

Automation Grade
Semi-Automatic

Frequency
50 Hz

Application
Fluid Mechanics Lab Equipment

Feature
Precision measurement; corrosion resistant

Measurement Range
0 - 1000 N

Model No
BRTR-50

Voltage
230V AC

Temperature Range
Ambient to 80C

Product Type
BOUNDARY RAM TEST RIG

Power Source
Electric

Equipment Materials
Mild steel frame with powder coated finish

Type
Boundary Ram Test Rig

Display Type
Analog dial gauge

Dimension (L*W*H)
900 x 450 x 1200 mm

Weight
Approx. 50 kg

BOUNDARY RAM TEST RIG Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About BOUNDARY RAM TEST RIG

Specification:

BOUNDARYRAM TEST RIG

The test section of Boundary LayerApparatus has been developed to perform various experiments of aerodynamics andfluid flow.

This is a open circuit Wind Tunnel,provides a region of air flow.

A layer of fluid, which comes incontact with the boundary surface, adheres to it on account of viscosity, as areal fluid flow past a solid boundary. As a result, no slip condition prevails.

If the boundary is at rest, the fluidat the boundary has zero velocity and the velocity increases if the fluid isaway from the boundary.

Thus, there, is a thin layer in thevicinity of the boundary within which the velocity has been affected because ofthe boundary & viscous effects. This thin layer has been termed as the BoundaryLayer.

Learning Objectives/Experiments:

To study the boundary layer velocityprofile.

To determine boundary layer thickness& displacement thickness.

To determine the exponent in thepower-law of velocity distribution.

Required for Operation:

Electricity supply: Single phase, 220V AC, 50 Hz, 5-15amp combined socket with earth connection. Earth voltage should be less than 5volts.

Floor Area: 4 m x 1.5 m.

Technical Specifications:

Type: Open Type Wind Tunnel.

Test Section: 200 mm x 200 mm.

Blower: Compatible Capacity

Motor: Compatible Capacity

U Tube Manometer: Length 1 m.

Pitot tube: Micro Pitot tube with scale arrangement

The whole set-up is ingeniouslydesigned and schematically arranged on a powder-coated rigid structure

Control Panel:

Standard make On/Off switch, MainsIndicator etc.

RPM measurement: RPM Indicator with Proximity sensor.

Advanced Precision for Boundary Testing

The Boundary Ram Test Rig ensures high-accuracy measurement (0.5% FSD) of force and pressure during ram tests, vital for evaluating fluid mechanics phenomena. With an analog dial gauge displaying results from 0 to 1000 N, users can trust the rig for reliable, repeatable results in academic or research laboratories.

Safety Meets Durability

Safety is paramount in the BRTR-50, featuring an overpressure valve to protect both operator and equipment. Its powder-coated mild steel structure resists corrosion, ensuring longevity and consistent performance even under frequent laboratory use. The rig is designed for floor mounting, providing stability during operation.

Versatile and User-Friendly Operation

Tailored for ease of use in fluid mechanics labs, the BRTR-50 supports both water and mineral oil as working fluids. The semi-automatic setup, intuitive control valve, and clear analog display enable precise adjustments and measurements. It accommodates a wide range of specimen sizes, making it highly adaptable for various experimental needs.

FAQs of BOUNDARY RAM TEST RIG:

Q: How is the Boundary Ram Test Rig operated in a fluid mechanics laboratory?

A: The BRTR-50 operates on a floor-standing, semi-automatic setup. Users place the test piece in the rig, select fluid type (water or mineral oil), and use the control valve to initiate and regulate pressure, which is monitored on the analog dial gauge. The system is powered by a standard 230V AC electrical connection and provides real-time measurement up to 1000 N.

Q: What are the main applications of the Boundary Ram Test Rig?

A: This test rig is primarily used in fluid mechanics laboratories for evaluating and demonstrating principles of boundary and surface interactions under variable pressure conditions. Its precision measurements are invaluable for research, academic demonstrations, and industrial quality assessment involving hydraulic systems.

Q: When should the overpressure safety valve be checked or used?

A: The overpressure safety valve functions automatically to maintain safe pressure levels during each operation. It should be checked regularly as part of routine maintenance to ensure it responds correctly in case the system pressure exceeds the 25 bar limit. This safety feature is crucial for protecting both the machine and the operator.

Q: Where can the Boundary Ram Test Rig be installed or used?

A: The rig is designed for permanent placement on the laboratory floor, supported by its sturdy, powder-coated mild steel frame. Its compact dimensions (900 x 450 x 1200 mm) enable easy integration into most laboratory settings, making it suitable for educational institutions, research centers, and quality control labs.

Q: What maintenance is required to ensure optimal performance of the test rig?

A: Routine maintenance includes checking the pressure gauge accuracy, inspecting the overpressure safety valve, and ensuring all connections are secure. The equipments powder-coated surface should be kept clean and dry, and the system should be flushed periodically when switching between water and mineral oil to prevent cross-contamination.

Q: How does the design of the BRTR-50 ensure durability and corrosion resistance?

A: The BRTR-50 is constructed from mild steel with a powder-coated finish, which provides strong resistance to corrosion and environmental wear. This structural design guarantees durability and long service life, even with intensive laboratory use involving water or mineral oil.

Q: What benefits does the Boundary Ram Test Rig offer to fluid mechanics laboratories?

A: Laboratories benefit from the rigs precise measurement capabilities, safety mechanisms, and versatility in handling various test pieces and fluids. The semi-automatic operation, corrosion-resistant build, and user-friendly interface make experiments more efficient and reliable, supporting advanced research and educational outcomes.
