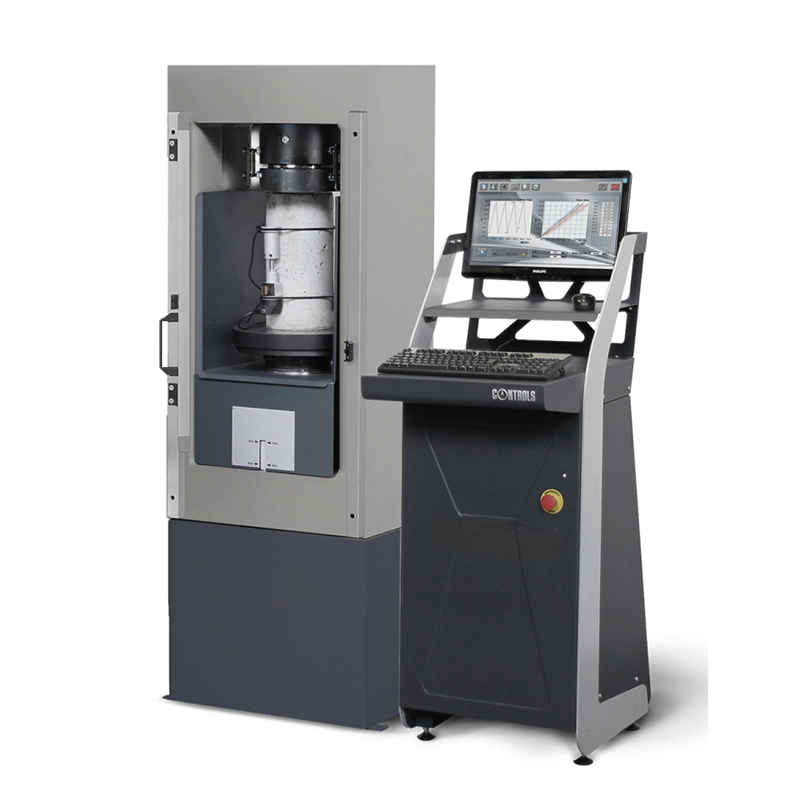

Automax Modulus

• AUTOMAX E-Modulus, computerised control console for 2 frames [expandable up to 4] to perform compression, flexure, indirect tensile tests, Elastic modulus and Poisson ratio determination.
• PC and software included. 230V, 50-60Hz, 1F
• ES Energy Saving technologies for reduction of power consumption and silent operations
• FLOW SHARING Technology for the automatic execution of loading and unloading cycles performed under load control
• 4 channels for load sensors [load cells or pressure transducers]
• 6 channels to measure strain values with potentiometric, LVDT and magnetostrictive [eg our compressometer 55-C0222/F] transducers
• 4 channels to measure strain values with strain gauges
• 300/15 kN cap. double chamber hydraulic frame for compression and flexure tests on cement, mortar, resin and other materials. Conforming to EN 196-1,1015-11, ASTM C109, C348, C349 using the suitable

• High accuracy load cells for load measurement
• Compression platens 165mm diameter
• Daylights: horizontal 220mm, vertical 200/200mm
• Piston travel 30/50mm
• Limit switch preventing piston overtravel
• Load measurement accuracy (when connected to suitable control unit): class 1 to EN 12390-4 / class A to ASTM E74 starting from 30kN for 300kN chamber and from 1.5kN for 15kN chamber; special calibration from 3kN for 300kN chamber and from 0.5kN for 15kN chamber available on request
• Supplied complete with traceable calibration certificate for load measurement accuracy when purchased with control unit complete with connection kit for separate control console and base
• Special calibration of load digital readout unit assuring class 1 from 1% of testing machine full scale [maximum load]
• Special calibration of load digital readout unit assuring class 1 from 5% of testing machine full scale (maximum load)
• Compression device to test portions of 40 x 40 x 160 mm mortar prism broken in flexure.
• Compression device to test 50 mm (2") mortar cubes
• Flexure testing device for 40x40x160 mm mortar specimens EN 196
• Flexure testing device for 40x40x160 mm mortar specimens
• Distance piece 165 mm dia. x 20 mm height.
• Distance piece 165 mm dia. x 30 mm height.
• Distance piece 165 mm dia. x 40 mm height.
• Transparent rigid safety guard for testing frame series 65-L28xxx.
• Safety guard opening switch for L type frames and machines
