Air Flow Studies Apparatus

About Air Flow Studies Apparatus

Air Flow Studies Apparatus

Description of Air Flow Studies Apparatus:

Edutek Instrumentation are offering a wide range of Air Flow Studies Apparatus, Air Flow Studies Unit has been designed to demonstrate how to measure the important characteristics of industrial air-distribution systems. It also shows how certain basic principles of fluid mechanics are applied to analyse flow in ducts and jets.

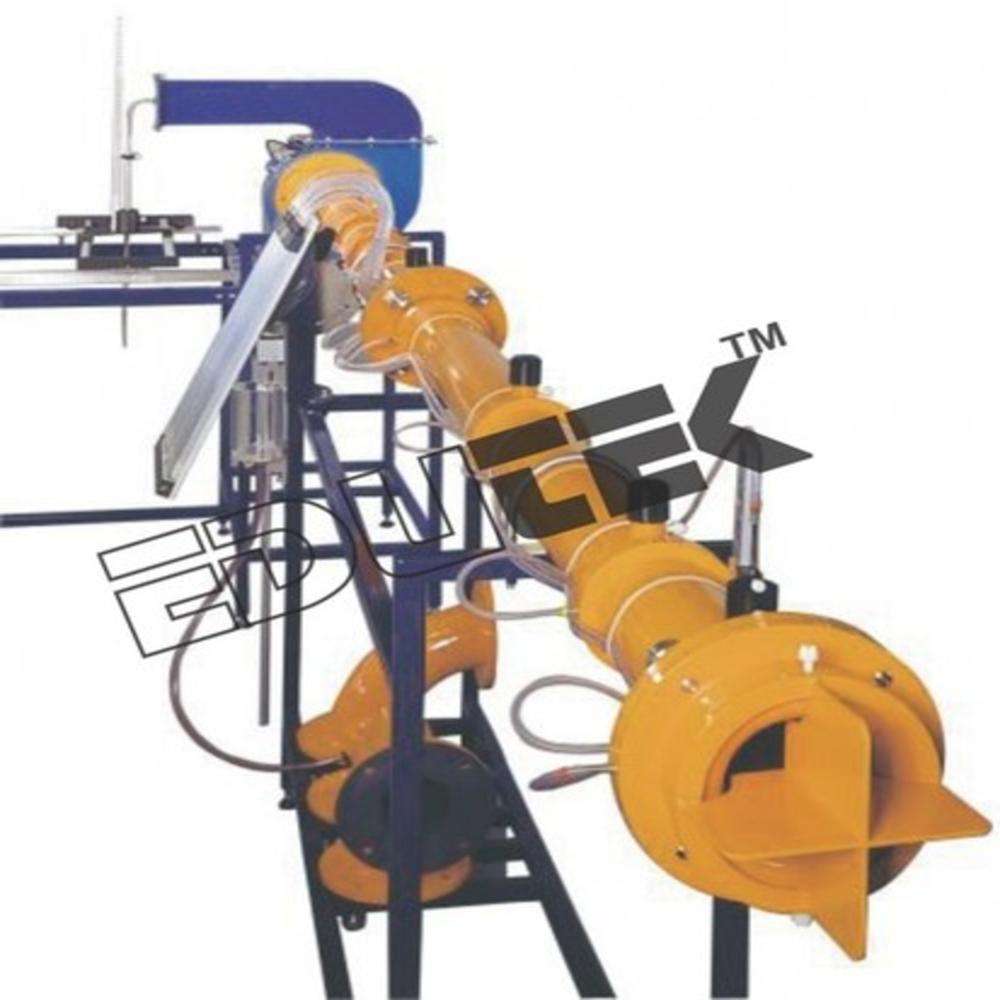

The equipment comprises a long smooth walled pipe connected to the suction side of an electrically driven centrifugal fan. The fan discharge pipe terminates in a flow-control damper for closed-conduit work, or a plate containing a small aperture for jet-dispersion measurements.
Air enters the smooth walled pipe through one of the two flow-measurement nozzles provided. Pressure tappings along the length of the pipe permit the pressure gradient to be determined.
A bend or mitred cascade elbow may be fitted midway along the smooth wall pipe for comparison of pressure losses.
Boundary layer growth is determined by the measurement of the velocity profile at five stations along the pipe using a traversing Pitot tube.
A conventional flow-measuring orifice plate is supplied for installing in the pipe upstream of the fan for additional demonstrations of pressure loss and recovery.
Air-jet studies are carried out on the discharge side of the fan. A Pitot tube is traversed vertically and horizontally at different distances from the discharge orifice to investigate the dispersion properties.
The equipment is mounted on a floor-standing steel frame with an adjacent support for the extended suction pipe.
Pressure measurements are made on a multi-tube inclinable manometer mounted on the support frame.
An electronic manometer bank with data logging software is available as an accessory.

Technical Detail

Item                                                     Value
Centrifugal fan capacity:                       218 l/s at STP
Pipe velocity range:                              0-35m/s
Inlet pipe:                                             dia.80mm length 2.75m
Interchangeable nozzles:                       dia.50mm and 80mm
Internal pipe orifice:                              dia.50mm
Jet discharge pipe orifice:                      dia.30mm
Jet traverse range                                  600mm x 140mm (downstream lengthxwidth):
Manometer range:                                 0 - 283mm H2O
Manometer fluid:                                   Kerosene (s.g.0.78)

Versatile Air Flow Measurement Methods

This apparatus supports orifice, Pitot tube, and Venturi methods, offering flexibility for comprehensive airflow analysis. Multiple interchangeable nozzles and duct diameters ensure adaptability for various experimental and industrial needs, making it ideal for research, training, and process optimization.


Convenience and Safety Built-In

The plug-and-play design allows for rapid deployment on any bench-top setup, with minimal installation effort. A thermal overload protection feature guards the blower motor, ensuring user safety and equipment longevity during intensive use.


Reliable and Accurate Performance

Engineered for precision, this apparatus delivers accurate airflow measurement (1%) within a range of 0.525 m/s. Dual display optionsanalog and digitalmake monitoring simple, while robust construction ensures long-term durability in demanding environments.
