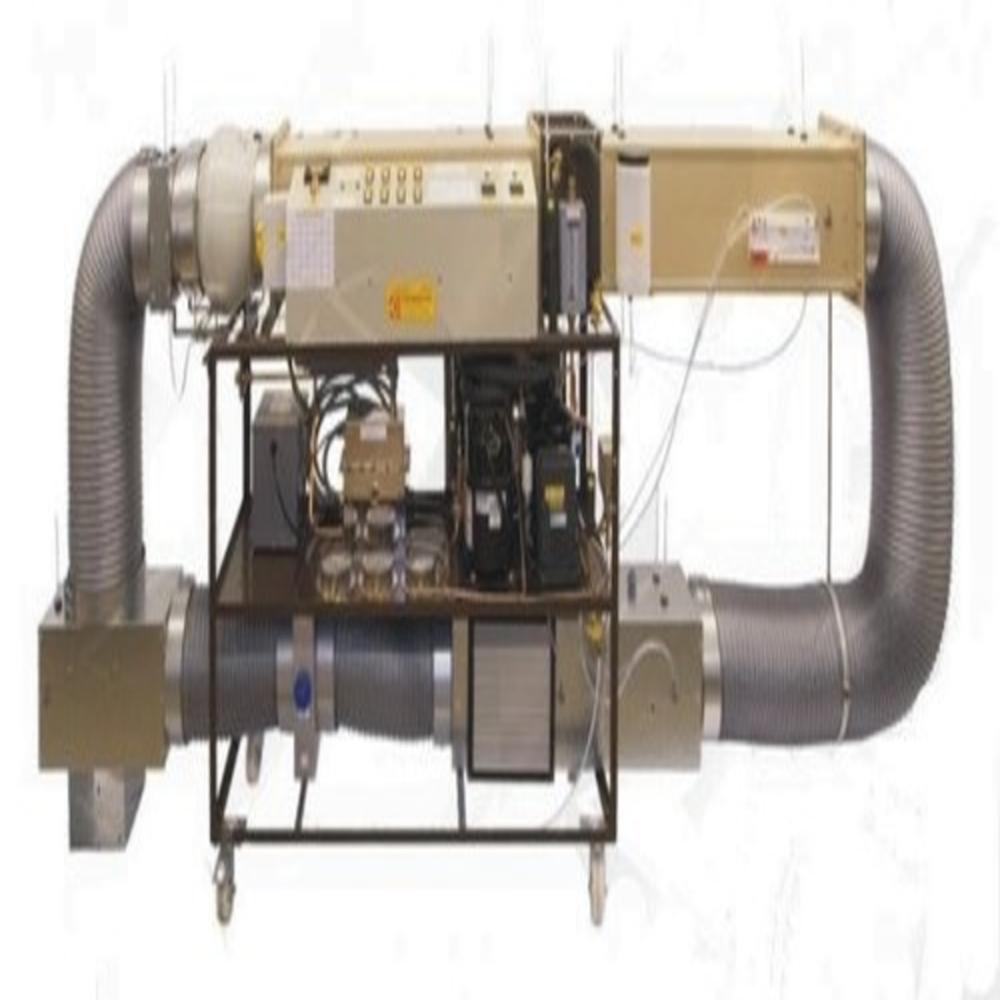

VISUAL REFRIGERATION TRAINING UNIT

Name: VISUAL REFRIGERATION TRAINING UNIT
Brand: EDUTEK INSTRUMENTATION

Get a Price/Quote

MOQ : 1 Unit

VISUAL REFRIGERATION TRAINING UNIT Specification

Voltage
230 V AC

Feature
Transparent Layout, Visual Inspection, Easy to Operate

Model No
VRTU-01

Accuracy
99.9 %

Temperature Range
-20°C to +50°C (typical)

Frequency
50 Hz

Product Type
VISUAL REFRIGERATION TRAINING UNIT

Classification
VISUAL REFRIGERATION TRAINING UNIT

Core Components
Compressor, Expansion Valve, Condenser, Evaporator, Measuring Instruments

Automation Grade
Manual

Warranty
1 YEAR

Color
NOT SPECIFIC

Power Source
Electric

Measurement Range
Pressure: 0-300 psi; Temperature: -20°C to +50°C

Equipment Materials
Mild Steel Frame with Powder Coating, Acrylic Panels

Type
VISUAL REFRIGERATION TRAINING UNIT

Usage
Educational/Training Laboratory

Display Type
Analog and Digital (as shown in image)

Dimension (L*W*H)
Approx. 1200 x 600 x 1500 mm

Weight
Approx. 55 kg

Mobility
Mounted on Castor Wheels

Evaporator Type
Plate or Coil Type

Condenser Type
Air-cooled, Finned Tube

Safety Features
Overload Protection, Safety Fuses

Observation
Direct observation of all cycle components

Noise Level
Less than 60 dB

Refrigerant Type
R134a (standard, customer-specific options available)

Educational Use
Demonstration of refrigeration cycle, pressure & temperature measurements, component function analysis

Control Panel
Integrated with Switches and Indicators

Compressor Type
Hermetically Sealed

VISUAL REFRIGERATION TRAINING UNIT Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA), Cash in Advance (CID), Cheque

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Africa, Asia, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About VISUAL REFRIGERATION TRAINING UNIT

VISUAL REFRIGERATION TRAINING UNIT

Edutek Instrumentation are the Best Manufacturer and Exporter Company in India

Basic principles of heat transfer.
The vapour compression refrigeration cycle.

SPECIFICATION

Liquid line filter drier and sight glass
Electrical control box with indicator/warning lamps, contactor, overloads and residual current device for protection against earth leakage.
Comprehensive manual to include theory and principles, instructors guide notes, student test papers and sample answers, parts list and electrical wiring diagram.
Audio-visual tape/slide programme.

Transparent Design for Enhanced Learning

The training unit features acrylic panels that provide direct visual access to core refrigeration components, including the compressor, condenser, evaporator, and measuring instruments. This transparent layout enables students and professionals to observe every stage of the refrigeration process, facilitating effective understanding and real-time analysis of pressure and temperature variations.

Reliable Testing and Accurate Measurements

Equipped with both analog and digital displays, the unit allows for precise measurement of pressure (0300 psi) and temperature (-20C to +50C). With an accuracy of 99.9% and integrated safety features such as overload protection and safety fuses, users can safely conduct experiments and gain reliable results crucial for skill development and successful training outcomes.

Mobility and Easy Integration in Laboratories

The VISUAL REFRIGERATION TRAINING UNIT is mounted on castor wheels, ensuring effortless relocation and setup. Its compact dimensions and sturdy build allow integration into various educational and training laboratory environments. The equipments manual controls and user-friendly design make it accessible for instructors and students alike.

FAQs of VISUAL REFRIGERATION TRAINING UNIT:

Q: How does the VISUAL REFRIGERATION TRAINING UNIT demonstrate the refrigeration cycle?

A: The unit utilizes a transparent layout, allowing users to directly observe the functioning of the compressor, evaporator, condenser, and expansion valve. This visibility enables effective demonstration of the refrigeration cycle, including pressure and temperature measurements throughout the process.

Q: What refrigerant does the unit use, and are customer-specific options available?

A: R134a is provided as the standard refrigerant for the training unit. However, customer-specific refrigerant types can be supplied upon request to suit particular training requirements.

Q: When and where can this equipment be used for educational purposes?

A: The unit is designed for usage in educational and training laboratories, typically during courses or workshops that involve hands-on refrigeration training, cycle analysis, and component function studies.

Q: What are the key safety features included in the device?

A: Safety is prioritized with the integration of overload protection, safety fuses, and audible noise control (less than 60 dB), ensuring secure operation in laboratory settings.

Q: How accurate are the measurements displayed, and what is the display format?

A: Measurement accuracy reaches up to 99.9%, with data presented via both analog and digital displays for comprehensive, easy-to-read monitoring of pressure and temperature.

Q: What are the main benefits of using this training unit in a laboratory environment?

A: Benefits include enhanced student engagement through direct observation, reliable measurements for analysis, straightforward operation, and the ability to easily move the unit within different laboratory setups due to castor wheels.

Q: Is technical support or warranty provided for this equipment?

A: Yes, the VISUAL REFRIGERATION TRAINING UNIT includes a 1-year warranty, and technical support is available from the manufacturer for exporters, suppliers, and educational institutions across India.
