VERTICAL CONDENSER APPARATUS

Price 22000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VERTICAL CONDENSER APPARATUS Specification

Feature

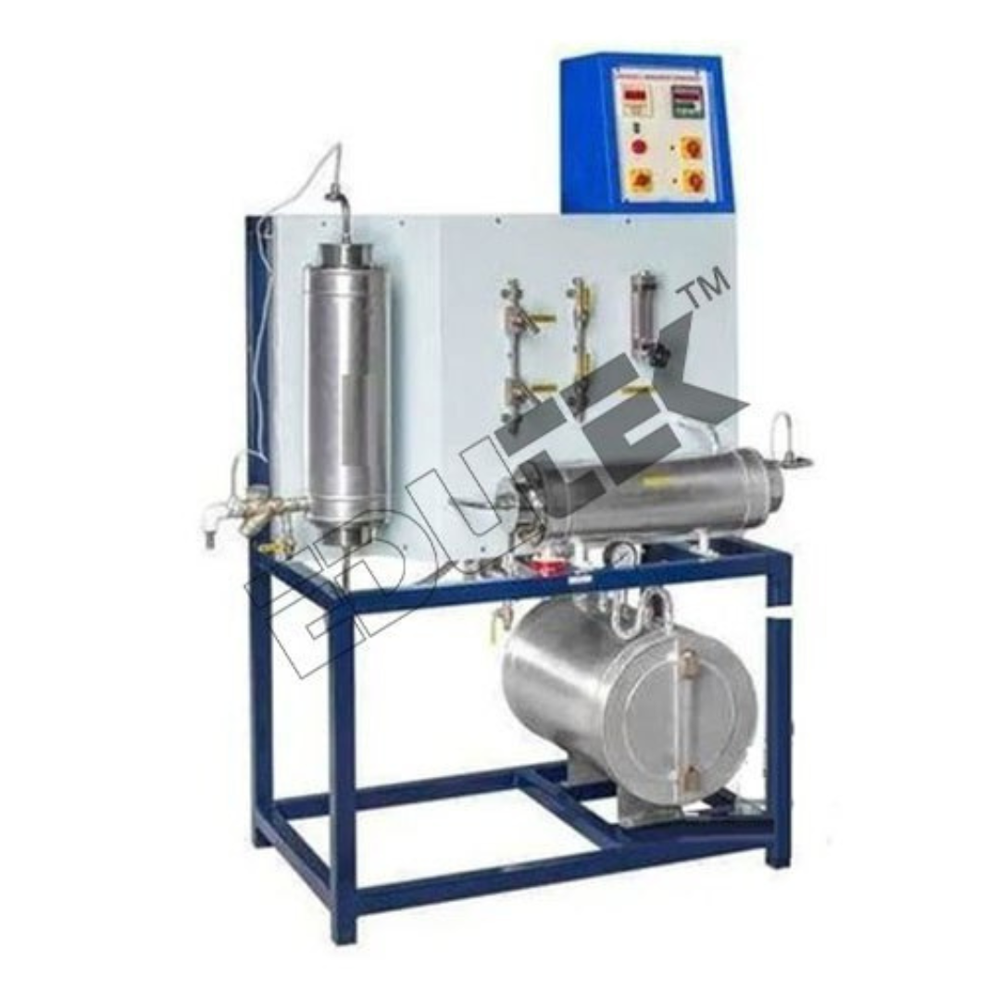

The present set-up is designed to studyVertical condenser. It consists of a vertical condenserhaving a shell fitted with tubes. Cold fluid flows through inside thetubes and steam flows through the shell. Steam generator is fitted with heaterto provide steam controlled by a Digital Temperature controller. Level indicator helps to maintainlevel of water in steam generator. Valves are provided to control theflow rates of cold fluids. Flow rate of cold water is measuredusing a Rotameter. Shell is fitted with steam traps fromwhere condensate is collected in measuring cylinder. Temperature of inlet and outlet ofboth hot & cold fluids are measured by temperature sensors

Product Type
VERTICAL CONDENSER APPARATUS

Usage
Heat Transfer Laboratory Equipment

Warranty
1 Year

Application
Heat Transfer Laboratory Equipment

Type
VERTICAL CONDENSER APPARATUS

VERTICAL CONDENSER APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About VERTICAL CONDENSER APPARATUS

Specification:

VERTICAL CONDENSER APPARATUS

The present set-up is designed to studyVertical condenser.

It consists of a vertical condenserhaving a shell fitted with tubes.

Cold fluid flows through inside thetubes and steam flows through the shell. Steam generator is fitted with heaterto provide steam controlled by a Digital Temperature controller.

Level indicator helps to maintainlevel of water in steam generator.

Valves are provided to control theflow rates of cold fluids.

Flow rate of cold water is measuredusing a Rotameter.

Shell is fitted with steam traps fromwhere condensate is collected in measuring cylinder.

Temperature of inlet and outlet ofboth hot & cold fluids are measured by temperature sensors

Comprehensive Heat Transfer Study

Experience hands-on learning with the Vertical Condenser Apparatus, enabling detailed exploration of condensation and heat exchange processes. The clear layout, featuring real-time temperature and flow monitoring, allows for in-depth study of theoretical and practical aspects of heat transfer, making it invaluable for both teaching and research.

Precision and Control

The apparatus offers precise control over steam and cold water flow, thanks to an advanced digital temperature controller and reliable rotameter. This ensures that users can accurately adjust experimental conditions and observe the direct impact on condenser performance, fostering a deeper understanding of scientific principles.

User-Friendly Design

With its accessible level indicator, user-friendly valves, and strategic placement of temperature sensors, the Vertical Condenser Apparatus simplifies experimental setup and data collection. Suitable for both newcomers and experienced operators, the design streamlines laboratory work and enhances productivity.

FAQ's of VERTICAL CONDENSER APPARATUS:

Q: How does the Vertical Condenser Apparatus operate in a laboratory setting?

A: The apparatus operates by circulating steam through the outer shell while cold water flows inside the tubes. This setup allows users to study the condensation of steam and measure heat transfer rates using integrated temperature sensors and flow measurement tools such as the rotameter.

Q: What key features distinguish this vertical condenser from other heat transfer equipment?

A: This apparatus features a shell-and-tube design with real-time temperature monitoring at all fluid inlets and outlets, flow control via valves, a rotameter for water flow measurement, and an easy-to-use digital temperature controller for precise steam generation. These features contribute to accurate and convenient heat transfer experiments.

Q: When is it appropriate to use the Vertical Condenser Apparatus in experiments?

A: The equipment is ideal for laboratory experiments that require a detailed study of condensation mechanisms, heat transfer coefficients, and the influence of varying flow rates and temperatures. It is commonly used in heat transfer labs for both educational demonstrations and research investigations.

Q: Where can this apparatus be implemented effectively?

A: It is best utilized in educational, industrial, and research laboratory environments where the study of heat transfer and condensation processes are essential. It is suitable for use in universities, technical institutions, and R&D departments.

Q: What is the process for measuring heat transfer with this apparatus?

A: To measure heat transfer, set desired steam and cold water flow rates using the controller and valves. Record the temperatures at every inlet and outlet using the built-in sensors, and track flow rates with the rotameter. Condensate can be collected and measured for further analysis.

Q: How does this apparatus benefit users in the lab?

A: The Vertical Condenser Apparatus provides a controlled environment for studying real-world heat transfer scenarios. Its integrated sensors and measurement tools ensure accurate data collection, facilitating better understanding and analysis in laboratory experiments.
