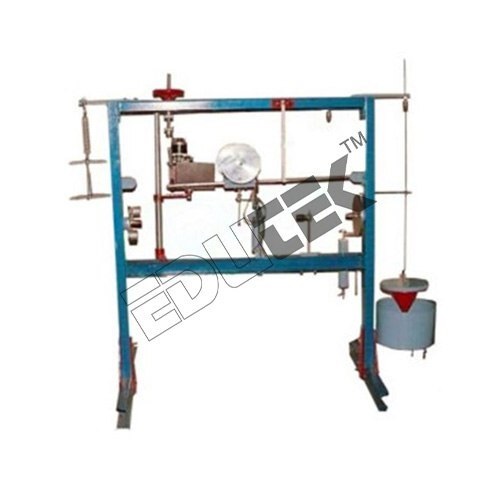

UNIVERSAL VIBRATION APPARATUS

About UNIVERSAL VIBRATION APPARATUS

Specification:

UNIVERSAL VIBRATION APPARATUS

We are engaged in the manufacturingand exporting of Universal Vibration Apparatus. To verify the relation ofcompound pendulum & to determine the radius of gyration.

To study the forced vibration ofsimply supported beam for different damping.

Descriptions

The Universal Vibration apparatusprovided comprehensive unit to perform the vibration experiments. A universalframe is provided upon which quick and easy assembly of various experiments canbe done. The unit is self-contained to safely store spares. The students caneasily assemble the experiments and study the theory of vibrations practically.

Experimentation

Following experiments can be performed withthis unit:

To verify the relation simplependulum.

To verify the relation of compoundpendulum & to determine the radius of gyration.

To study radius of gyration ofbifilar suspension.

To study the undamped free vibrationof spring mass system.

To study the longitudinal vibrationof helical coiled spring.

To study the damped torsionalvibration of single rotor system and to determine the damping co-efficient.

To study the forced vibration ofsimply supported beam for different damping.

Undamped torsional vibrations ofsingle rotor system.

Undamped torsional vibrations ofdouble rotor system.

Verification of Dunker leys Rule.
