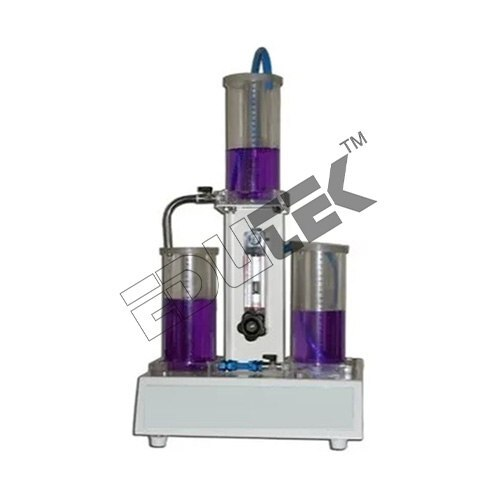

INTERACTING & NON INTERACTING SYSTEM APPARATUS

About INTERACTING & NON INTERACTING SYSTEM APPARATUS

Specification:

INTERACTING & NON-INTERACTING SYSTEM APPARATUS

The setup is designed to studydynamic response of single and multi-capacity processes when connected ininteracting and non-interacting mode. It is combined unit to study Singlecapacity process, Non-interacting process and Interacting process.

The observed step response of thetank level in different mode can be compared with mathematically predictedresponse.

Setup consists of supply tank, pumpfor water circulation, Rotameter for flow measurement, process tanks withscales, which can be connected to interacting and no interacting mode.

The components are assembled on frame& base plate.

 Experimentation/Learning ObjectivesDynamics study for

Step response

Single capacity Tank

Interacting mode

Non-Interacting mode

Utilities Required

Electric supply: Single Phase, 220 V AC, 5-15-amp combined socketwith earth connection. Earth voltage should be less than 5 volts.

Water supply

Floor Drain

Floor area: 1.0 m x 1.0 m

Technical Details:

Process Tank: Material Stainless Steel, Circular, withgraduated level scale (3 Nos.) Capacity 3.5 liters each (approx.)

Supply Tank: Material Stainless steel, Capacity 20 litres.

Overhead tank: Material Stainless steel, Capacity 5 litres.

Water Circulation: FHP Pump, Champion/Standard make.

Piping: SS & PVC, size ¼

Flow Measurement: By Rotameter.

The whole unit is assembled rigidlyon a base plate.
