Send InquiryUniversal Open Structure Flexural Frame
MOQ : 1 Unit
Universal Open Structure Flexural Frame Specification
- Classification
- Civil Engineering / Materials Science Testing
- Temperature Range
- Ambient to 60 C Celsius (oC)
- Application
- Civil Engineering Labs, Materials Research
- Core Components
- Load Frame, Digital Indicator, Fixtures
- Feature
- Highly Efficient
- Automation Grade
- Semi-Automatic
- Color
- Select (Typically Grey or Blue Frame)
- Usage
- Quality control of structural members, verification of material strength properties
- Accuracy
- 100 % %
- Operate Method
- Controlled Loading: The specimen is supported on a known span, and the load is applied centrally or at two points until failure, with load and deflection recorded throughout
- Voltage
- 220 V Volt (v)
- Capacity
- 100 kN Pcs/hr
- Power Source
- Electric
- Measurement Range
- 0-100 kN
- Frequency
- 50 Hz Hertz (HZ)
- Product Type
- Materials Testing Machine / Flexural Tester
- Material
- High-Strength Steel, Cast Iron
- Equipment Materials
- Mild Steel
- Type
- Flexural Testing Frame
- Display Type
- Digital
- Dimension (L*W*H)
- 700 mm x 400 mm x 900 mm Millimeter (mm)
- Weight
- Approx. 120 kg Kilograms (kg)
- Finish
- Powder Coated Rust-Resistant finish
- Color
- Blue and Grey
- Control Mode
- Manual with digital readout
- Compatible Standards
- IS 516, ASTM C78, BS 1881
- Test Speed Setting
- Variable, user-adjustable
- Frame Construction
- Open structure for versatile sample placement
- Environmental Resistance
- Corrosion-resistant surfaces
- Safety Feature
- Overload protection mechanism
- Maximum Flexural Span
- 500 mm
- Data Output
- USB export for test records
About Universal Open Structure Flexural Frame

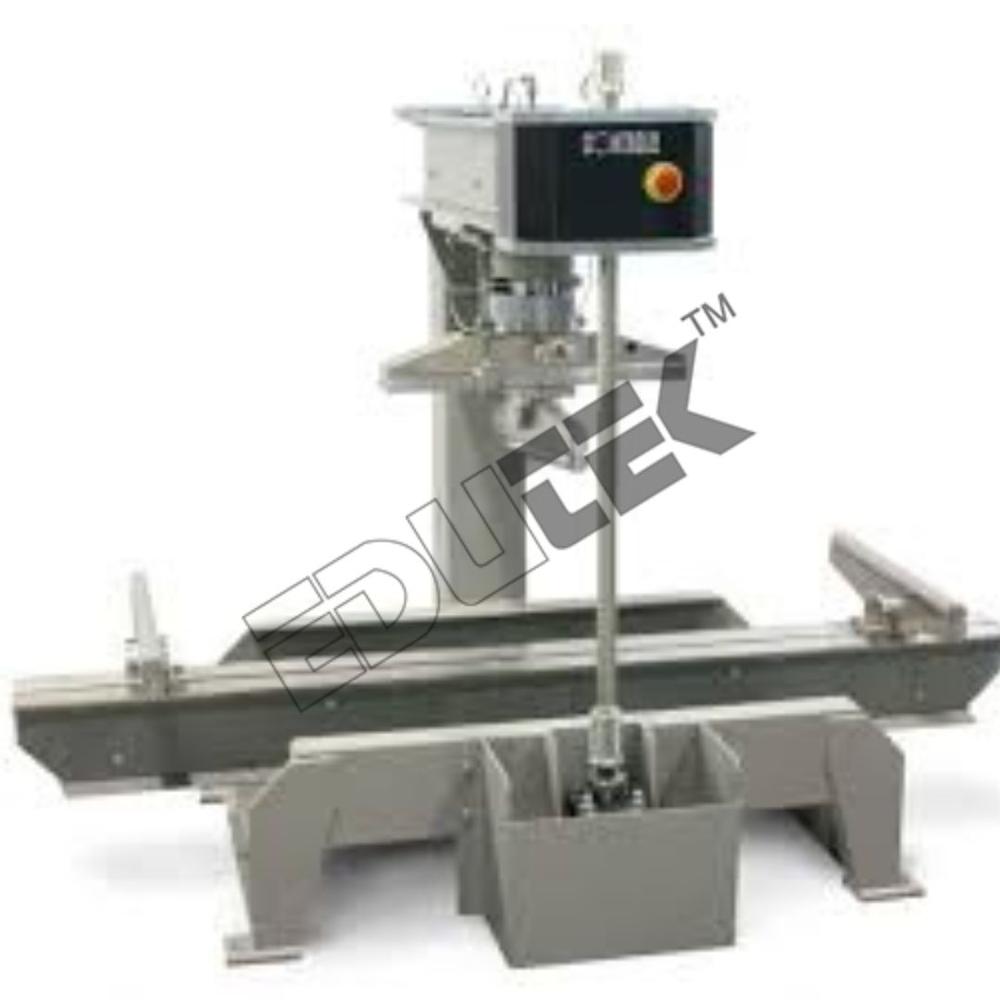

UNIVERSAL OPEN STRUCTURE FLEXURAL FRAME
- 300kN cap. high stiffness flexure frame, complete with strain gauge load cell fitted to the piston connection kit to the control console.
Main specifications:
- Load capacity 300kN;
- Suitable for Class 1 calibration from 3 to 300kN;
- Piston travel 110mm;
- Piston travel switch; .structure can be opened on one side for easy specimen loading; safety switch preventing machine use with structure opened
- Special calibration of load digital readout unit assuring class 1 from 1% of testing machine full scale [maximum load]
- Set comprehending 2 supports and 2 loading roller for flexure frame series 50-C1601. Supports and rollers dimensions: dia. 40mm x 300mm length.
- Span between supports adjustable from 80mm to 1500mm. Spam between loading rollers adjustable from 80mm to 500mm. Supplied complete with spacers for mounting below supports to reduce vertical clearance. Min. vertical clearance approx. 130mm.
- Max. vertical clearance approx. 260mm
- Roller bearing assembly for flexure frame
- C1601/FR for three and four point bending according to EN 12390-5, ASTM C78, C1609, EN 14488-3, 14651.
- Set comprehending 2 supports and 1 loading roller for flexure frame series 50-C1601. For testin paving flags conforming to EN 1339. Supports and rollers dimensions: dia. 40mm x 620mm length. Span between supports adjustable from 80mm to 1500mm.
- supplied without with spacers for mounting below supports to reduce vertical clearance.
- Min. vertical clearance approx. 130mm. Max. vertical clearance approx. 260mm.
- Loading swivel jointed pad for kerbs testing to EN 1340 for use with test frame 50-C1601.
- Dia. 40 mm. Min. vertical clearance: approx. 90mm.
- Max. vertical clearance: approx. 220mm
- Set of loading platens 165mm dia. x 30mm thickness for test frame series 50-C1601.
- Supplied complete with spacers for positioning below the lower platen to reduce vertical clearance.
- Min. vertical clearance approx. 97mm. Max. vertical clearance approx. 350mm
- Accessory for frame 50-C1601 for testing sprayed concrete slab to UNI 10834, EN 14488-5.
- Comprehends supporting square base and spherically seated loading element.
- Vertical clearance 20mm
- Accessory for frame 50-C1601 for testing sprayed concrete slab to ASTM C1550.
- Comprehends: supporting square base and spherically seated loading element. Vertical clearance 20mm
- Displacement transducer with 50mm travel for reading displacement of sprayed concrete slab centre under concentrated load. Compatible with test accessory 50-C1601/6 and /7.
- Supplied complete with mounting adaptors C1601/9 Displacement transducer with 100mm travel for reading displacement of sprayed concrete slab
- Set of four distance pieces and two baseplates for accessories 50-C1601/1, 50 C1601/2, 50-C1601/4
- Displacement transducer for measurement of crack opening, measuring range 3-8 mm, sensitivity 2,5 mV/V. Supplied with fixing jigs
- Fixing jigs for P0331/E transducer
Versatile Testing Capability
Engineered for a broad range of flexural tests, the open structure of this frame simplifies sample handling and placement. Supporting a maximum flexural span of 500 mm, it can accommodate different sample sizes, ensuring compliance with IS, ASTM, and BS standards. This versatility makes it a reliable solution for laboratories conducting diverse testing protocols.
Advanced Safety Features & Precision
The equipment is constructed with mild steel and finished with a powder-coated, rust-resistant layer, enhancing its lifespan and durability. Integrated overload protection prevents accidental equipment or sample damage, while the digital indicator ensures 100% accurate readings. The adjustable testing speed further optimizes the process to suit specific test requirements.
Effortless Data Management
Equipped with a digital readout and USB data output, managing and archiving test results is streamlined for laboratory professionals. Operators can quickly export records for further analysis and documentation, supporting quality assurance and reporting protocols essential for modern materials testing environments.
FAQs of Universal Open Structure Flexural Frame:
Q: How does the open structure design benefit sample placement and testing?
A: The open structure design allows for easy and versatile positioning of a wide range of sample sizes and shapes, ensuring efficient test setup and increased throughput without cumbersome disassembly or adjustments.Q: What are the steps involved in conducting a flexural strength test using this frame?
A: Place the prepared sample on the designated fixtures, set the desired flexural span (up to 500 mm), adjust the test speed, and start the manual test process. The digital indicator will display real-time data, which can be exported via USB for record keeping.Q: When should the overload protection mechanism be engaged?
A: The overload protection mechanism automatically activates if test loads exceed the equipments 100 kN capacity, safeguarding the frame and the sample from damage. There is no need for manual activation, ensuring continuous safety during all testing operations.Q: Where can this flexural frame be used most effectively?
A: Designed for laboratory use, it is ideal in civil engineering, quality control, and research laboratories where standardized flexural strength testing of materials in accordance with IS 516, ASTM C78, and BS 1881 is required.Q: What are the main benefits of having a digital readout with USB export?
A: The digital display ensures accurate and easy-to-read test results. USB export functionality provides straightforward electronic record management, enhancing traceability and simplifying the documentation needed for audits or quality assurance.Q: How does the adjustable test speed feature improve testing flexibility?
A: Variable, user-adjustable test speeds allow users to tailor the testing process to specific material characteristics or standard requirements, optimizing both accuracy and efficiency in material evaluation.
