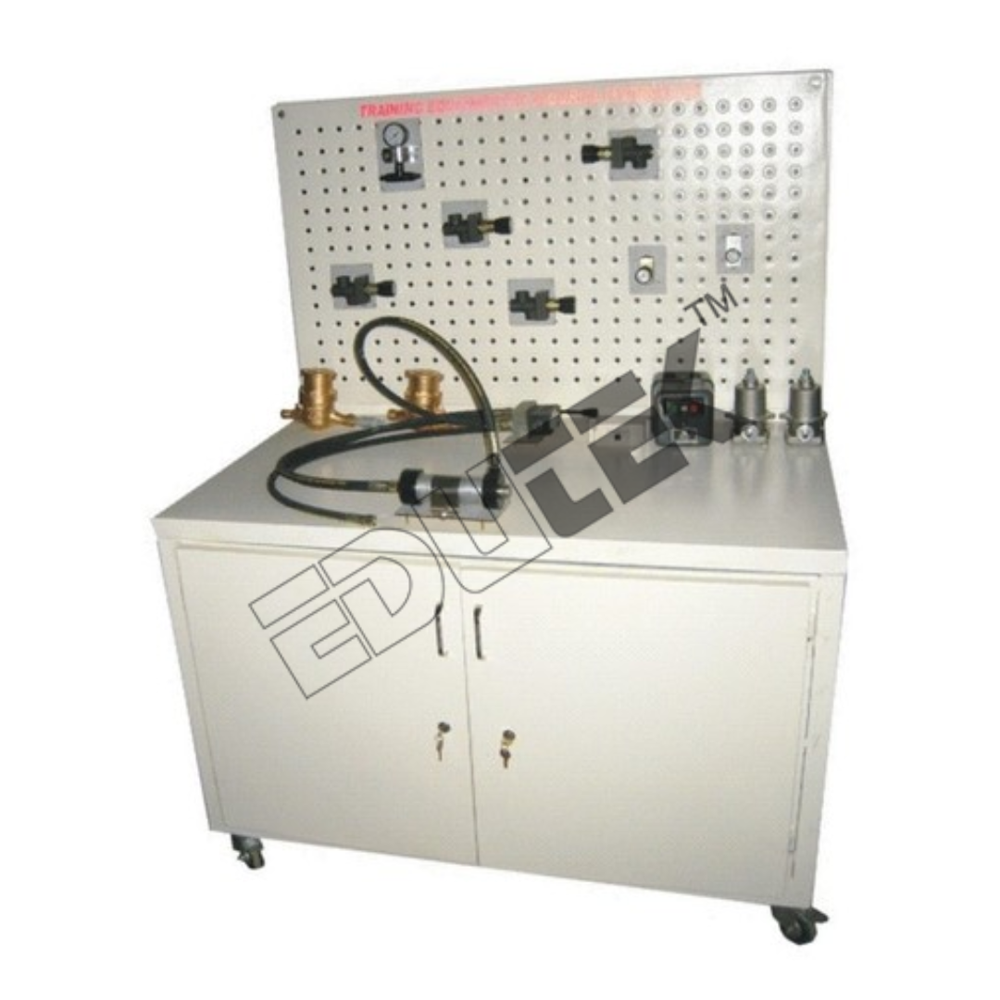

Training Equipment In Industrial Hydraulics

Send Inquiry

Request To Call Back

Training Equipment In Industrial Hydraulics

Get a Price/Quote

Training Equipment In Industrial Hydraulics Specification

Core Components
Hydraulic Pump, Double Acting Cylinder, Pressure Gauges, Flow Control Valves, Reservoir

Capacity
Standard/Custom as per requirement

Measurement Range
0-250 bar (Pressure), 0-25 LPM (Flow)

Voltage
230V AC

Model No
IH-TE1001

Automation Grade
Manual and Semi-Automatic

Power Source
Electric

Frequency
50 Hz

Feature
Highly Efficient

Temperature Range
0C to 60C

Accuracy
100 %

Equipment Materials
Powder-coated Steel, Aluminium, Brass, Industrial-grade Plastics

Type
Industrial Training Equipment

Usage
Laboratory

Display Type
Analog and Digital Gauges

Dimension (L*W*H)
1100 mm x 750 mm x 1450 mm

Weight
Approx. 85 kg

About Training Equipment In Industrial Hydraulics

TRAINING EQUIPMENT IN INDUSTRIAL PNEUMATICS

Electro-pneumatic Trainer designed to familiarize students with different Pneumatic devices used in industry & build different pneumatic circuits using them. The pneumatic devices include direction control valves, cylinders, solenoid operated valves, range of proximity sensors, push pull connectors for each device, electrical accessories.Different pneumatic circuits can be built & tested using flexible pneumatic tubing provided with the trainer.

Specification of the Workstation:

Aluminum Profile Panel: 1200 x 750 mm, Input Power: Single phase
AC 220 V, 50 Hz, Flow: Below 10 L/min, Capacity: < 1 KVA,
Air Service Unit: Pressure Range: 0.5 10 Kg/cm2, Filter Lubrication& Pressure Regulator (FRL Unit), Shut-off Valve, Filtering grade: 40 m, Connection Type: G ,
3/2 Way Double Solenoid Valve, normally closed, Pressure Range: 0.5 9.8 Kgf/cm2, Response Time: 20mS, WithLED & Protection Unit, Spring Return & Pilot operated,
5/3 Way Double Solenoid Valve, Pressure Center, Pressure Range: 0.5 9.8 Kgf/cm2 , Response Time: 20mS , Power
Supply: DC 24 V, With LED & Protection Unit,
Manifold, 8 Outlets , Pressure Range: 0 10 Kgf/cm2, Input: 1, Output: 8, Fixed Base,

Versatile Industrial Training Equipment

This hydraulics training unit is configured for versatility, supporting both standard and custom experiments with an adaptable setup. The design supports a wide range of hydraulic learning exercises, making it perfect for technical institutes, research labs, and industrial skill development.

Durable, Mobile, and Safe

Built from industrial-grade materials, the equipment is powder-coated for corrosion resistance and stability. It features castor wheels for effortless movement, ensuring flexible use across laboratory spaces. User safety is prioritized with overload protection, pressure relief valves, and a clearly accessible emergency stop switch.

Intuitive Operation and Maintenance

A comprehensive training manual accompanies the unit, guiding users through over ten standard experiments. Its modular components enable quick replacements, reducing downtime and enhancing ease of maintenance. Analog and digital gauges ensure precise readings, while the integrated control panel consolidates essential operational controls.

FAQs of Training Equipment In Industrial Hydraulics:

Q: How does the IH-TE1001 hydraulic training equipment benefit laboratory training?

A: The IH-TE1001 provides realistic simulation of multiple hydraulic circuits, allowing users to perform more than ten standard experiments. Its comprehensive manual supports progressive learning, and its accurate analog/digital gauges facilitate precise measurement and interpretation of hydraulic phenomena.

Q: What safety features are included in this hydraulic training system?

A: This equipment is equipped with a pressure relief valve, overload protection, and an integrated emergency stop switch on the control panel. These features ensure user safety during operation by automatically managing excess pressure or unexpected system loads.

Q: Where can the IH-TE1001 be effectively used?

A: This training system is ideally suited for technical laboratories in educational institutions, industrial training centers, and vocational schools that focus on hydraulic systems and fluid mechanics. Its mobility allows it to be conveniently relocated between workstations or classrooms.

Q: What is the process for maintaining this hydraulic training unit?

A: Maintenance is user-friendly due to its modular design. Components can be easily replaced or serviced following the detailed instructions provided in the manual. Routine checks on pressure levels, oil reservoir, and moving parts ensure longevity and consistent performance.

Q: When should operators use the emergency stop switch?

A: The emergency stop switch should be activated immediately in any unsafe situation, such as unexpected movement, excessive noise, or signs of system overload. This instantly halts all operations to prevent damage or injury.

Q: How does the display system support efficient learning?

A: The training equipment is fitted with both analog and digital gauges for monitoring pressure and flow. This dual-display setup helps users understand different measurement techniques, reinforces correct instrumentation usage, and enhances experiment accuracy.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Building And Civil Engineering Equipment Category

TRAINING EQUIPMENT IN INDUSTRIAL HYDRAULICS

Type : Hydraulic Training System

Equipment Materials : Mild Steel Frame with Powder Coating, Acrylic Observation Panels, Stainless Steel Fittings

Usage : Industrial Hydraulics Skill Development, Training & Demonstration

Feature : Modular Design, Transparent Panels for Observation, Leakproof Construction, Quick Coupling Connectors

Core Components : Hydraulic Pump, Directional Control Valves, Pressure Relief Valve, Flow Control Valve, Reservoir, Actuators (Cylinders), Pressure Gauges, Hose & Pipe Connections

Automation Grade : Manual / SemiAutomatic

Get a Price/Quote
