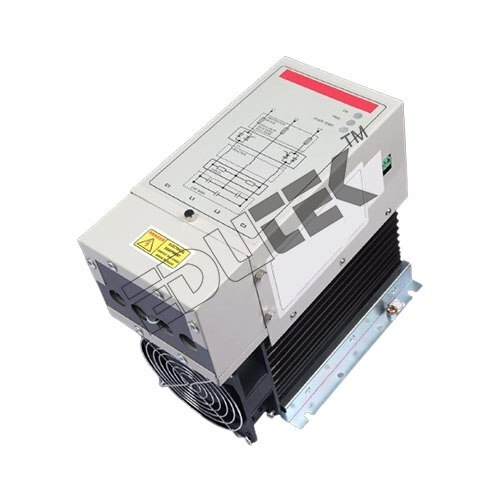

THYRISTOR AS DC VOLTAGE SWITCH

Name: THYRISTOR AS DC VOLTAGE SWITCH
Brand: EDUTEK INSTRUMENTATION
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

THYRISTOR AS DC VOLTAGE SWITCH Specification

Interface
Screw terminal/PCB mount

Power Supply
DC

Components
Thyristor, trigger circuit

Thermal Conductivity
High dissipation base

IP Rating
IP20

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Power Source
DC line

Output
Switched DC voltage output

Features
Fast response, Reliable switching, Compact design

Input
DC voltage input

Response Time
Microseconds switching

Operating Temperature
-40C to +125C

Product Type
THYRISTOR AS DC VOLTAGE SWITCH

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
1000V DC

Supply Voltage
Up to 1000V DC

Size
Standard module

Dimension (L*W*H)
50mm x 30mm x 5mm

Function
Acts as a DC Voltage Switch using thyristor technology

Color
Silver/Grey

Weight
Approx. 50g

Capacity
High Pulse Current Handling

Current Rating
10A continuous

Thickness
5 mm

Frequency
DC (static switching)

Gate Trigger Current
30mA max

Mounting Type
Panel/PCB Mounting

Holding Current
6mA typ.

Surge Current Capability
up to 150A for 8.3ms

Dielectric Strength
2500V RMS

RoHS Compliance
Yes

Package Material
High-grade insulating plastic

Gate Trigger Voltage
1.5V max

THYRISTOR AS DC VOLTAGE SWITCH Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About THYRISTOR AS DC VOLTAGE SWITCH

Find the blue-ribbon solution for DC voltage switching with our best-seller THYRISTOR AS DC VOLTAGE SWITCH. Special rate available for bulk orders from India's leading exporter, manufacturer, and supplier. Engineered for rarefied reliability, it withstands surge currents up to 150A (8.3ms) and offers wondrous rapid response at microsecond speeds. Designed for engineering electronics instruments, it features compact, high-grade insulation, operates from -40C to +125C, supports 10A continuous current, and handles up to 1000V DC with RoHS compliance. Versatile mounting, silver/grey finish, and robust IP20 protection ensure it's your premium choice.

Wondrous Features and Competitive Advantages

The THYRISTOR AS DC VOLTAGE SWITCH boasts a rarefied blend of features-surge current capability, fast microsecond switching response, and robust high dissipation base. Engineered for compactness with IP20 rating, it ensures dependable operation across harsh environments. The blue-ribbon design supports panel/PCB mounting, making it perfect for various engineering electronics instruments. Benefit from reliable, versatile DC voltage control with high pulse current handling in every application.

Packaging, Supply, and Payment Details at Special Rate

Each THYRISTOR AS DC VOLTAGE SWITCH ships safely in industry-standard, secure packaging. Stock is ready for prompt dispatch, with a supply ability matching high-volume needs. Enjoy a competitive list price and special rate for large orders, ensuring essential components are always available for your projects. We accept flexible payment terms tailored for trusted partners, facilitating smooth business and steady workflow.

FAQ's of THYRISTOR AS DC VOLTAGE SWITCH:

Q: How does the THYRISTOR AS DC VOLTAGE SWITCH function in an application?

A: The device acts as a solid-state switch, using thyristor technology to control and switch DC voltage with rapid microsecond response and reliable performance.

Q: What are the main benefits of using this thyristor switch in engineering electronics instruments?

A: It offers high surge current capacity, fast switching, compact size, excellent dielectric strength, and reliable operation across a broad temperature range, making it ideal for precision instrumentation.

Q: When should I use this product instead of traditional mechanical switches?

A: Use this thyristor switch when you require high-speed switching, maintenance-free operation, compact design, or when handling high surge currents beyond the capabilities of mechanical switches.

Q: Where can this DC voltage switch be mounted, and what are its mounting options?

A: The thyristor switch comes with versatile mounting choices, allowing secure installation on both panel surfaces and PCBs, suitable for integration into diverse electronic assemblies.

Q: What is the process for ordering in bulk, and are special rates available?

A: Simply contact our sales team or authorized distributors to discuss requirements. Special rates are offered for bulk orders and ongoing supply agreements.

Q: How does the product ensure safety and compliance?

A: It features high-grade insulating plastic, IP20 enclosure, and is RoHS compliant, ensuring both operational safety and environmental responsibility.
