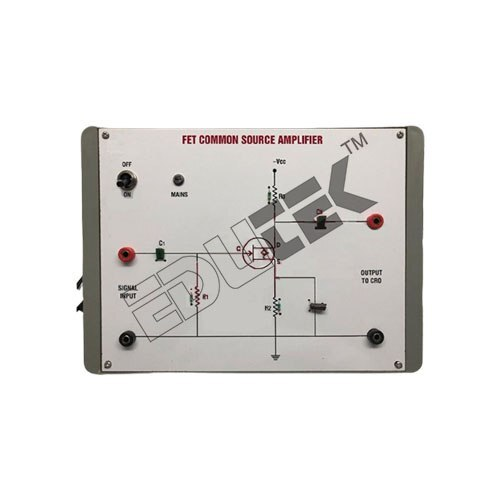

About FET COMMON SOURCE AMPLIFIER
Specification:
FET COMMON SOURCE AMPLIFIER
Scope of Learning:
To study the theoretical analysis of FET Amplifier To study and measure the frequency response of FET Amplifier To measure various parameters of FET Amplifier and compare them theoretically To observe the output of FET Amplifier in cutoff regions
Technical Specifications:-
DC power supply: 12V DC
Mains supply: 230V 10%, 50Hz
Educational Clarity and AccessibilityDesigned as a standard trainer, this FET Common Source Amplifier excels in educational environments. Its open-top PCB and labeled test points allow for direct oscilloscope or multimeter connections, making electronic measurements and circuit analysis more accessible for students and instructors.
Robust Construction for Lab UsageConstructed with high-quality FR4 epoxy glass and encased in a plastic base, the amplifier unit ensures durability and stability on workbenches. The compact size, coupled with clearly marked components and banana socket interfaces, offers safe handling and straightforward integration into electronics labs.
Versatility and Accurate PerformanceOptimized for frequencies up to 1 MHz and featuring low-latency response, this trainer supports a wide range of analog signal amplification tasks. Its bias circuit enables stable operation, while reverse polarity protection safeguards against user errors during experiments.
FAQ's of FET COMMON SOURCE AMPLIFIER:
Q: How does the FET Common Source Amplifier function in a lab setting?
A: This trainer amplifies low-level analog input signals using an N-channel JFET in a common source configuration. It offers clear circuit visibility and test points for real-time measurement, making it ideal for signal amplification experiments in educational labs.
Q: What are the key benefits of using this trainer for engineering students?
A: The trainer offers hands-on experience with FET-based signal amplification, aids in understanding voltage divider and source resistor biasing, and encourages practical measurement using oscilloscopes or multimeters thanks to accessible test points.
Q: When should I use this amplifier trainer in my coursework or experiments?
A: Use this trainer when you need to demonstrate or analyze FET-based amplification, study biasing techniques, or practice signal measurement in analog electronics courses or engineering lab sessions.
Q: Where can test measurements be taken on the trainer?
A: Test points are clearly provided on the open-top PCB, allowing for easy and safe connection of oscilloscopes, multimeters, or probes to monitor circuit behavior in real-time.
Q: What process is involved in setting up the amplifier for measurements?
A: Simply connect an external 12V DC adapter, input your low-level analog signal via the designated banana socket, and connect output measurement devices to the output sockets. Ensure polarity is correct-the reverse polarity protection diode helps prevent damage.
Q: How is circuit safety ensured in this trainer?
A: The amplifier includes a reverse polarity protection diode to prevent circuit damage from incorrect power supply connections. The robust enclosure and adherence to standard trainer size also contribute to safe handling during lab sessions.
