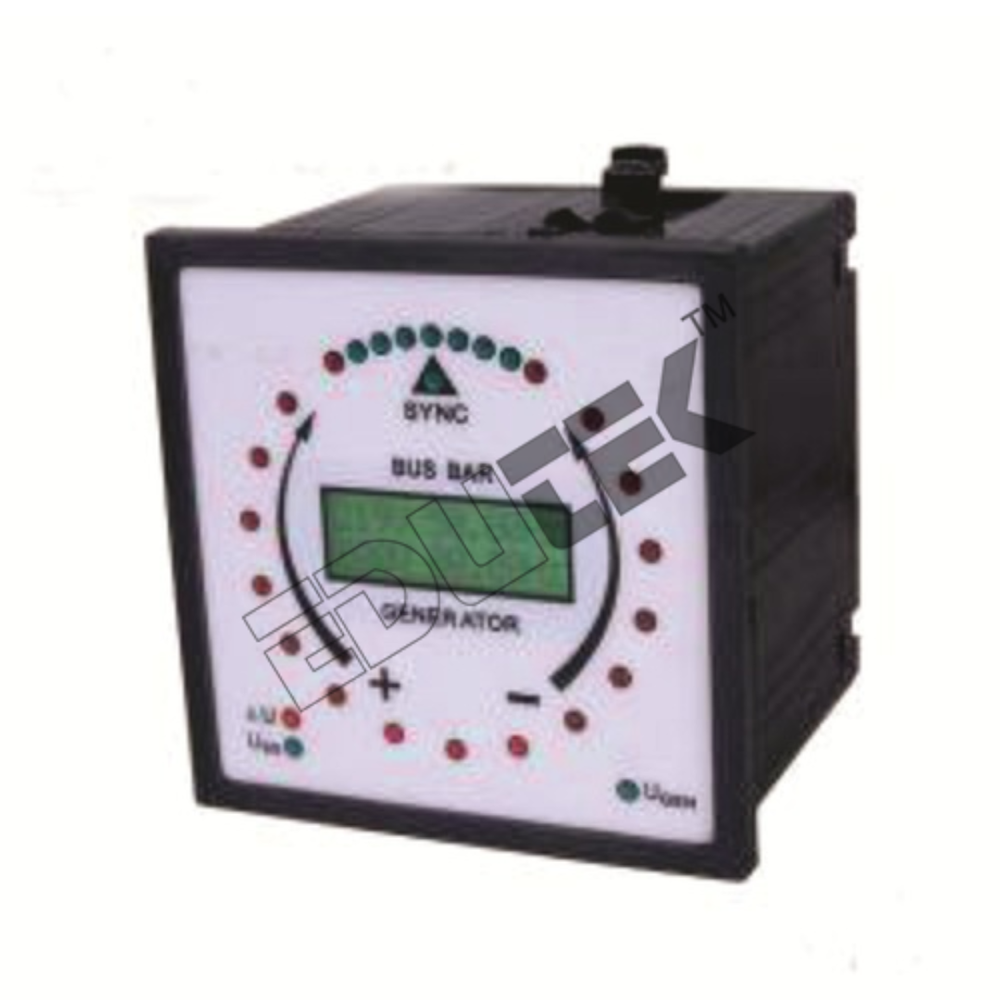

Synchroscope .

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Synchroscope . Specification

Response Time
Immediate (mechanical)

Input
Two inputs: One from incoming generator, one from busbar

IP Rating
IP20

Components
Analog pointer, scale, terminal connectors

Interface
Terminal block

Features
Panel mount, sturdy construction, easy installation

Output
Pointer deflection for phase synchronisation

Usage
Synchronising generators to main supply

Power Source
Mains AC

Resolution
Analog scale division

Power Supply
AC mains

Operating Temperature
-10C to +55C

Display Type
Analog

Product Type
Electromechanical Synchroscope

Application
Power generation, electrical panels

Rated Voltage
110V/230V AC

Supply Voltage
110V/230V AC

Size
96mm x 96mm (standard panel size)

Dimension (L*W*H)
96mm x 96mm x 60mm

Function
Indicates phase synchronisation between two power sources

Color
Black with white dial

Weight
Approx. 1 kg

Capacity
Suitable for up to 10A current

Current Rating
5A/10A AC

Thickness
Standard panel mount thickness

Frequency
50Hz/60Hz

Dial Marking
Clear white scale with black markings

Storage Temperature
-20C to +70C

Mounting Type
Flush / Panel mounting

Connection Type
Screw terminal

Accuracy
2% of reading

Pointer Material
Aluminium

Insulation Resistance
>20 M at 500V DC

Material
ABS plastic housing

Scale Range
FAST, SLOW, IN PHASE

Synchroscope . Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Synchroscope .

SYNCHROSCOPE

Type : Electro-mechanical
Voltage at Synchronism : 110V 2%
Operating Voltage : 110V 20%
Frequency : 50 / 60Hz 5%
Synchronizing Condition : Dark lamp method
Accuracy : 2
Angle of Rotation : 360
Power Consumption : 3VA for MAINS - (I) & 6VA for GENERATOR - (II)
Insulation Resistance : Greater than 20 at 500V. DC.
Dielectric Test : 2kV RMS for One minute
Operating Temp : -10C to 55C
Storage Temp : -20C to 70C
Humidity : Up to 95% RH
Indication : Moving pointer & LED

Sturdy and Reliable Synchronisation

This synchroscope is purpose-built for frequent use in power stations and industrial panels, featuring a durable ABS plastic housing and secure flush/panel mounting. Its aluminium pointer and clear white dial ensure accurate readings while the IP20 rating provides basic protection, making it ideal for controlled indoor environments.

Accurate, Immediate Indication

With 2% accuracy and immediate mechanical response, this device offers precise phase matching between incoming generators and the busbar. Its analog scale divisions and clear FAST, SLOW, and IN PHASE markings help operators achieve swift and reliable synchronisation.

User-Friendly Installation and Operation

Designed for standard 96mm x 96mm panel cutouts, this synchroscope features screw terminal connections for simple setup. It readily interfaces with the generator and busbar via two analog inputs, providing a direct visual indication for synchronising operations.

FAQs of Synchroscope:

Q: How does the synchroscope indicate correct synchronisation between two power sources?

A: The synchroscope displays pointer deflection across a clear scale marked FAST, SLOW, and IN PHASE. When the pointer settles in the IN PHASE region, it signals that both generator and busbar voltages are in synchrony and can be safely paralleled.

Q: What are the power and input requirements for this device?

A: It operates on a mains AC supply with selectable rated voltage of 110V or 230V, and accepts two analog inputs: one from the incoming generator and one from the busbar. The device is compatible with current ratings of 5A or 10A AC at 50Hz or 60Hz frequency.

Q: When should I use a synchroscope in my electrical setup?

A: A synchroscope is used when synchronising a generator to an existing power supply, such as a main busbar. It should be used during generator start-up or reconnection to ensure phase alignment, frequency, and voltage match before closing the breaker.

Q: Where should this synchroscope be installed for optimal use?

A: The instrument is designed for flush or panel mounting in control rooms, switchboards, and electrical panels, generally at places where operators can easily observe synchronisation procedures for safe generator integration.

Q: What is the process for connecting the synchroscope to the system?

A: Connect the synchroscopes two input terminals: one to the generator output and the other to the busbar. Use the screw terminals on the terminal block and ensure secure connections, following panel wiring best practices. The device then operates automatically during synchronisation.

Q: What are the main benefits of using an analog synchroscope?

A: Analog synchroscopes like this provide real-time, easily interpretable visual feedback for phase synchronisation. Their immediate response and straightforward display assist operators in making quick decisions, enhancing operational safety and system reliability.
