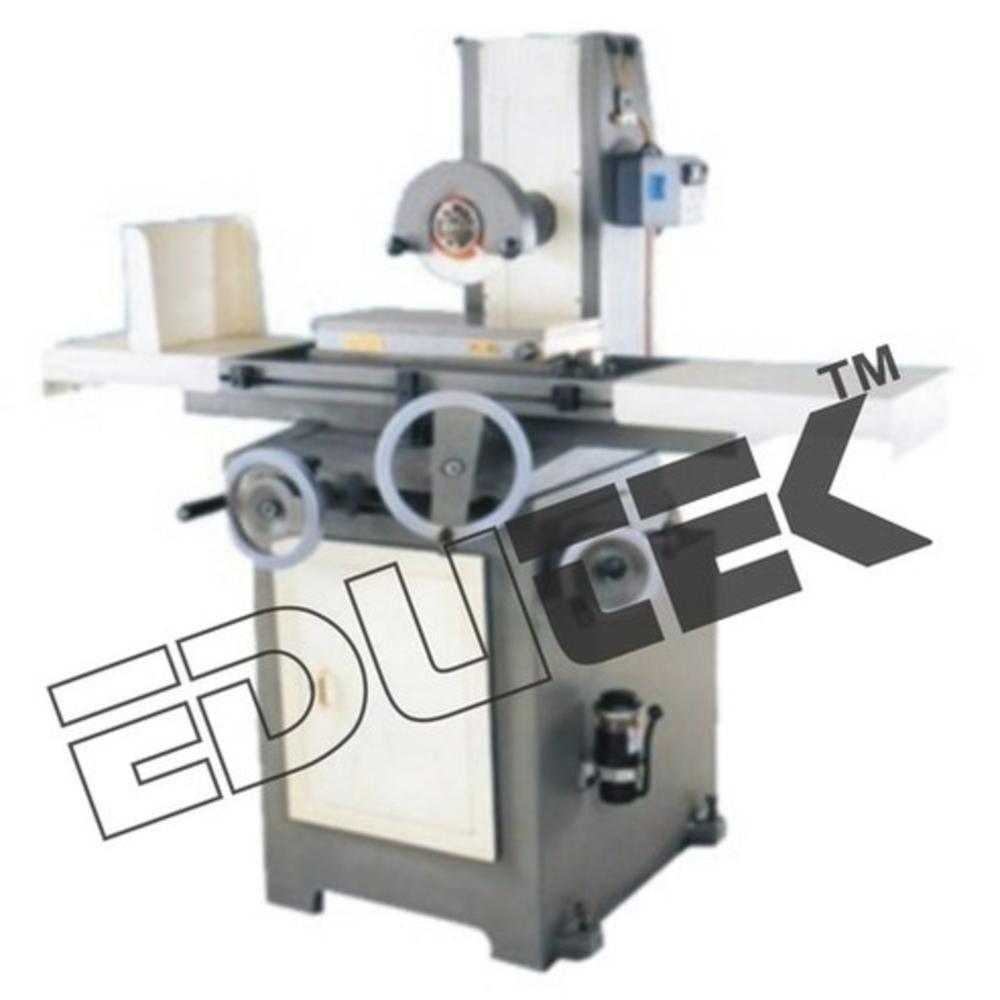

Surface Grinding Machine

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Surface Grinding Machine Specification

Feature
Highly Efficient

Frequency
50 Hz

Automation Grade
Semi-Automatic

Power Source
Electric

Core Components
Grinding Wheel, Table, Spindle Motor

Voltage
220-440 V

Capacity
225 x 450 mm (Table Size)

Model No
SGM-450

Accuracy
100 %

Measurement Range
0.01 mm to 450 mm

Equipment Materials
Cast iron body

Type
Surface Grinding Machine

Usage
Laboratory

Display Type
Analog

Dimension (L*W*H)
1800 x 1250 x 1750 mm

Weight
Approx. 1000 kg

About Surface Grinding Machine

SURFACE GRINDING MACHINE ANALYSIS SETUP

The device consists of power supply safety control board, steel and aluminium structure

bench, insertable surface grinding machine electrical control panel, casting material

formed surface grinding machine mechanical mechanism, surface grinding machine

holder frame, etc. User can detect faults on the panel directly to enhance understanding

of principle. There are more than 15 pcs specially designed control switches for manual

setting of particular functions, the surface grinding machine mechanical mechanism can

be connected with electrical part to achieve control, debugging and examination. The device is designed with ground protection and

leakage protection functions.

SPECIFICATIONS SURFACE GRINDING MACHINE

Electrical control panel: It covers all the components needed for surface grinding machine control, with the following minimum

configuration: at least two groups button switches, master switch and switch power supply, three phase breaker for leakage

protection (maximum current 6A), three groups of fuse bank, 127V alternating current contactor kit, 127V direct current

electromagnet, 6.3V colorized lighting unit, 36V indicator, five-grade transformer kit, two-line plug, 127V relay unit with

related bed structure, direct current 12V relay not less than 10 units, resistor and capacitor kit, rectifier unit, three groups of

thermal relay electrical units, panel carrying and adjusting mechanical unit, etc.

Surface grinding machine mechanical mechanism: it is designed no difference with real surface grinding machine in structure and

principle. The length is not less than 600mm, the height is not less than 310mm, the width is not more than 900mm. It is made of

stable steel, comes with movable and adjustable steel body support.

Surface grinding machine holder frame: 1177mm825mm645mm, steel frame with four universal lockable casting wheels.

Electrical control panel frame: 1000mm1700mm805mm, aluminium frame with four universal lockable casting wheels, a

material storage drawer, water proof, fire proof board.

TECHNICAL PARAMETERS

Power supply : Three-phase, AC 380V, 50Hz
Capacity less than 300KVA and power less than 600W
Action current leakage protection: less than 30mA, less than 0.1S
Temperature: -5C~45C, RH: less than 92%

Versatile Performance for Laboratory Needs

The SGM-450 Surface Grinding Machine caters specifically to laboratory applications, ensuring that precision and repeatability remain top priorities. Its spacious table and generous longitudinal and cross travel ranges make it ideal for a wide array of sample sizes and materials. Automatic lubrication and integrated coolant deliver exceptional operational reliability and extended service life.

Advanced Engineering and Design

Constructed with a durable cast iron body and finished with corrosion-resistant paint, this surface grinder guarantees longevity in even the most demanding settings. With analog display, semi-automatic controls, and a highly efficient spindle motor reaching 2800 RPM, users experience seamless operation with minimal maintenance.

FAQs of Surface Grinding Machine:

Q: How does the SGM-450 ensure high precision in surface grinding?

A: The SGM-450 Surface Grinding Machine achieves high precision through its rigid cast iron construction, high spindle speed of 2800 RPM, and highly accurate table movements (longitudinal: 475 mm, cross: 225 mm). Its analog display, automatic lubrication, and integrated coolant system contribute to a consistent surface finish and accuracy of up to 100% within a measurement range of 0.01 mm to 450 mm.

Q: What materials can be processed with this surface grinding machine?

A: The SGM-450 is suitable for grinding a variety of metallic and non-metallic materials commonly used in laboratory environments. Its sturdy construction and powerful spindle allow it to handle steel, cast iron, aluminum, and composite samples, provided they fit within the 225 x 450 mm table size and 100 kg loading limit.

Q: When should the coolant and lubrication systems be used during operation?

A: Both the coolant and automatic lubrication systems should be active whenever the machine is running. Coolant dissipates heat and prevents material distortion, while the lubricant ensures smooth movement of all critical components, minimizing wear and promoting optimal surface finishes for each grinding cycle.

Q: Where is the SGM-450 Surface Grinding Machine manufactured and exported?

A: The SGM-450 is designed, manufactured, and exported by a leading manufacturer and supplier in India. Its quality engineering, compliance with international standards, and reliable export logistics make it a preferred choice for laboratories worldwide.

Q: What is the process for changing the grinding wheel on this machine?

A: Ensure the machine is switched off and disconnected from power. Then, carefully remove the wheel guard, loosen the locking mechanism, and replace the old wheel with a new one (diameter 200 mm). Securely tighten all fasteners and replace the guard before restoring power and resuming operation.

Q: How is the table load capacity and travel beneficial to laboratory users?

A: A load capacity of up to 100 kg and travel ranges of 475 mm (longitudinal) and 225 mm (cross) enable users to grind larger and heavier samples, accommodating a diverse set of laboratory specimens and test pieces while maintaining stability and precision throughout the operation.

Q: What are the key benefits of using the SGM-450 Surface Grinding Machine?

A: Users benefit from exceptional dimensional accuracy, efficient semi-automatic operation, reliable cooling and lubrication systems, and a robust, corrosion-resistant construction. The machines versatile design and ease of use make it an excellent choice for laboratory grinding tasks demanding uniformity and high surface finish quality.
