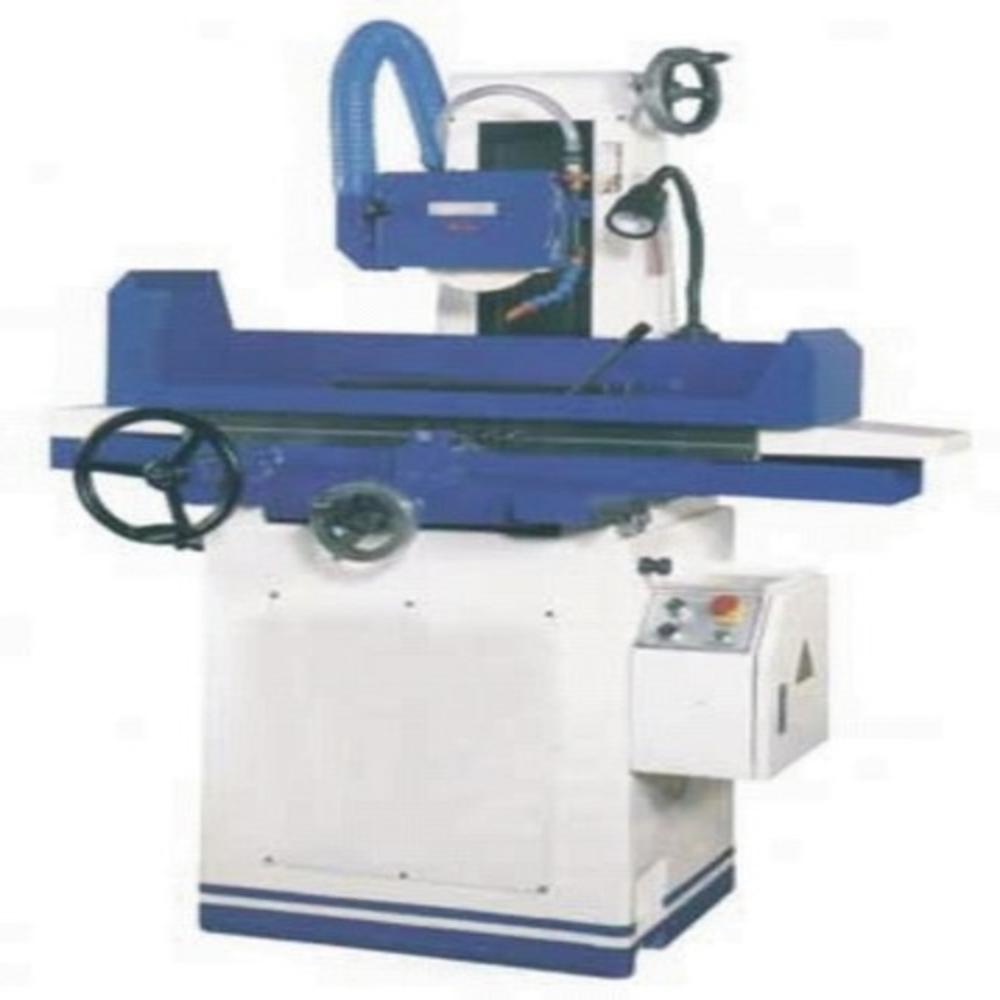

SURFACE GRINDER

SURFACE GRINDER
SURFACE GRINDER
Send Inquiry
Product Code : ETK-1175
Brand Name : Edutek
Product Description
SURFACE GRINDER

Salient Features :

  • Box type construction with ample ribbing for high rigidity.
  • Three linear axes (X, Y, and Z). Linear motion anti friction guide ways for Y and Z axis.
  • Turcite coated Vee and flat guide ways for X axis. Axes drive through precision ball screw and nut driven by AC servomotors.
  • Wheel spindle mounted on high precision bearing lubricated for life.
  • Incremental rotary encoder for position feedback of X & Z axis.
  • Linear encoder for position feedback of Y axis. Three axes CNC system.
  • Continuous lubrication of table with independent power pack.
  • Centralized lubrication for Y & Z axes guide ways and ball nuts. Ideally suited for flat and profile grinding with suitable dressing attachments & fixtures.

Specifications :

  • Table clamping area (LxW) mm1500x320
  • Grinding range (LxW) mm1250x320
  • Distance from table to spindle center mm Min 125 Max 600
  • Stroke - X / Y / Z mm 1450/425/480
  • Rapid traverse - X / Y / Z m/min 25/1/3.5 Continuous feed rate - Z m/min Programmable
  • Minimum programmable increment mm 0.0001
  • Grinding wheel spindle motor kW 8.5 at S6 60%
  • Grinding wheel - Dia x Bore x Width mm 400x127x80
  • Grinding wheel speed (inf. Variable) rpm 1450-2450
  • Control system Siemens/Fanuc or equivalent1
