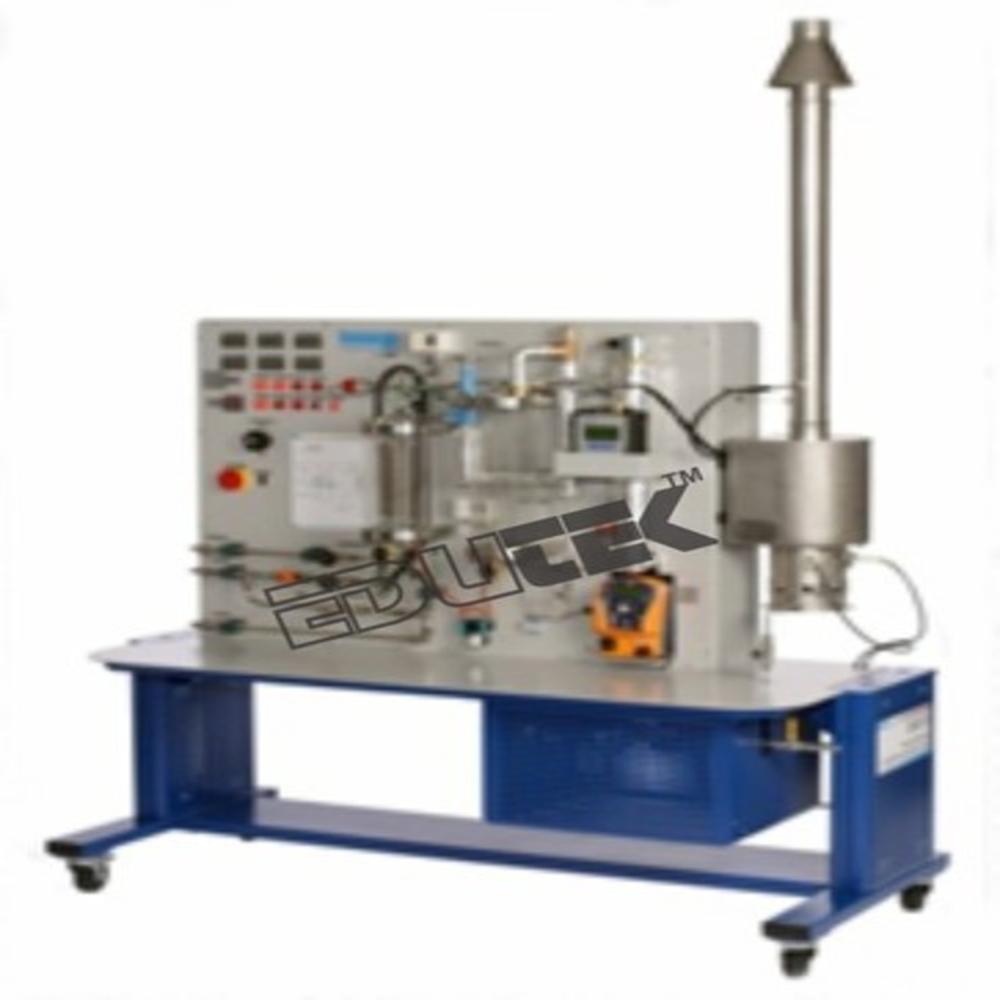

Steam Generator

Product Description

• Gas fired steam generator For wet or superheated steam = experimental unit
• A condenser = air ejector and closed feed water circuit
• Steam boiler = stainless steel
• Burner = ceramic
• Condenser = thick-walled glass cylinder with water cooled coil for continuous operation of steam generator water jet pump to evacuate air
• Feed water system = 2 pumps
• Measurement = temperature, pressure, flow rate
• Analyser = exhaust gas
• Burner Heating capacity = 8 kw
• Fuel consumption = 0,7 kg/hr
• Boiler Nominal pressure = 10 bar
• Steam capacity = 8 kg/hr
• Steam temperature = 225 °C
• Temperature measuring ranges = 0 to 2400 °C
• Pressure measuring ranges = (0...1,6),(10...16) bar
• Power of over heater = 750 w
• Flow rate gas ranges = 0 to 14 L/min
• Cooling water, ranges = 0 to 720 li/hr
• Feed water = 0 to 11.8 li/hr
• Gas supply = propane or natural gas
• Flow rate of gas = 1,5 kg/hr
• Pressure of gas = 50 bar
• Cooling water flow rate = 300 li/hr
• Water jet pump capacity = 720 li/hr
• Supply voltage = 230 v
• Frequency = 50 Hz
• Phase = single
• Dimensions and l x w x h = 1.830x790x1.770 mm
• Weight = 255 kg
• The electrically heated steam generator is intended to be used to supply and requires only a drain connection. An exhaust flue is not necessary. The steam generator is type approved and does not need any specific permission for operation according to German regulations. Function is fully automatic. The short warm up time until steam is output makes extensive experiments possible in a short time. Comprehensive safety equipment ensures safe operation in all circumstances.
