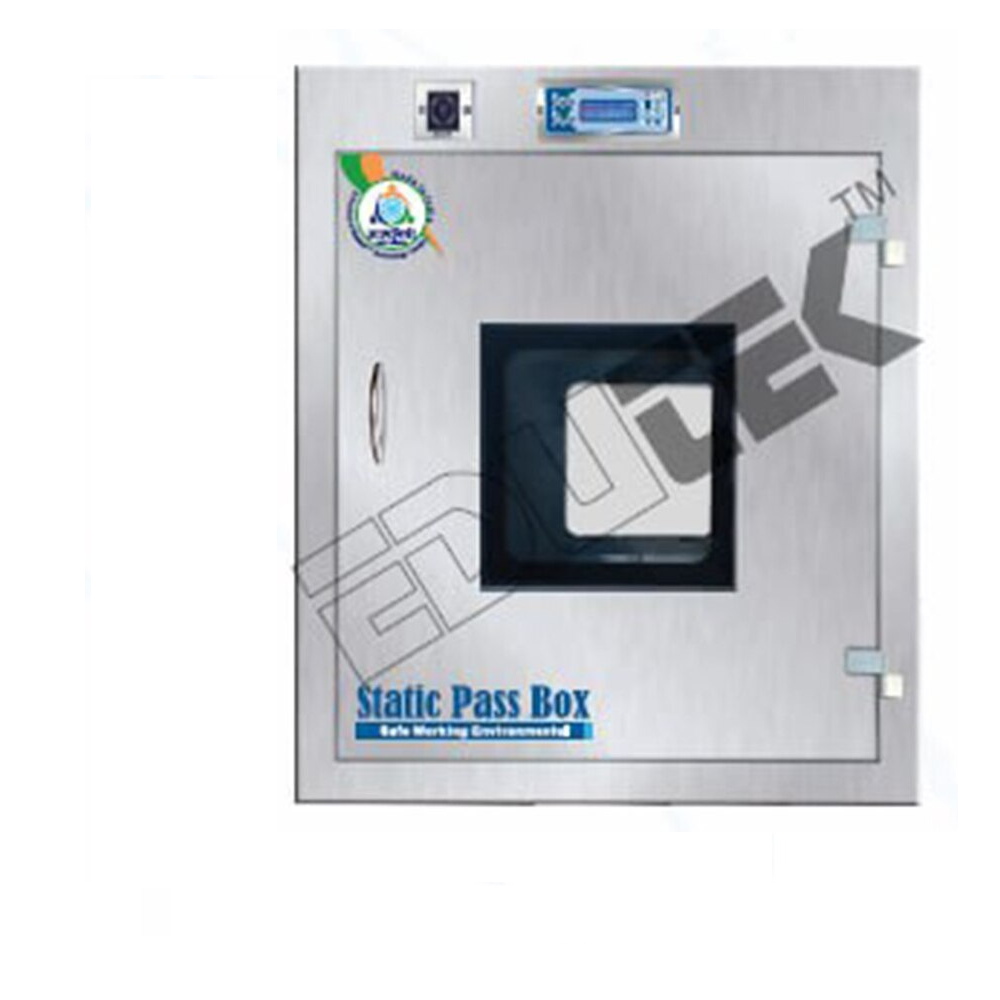

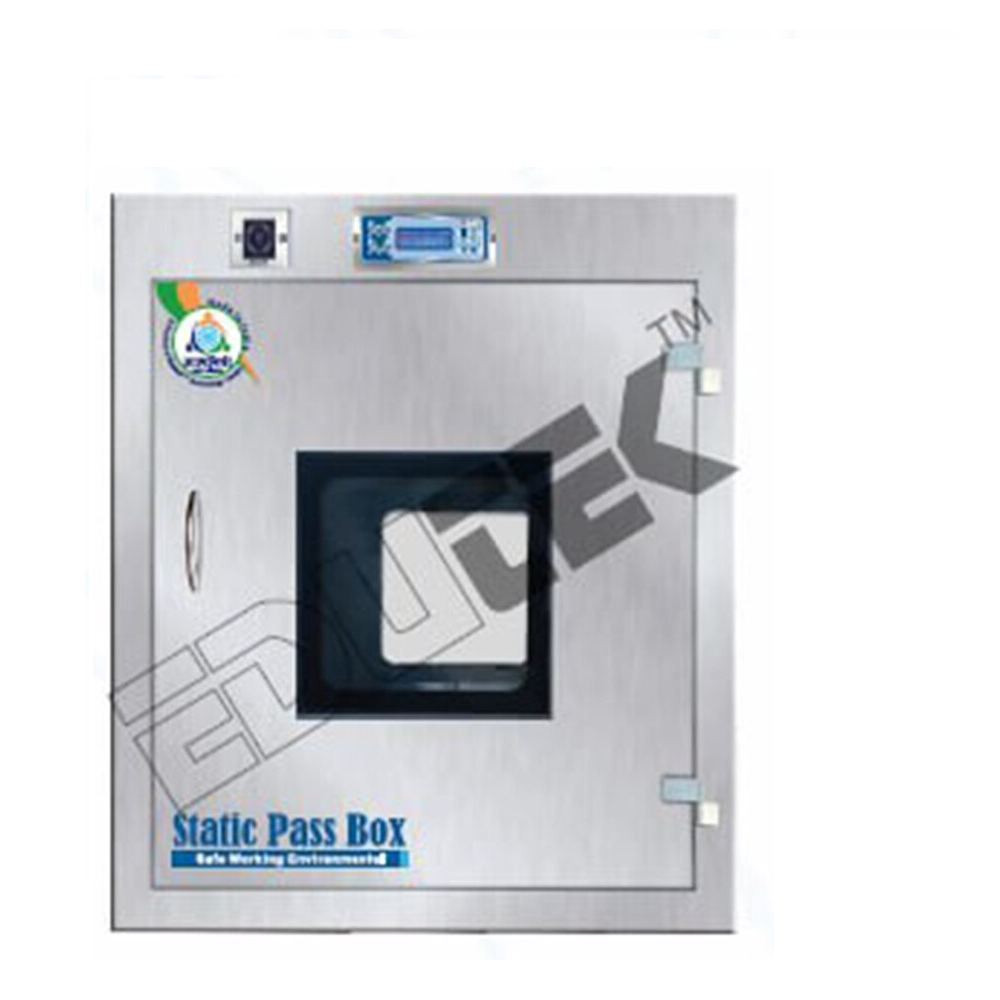

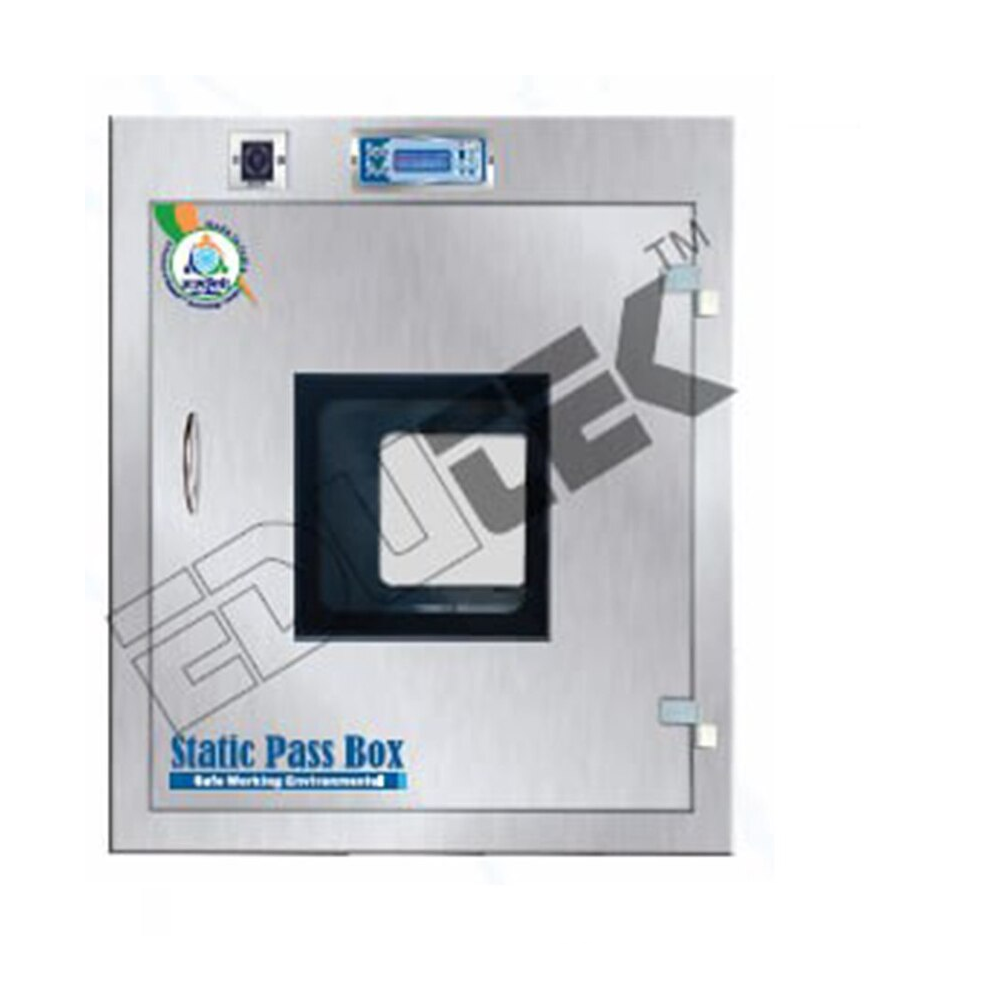

STATIC PASS BOXES

Name: STATIC PASS BOXES
Brand: EDUTEK INSTRUMENTATION
Price: 4500.0 INR
Availability: InStock

Price 4500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

STATIC PASS BOXES Specification

Model No
ET-12058

Feature
Electromagnetic interlocking, excellent sealing, easy cleaning

Measurement Range
Standard size to custom size

Power Source
Electric

Automation Grade
Manual

Voltage
220V AC Volt (v)

Material
SS

Core Components
Body, Door, Interlock, Indicator light

Accuracy
High precision interlock, 2 mm mm

Warranty
1 YEAR

Frequency
50 Hz Hertz (HZ)

Equipment Materials
Stainless Steel (SS)

Type
Static Pass Box

Usage
Transfer of materials between clean areas

Display Type
Analog / Digital

Dimension (L*W*H)
600 x 600 x 600 mm (standard, customizable) Millimeter (mm)

Weight
Approx 30-50 kg Kilograms (kg)

Door Gasket
Silicone / Neoprene for perfect sealing

Noise Level
Silent operation

Glass
Toughened glass view panel

Finish
Matt / Mirror SS finish

Light Indicator
Red/Green for door status

Installation Type
Wall mounted / Floor mounted

Safety
Prevents cross-contamination during transfer

Air Leakage
Minimal, less than 0.5%

Application
Pharmaceuticals, Hospitals, Laboratories, Electronics

Door Type
Double door with mechanical or electromagnetic interlock

Control Panel
Provided with indicator lamps

Interlock
Mechanical / Electromagnetic

Mounting Options
Custom mounting available

Surface
Anti-microbial coating available

Compliance
GMP / ISO standards

Cleaning
Easy clean design, flush surfaces

STATIC PASS BOXES Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About STATIC PASS BOXES

STATIC PASS BOXES It is widely used in the place where the clean air is needed such as micro technology biological laboratory pharmaceutical factory hospital food processing industry LCD electronic factory Pass box is used to transfer goods between rooms of different clean levels of clean room It is reduce times of opening door, prevent the air convection between different rooms and minimize the pollution extent Features External size: 660X570X100 Internal size: 500X 500X500 Material: 304 SS Interlock: Electronical Technical specification UV Lamp 8W 1 HEPA Filter Efficiency 99.999 at0.3um Clean air speed 0.360.54m/s Gross weight 80 Packing size 780X690X1190

Precision-Controlled Transfer Between Clean Environments

The STATIC PASS BOX ET-12058 ensures contamination-free transfer of materials between classified areas. Featuring electromagnetic or mechanical double door interlinking and high-grade silicone/neoprene gaskets, it provides uncompromised environmental integrity. With easy-to-operate manual controls and door status indicators, operators can transfer items with confidence in sensitive applications.

Durable, Hygienic Construction for Demanding Sectors

Built with stainless steel, available in matt or mirror finish, this pass box offers superior resistance to corrosion, chemical exposure, and microbial activity. The flush design supports effortless cleaning and complies with GMP and ISO standards, making it particularly reliable in pharmaceuticals, hospitals, and electronics industries.

Flexible Installation and Customization Options

Whether wall-mounted or floor-mounted, the STATIC PASS BOX accommodates various spatial and operational requirements. Capacity, dimension, and surface coating can be tailored to specific project needs, while mounting options ensure compatibility with multiple cleanroom and laboratory setups.

FAQs of STATIC PASS BOXES:

Q: How does the double door interlock system in the STATIC PASS BOX work?

A: The pass box uses either a mechanical or electromagnetic interlock, ensuring that only one door opens at a time. This mechanism prevents direct airflow and cross-contamination between clean areas during material transfer.

Q: What makes cleaning the STATIC PASS BOX easy and effective?

A: With a smooth, flush stainless steel surface and an anti-microbial coating option, the design minimizes dust traps and allows for quick, thorough cleaning, essential for maintaining compliance in GMP/ISO environments.

Q: Where is the STATIC PASS BOX typically installed?

A: It is installed in cleanroom environments, such as pharmaceutical plants, hospitals, research laboratories, and electronic manufacturing units. Depending on workflow, it can be wall-mounted or floor-mounted, with custom mountings available.

Q: What safety features does the STATIC PASS BOX provide during material transfer?

A: To ensure safety, the pass box incorporates a toughened glass view panel, indicator lamps displaying door status, and high-quality gaskets for perfect sealing. These features collectively help prevent cross-contamination and uphold environmental standards.

Q: What are the standard and customizable options for the STATIC PASS BOX?

A: The standard unit measures 600 x 600 x 600 mm but can be customized for size, mounting, surface finish, and control display. Additional features, such as anti-microbial coating and specialized gaskets, can be selected based on application needs.

Q: How does the STATIC PASS BOX benefit cleanroom operations in critical industries?

A: It minimizes contamination, reduces manual intervention, and enhances operational safety during material transfer. The silent operation and high-accuracy interlock system support rigorous cleanroom protocols required by pharmaceuticals, hospitals, and electronic labs.
