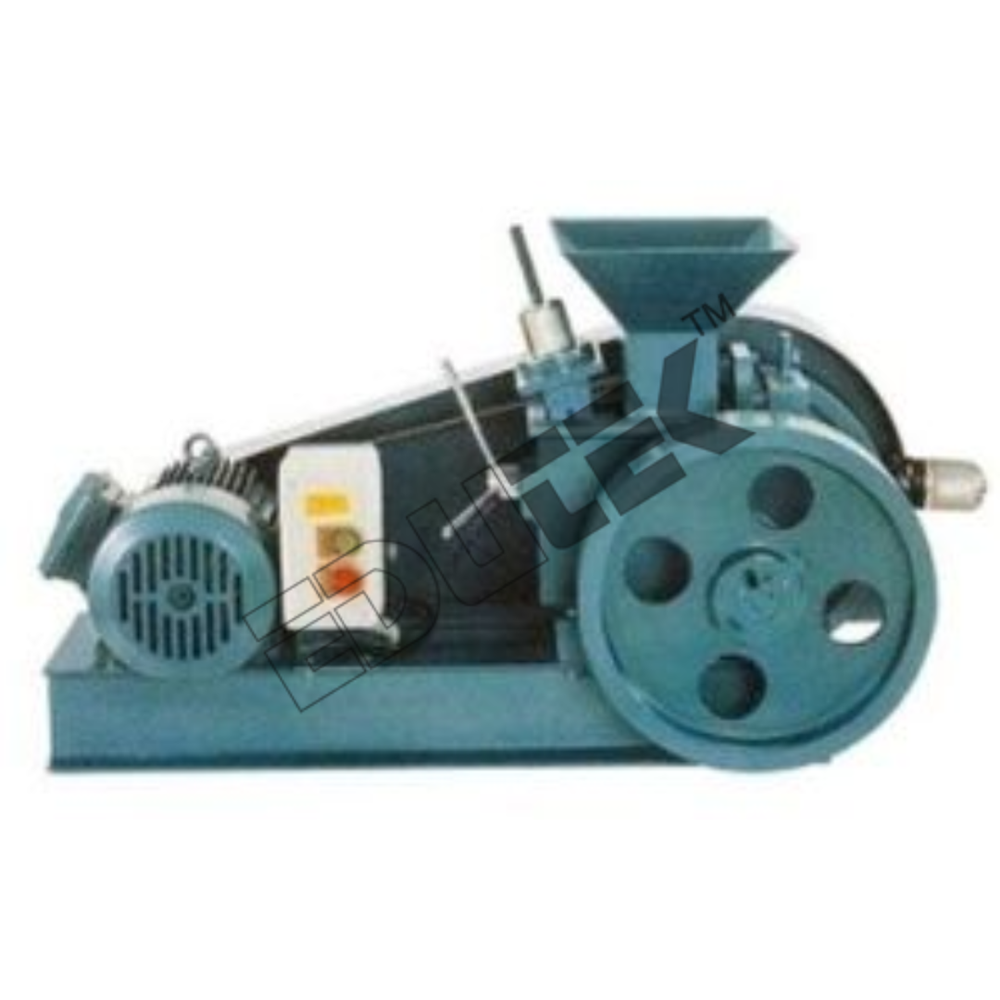

Small Laboratory Jaw Crusher

Get a Price/Quote

Small Laboratory Jaw Crusher Specification

Load Capacity
No load capacity specified for this model

Capacity
80 - 100 kg/hr

Weight
70 kg (approx.)

Phase
Single or Three Phase

Voltage
220/440 V

Product Type
Small Laboratory Jaw Crusher

Machine Speed
300-400 RPM

Frequency
50 Hz

Control System
Manual

Operating Temperature
Ambient

Color
Grey

Speed Range
300 - 400 RPM

Dimension (L*W*H)
600 mm x 300 mm x 450 mm

Features
Compact design, simple operation, durable construction, easy to clean

Power Source
Electric

Application
Used for crushing aggregates, ores, minerals, coal, coke, chemicals and other similar materials for laboratory use

Power Consumption
Low

Power
3 HP

Automatic Grade
Manual

Material
Mild Steel

Small Laboratory Jaw Crusher Trade Information

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Western Europe, Africa, Middle East, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Small Laboratory Jaw Crusher

Small Laboratory Jaw Crusher

Small Laboratory Jaw Crusher The laboratory crusher is designed to speed up the crushing of aggregates, ores, minerals, coal, coke, chemicals and other similar materials. It is compact and of rugged construction for general laboratory or small pilot plant operation. Two jaws of manganese steel are provided in the jaw crusher. The moveable jaw produces two blows for every revolution. Thus reducing over sizing to a minimum. A combination of forward and downward stroked with a rocking action exerts pressure on the coarser material, yet permits the finished material to pass through the jaws. A hopper is provided at the top for feeding materials. The smooth jaws ensure a uniform product and easy cleaning is possible.

Jaw size : 100 x 150 mm Max.
Size of fed : 50 mm (approx).
Product discharge size : 5 mm to 15 mm.
Capacity : 100 to 200 kg. (Based on material).
Operation : 40 V, 3 pH, 50 Hz. A.C. Complete with a 3 H.P. motor, a starter, belt, pulley drive and mounting. Lab-Pulverize.
but Jaw size : 150 X 200 mm Max.
size of feed : 100 mm (approx).
Product discharge size : 5 mm to 20 mm.
Capacity : 250 to 400 kg. (Based on material).
Operation : 440 V, 3 pH 50 Hz. A.C.
Spares: Pair of Jaw 100 mm x 150 mm Pair of Jaw 150 mm x 200 mm.

Precision Crushing for Laboratory Applications

This laboratory jaw crusher is designed to deliver controlled, repeatable crushing performance in research and quality control labs. It can process a variety of materials including minerals, coal, ores, and aggregates, supporting essential sample preparation and analysis. Its adjustable discharge size and robust manganese steel jaws provide flexibility and long equipment life.

User-Friendly Operation and Design

The crusher features a manual, easy-to-use control system. Its compact footprint fits standard laboratory benches, while the powder-coated finish and mild steel body provide resistance to corrosion. Cleaning and maintenance are simplified to support seamless operation in demanding environments.

Durability and Energy Efficiency

Constructed from premium-grade materials, the jaw crusher guarantees ongoing reliability. The high manganese steel jaws and efficient belt-drive mechanism contribute to low power usage, while the 3 HP electric motor ensures stable speed for consistent results.

FAQs of Small Laboratory Jaw Crusher:

Q: How is the discharge size adjusted on this laboratory jaw crusher?

A: The discharge opening can be manually adjusted between 6 mm and 18 mm, allowing precise control over the final particle size to suit your laboratory needs.

Q: What materials can be processed with this jaw crusher?

A: This crusher is suitable for processing aggregates, minerals, ores, coal, coke, and chemicals, making it versatile for various laboratory testing and sample preparation requirements.

Q: When should I use this jaw crusher in my laboratory?

A: This jaw crusher is ideal for laboratories requiring reliable sample preparation of rocks, mineral ores, coal, or chemicals, especially during research, analysis, or quality control procedures.

Q: Where can this crusher be installed in a laboratory setting?

A: Thanks to its compact design (600 mm x 300 mm x 450 mm), the crusher can be conveniently positioned on lab benches or dedicated equipment tables in most laboratory environments.

Q: What is the process of operating the jaw crusher safely?

A: To operate, ensure the power supply matches the voltage (220/440 V, single or three phase). Place material onto the movable jaw, adjust the discharge gap as needed, and start the unit using the manual controls. Always follow safety guidelines and wear protective gear.

Q: What are the main benefits of using this jaw crusher for laboratory applications?

A: Key benefits include ease of use, precise adjustment, durable construction, efficient energy consumption, and straightforward cleaningmaking sample preparation fast and consistent for reliable testing outcomes.
