Binder Extractor

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Binder Extractor Specification

Accuracy
0.1%

Product Type
Binder Extractor

Screw Size
M6

Machine Speed
Adjustable

Control System
Digital/Manual

Sensor
Pressure Sensor

Application
Bitumen Extraction from Asphalt

Resolution
0.01 g

Color
Blue & Silver

Features
Corrosion-resistant, Durable body, Easy to operate

Power
Electrical, 220V AC

Speed Range
0-60 rpm

Power Source
Electric

Voltage
220 V

Phase
Single Phase

Power Consumption
120 W

Dimension (L*W*H)
350 x 220 x 380 mm

Capacity
150 gm

Stroke Length
100 mm

Operating Temperature
Up to 70C

Load Capacity
150 gm

Frequency
50 Hz

Weight
12 kg

Automatic Grade
Manual/Semi-automatic

Material
Stainless Steel/Aluminum

Cup/Bowl Material
Stainless steel, removable for cleaning

Finish
Powder coated for durability

Solvent Compatibility
Suitable for use with standard extraction solvents (e.g. trichloroethylene)

Drainage System
Provided with spout and valve for safe liquid removal

Operation Mode
Centrifugal extraction via manual rotation

Sample Preparation
For road construction, asphalt analysis, bitumen content testing

Discharge Valve
Integrated at bottom for easy draining

Stand/Base
Stable cast iron support legs with grip pads

Lid Type
Lockable screw lid with gasket

Binder Extractor Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA), Cash in Advance (CID), Cheque

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Binder Extractor

Binder Extractor

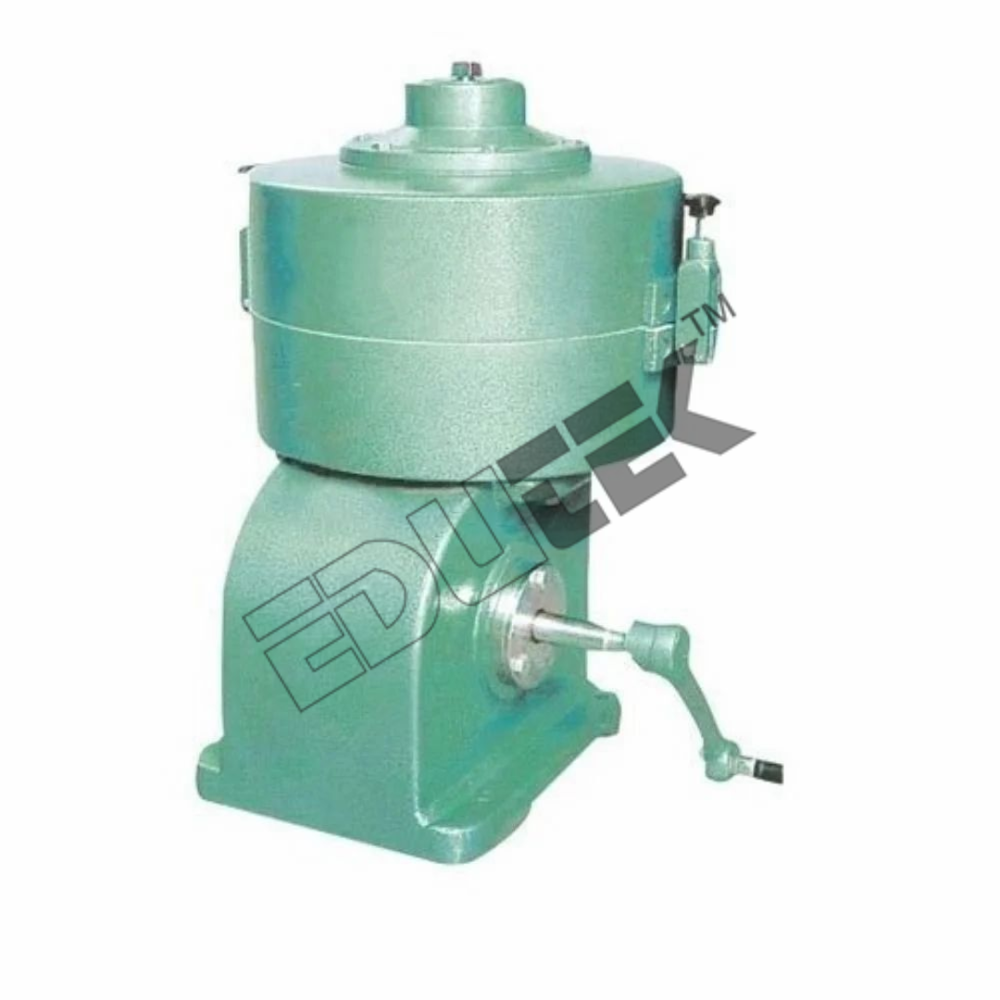

Binder Extractor (Hand Operated)

The Instrument is used for determination and checking of Bitumen percentage in Bituminous mix, the mix is added with a solvent and dissolved bitumen is removed by centrifugal action. Consists of a removable Aluminum rotor bowl, Capacity 1500 gms. With a cap and tightening nut. The bowl assembly is mounted on a vertical shaft, which protrudes from a cast housing. This shaft and thus the bowl is rotated fast manually by enclosed gears in the cast body and handle. Solvent is introduced during the test through the holes in the cap of the housing. A drain is provided to collect dissolved Bitumen coming out of the rotating bowl and getting collected in the housing

Durable and Safe Extraction Mechanism

Constructed from corrosion-resistant stainless steel and aluminum, the Binder Extractor guarantees lasting performance even with demanding solvents like trichloroethylene. The lockable screw lid, integrated discharge valve, and grip-pad supported cast iron legs contribute to safe, spill-free, and stable operations throughout the extraction process.

Precision and Versatility in Asphalt Testing

Suitable for both manual and semi-automatic operation, this extractor offers precise control over machine speed (060 rpm), sample load (up to 150 gm), and a resolution as fine as 0.01 g. Its compatibility with standard solvents and operating temperature up to 70C makes it a reliable solution for laboratories and field applications in bitumen analysis.

FAQs of Binder Extractor :

Q: How do I safely operate and clean the Binder Extractor after use?

A: To safely operate, securely fix your sample, tighten the lid, and set the desired speed for manual centrifugal extraction. After use, undo the screw lid, remove the stainless steel bowl for cleaning, and use the discharge valve to drain any remaining solvent. Always ensure the device is powered off and cooled before cleaning and maintenance.

Q: What type of solvents can be used with this Binder Extractor model?

A: The machine is compatible with standard extraction solvents such as trichloroethylene. Its corrosion-resistant build ensures safe and effective operation with commonly used solvents in bitumen and asphalt testing applications.

Q: When should I use the Binder Extractor during the asphalt testing process?

A: Utilize the Binder Extractor during the bitumen content determination phase of asphalt analysis. It is specifically designed for this purpose, delivering accurate extraction results vital for quality assurance in road construction projects.

Q: Where is this Binder Extractor most effectively used?

A: This extractor is best suited for laboratories conducting asphalt and bitumen content testing, as well as in field labs for road construction projects. Its robust construction and portability make it suitable for both stationary and mobile testing environments.

Q: What process does the Binder Extractor use to separate bitumen from asphalt samples?

A: It employs centrifugal extraction, wherein the manual rotation creates a force that separates bitumen from the aggregate. The integrated drainage system then allows for easy removal of the extracted liquid through a spout and valve.

Q: How does the extractor benefit road construction and quality control processes?

A: By providing precise and repeatable bitumen content measurements, the extractor supports quality control standards in road construction. Its accuracy, user-friendly design, and durable construction help ensure compliance and maximize efficiency during materials testing.
