Send InquirySieve Segregation Test Set
MOQ : 1 Set
Sieve Segregation Test Set Specification
- Classification
- Civil Engineering / Concrete Technology
- Usage
- Vital for mix design validation and site quality control for SCC used in deep foundations or complex formwork
- Material
- Stainless Steel, Plastic
- Operate Method
- Sieve Filtration: Fresh concrete is poured onto the sieve after a standing period; the weight of the mortar passing into the pan determines the segregation resistance
- Automation Grade
- Manual
- Core Components
- Stainless Steel Sieve Plastic Bucket
- Temperature Range
- NA Celsius (oC)
- Power Source
- None
- Feature
- Durable and easy to use
- Warranty
- 1 year
- Product Type
- Concrete Stability Tester / SCC Quality Control
- Color
- Select (Typically Natural Steel/Brass and White/Grey Plastic)
- Application
- Civil Engineering Labs, Concrete Batching Plants, Construction Sites
- Measurement Range
- Aggregate Sizes: 0.1 mm to 4 mm
- Accuracy
- High %
- Capacity
- 5 liters Ltr
- Equipment Materials
- Stainless Steel Plastic
- Type
- Segregation Test Set
- Display Type
- None
- Dimension (L*W*H)
- Diameter 300 mm x Height 200 mm Millimeter (mm)
- Weight
- 2 kg Kilograms (kg)
About Sieve Segregation Test Set

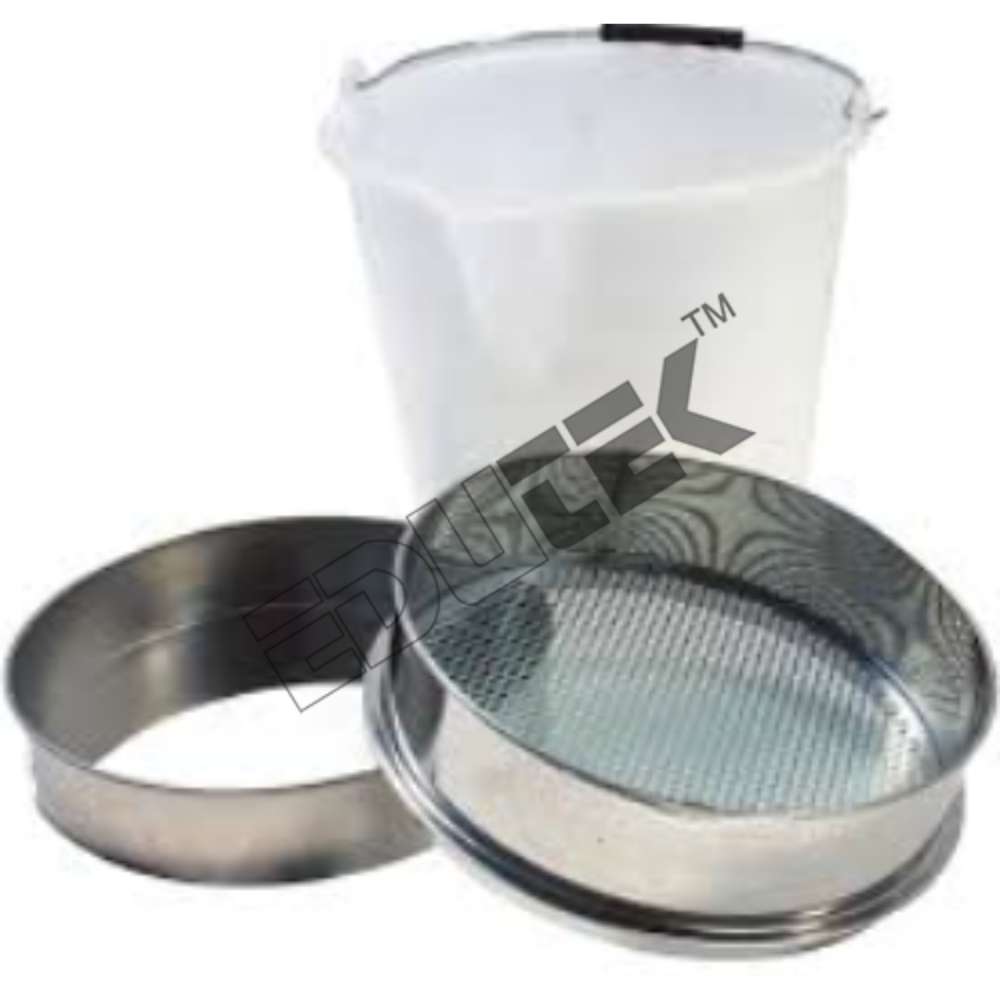

SIEVE SEGREGATION TEST SET
- Comprises of 300mm dia
- Perforated plates sieve (5mm apertures),
- Pan and plastic bucket
- 11l capacity,
- Conforming to EN 12350-11
FAQs of Sieve Segregation Test Set:
Q: What is the measurement range of the Sieve Segregation Test Set?
A: The Sieve Segregation Test Set has a measurement range for aggregate sizes from 0.1 mm to 4 mm.Q: What is the capacity of the Sieve Segregation Test Set?
A: The capacity of the Sieve Segregation Test Set is 5 liters.Q: Is the Sieve Segregation Test Set suitable for aggregate segregation testing?
A: Yes, the Sieve Segregation Test Set is specifically designed for aggregate segregation testing.Q: What are the core components of the Sieve Segregation Test Set?
A: The core components of the Sieve Segregation Test Set include stainless steel sieve and plastic bucket.Q: What is the warranty period for the Sieve Segregation Test Set?
A: The Sieve Segregation Test Set comes with a 1-year warranty.Q: What is the dimension of the Sieve Segregation Test Set?
A: The Sieve Segregation Test Set has dimensions of Diameter 300 mm x Height 200 mm.Q: What is the weight of the Sieve Segregation Test Set?
A: The Sieve Segregation Test Set weighs 2 kg.
