Servo Motor Trainer

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Servo Motor Trainer Specification

Resolution
0.01 Degree (Position Control)

Power Source
AC Powered

IP Rating
IP20

Input
Digital Input Signals

Features
Overload & Short Circuit Protection, Modular

Sensors Specification
Integrated Encoder Feedback

Components
AC Motor: Panasonic servo motor A4 or equivalent. Motor Driver: Panasonic Servo driver A4 or equivalent.

Usage
Educational and Training Purposes

Output
Servo Position Output

Operating Temperature
0C to 50C

Interface
Built-in Control Panel, Test Points

Response Time
Fast Response (<5 ms)

Power Supply
DC Power Supply

Product Type
Motor Trainer Kit

Application
Technical Training Institutes, Colleges, Universities

Rated Voltage
220V AC

Supply Voltage
230V AC, 50Hz

Size
Standard Laboratory Size

Dimension (L*W*H)
500 x 370 x 220 mm

Function
AC Servo Motor Trainer

Color
Grey and Blue

Weight
9 Kg approx.

Warranty
1 Year

Thickness
3 mm (Panel Thickness)

Capacity
0.4 Nm Torque

Current Rating
2.5A

Frequency
50Hz

Control Method
Manual & Automatic (via PLC or PC)

Panel Material
Powder-coated MS Sheet

Indicator Lamps
For Power and Motor Status

Motor Power
50W

Safety
Fuse and Emergency Stop

Motion Modes
Position, Speed, and Torque Control

Accessories Included
Connecting Wires, Manuals, Experiment Sheets

Servo Motor Trainer Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Servo Motor Trainer

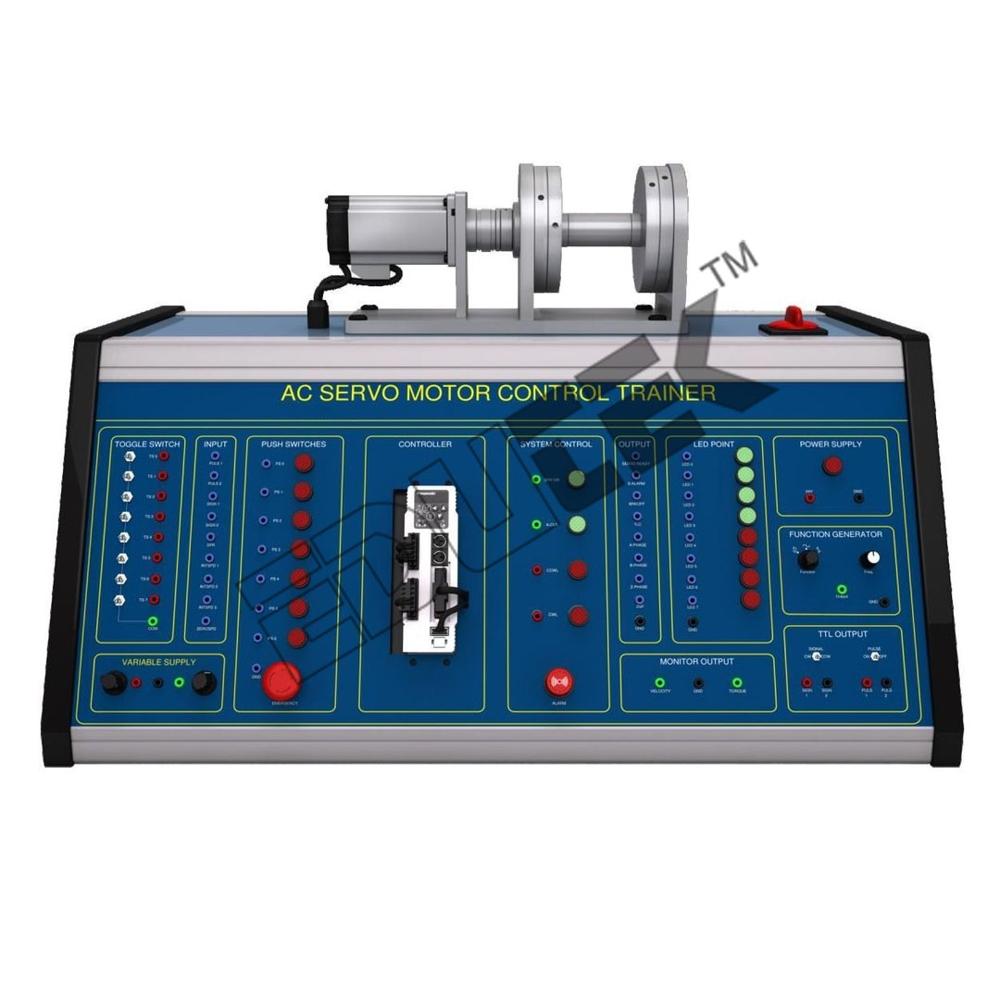

AC Servo Motor Trainer

The trainer Also supports various applications and Their requirements by featuring automated gain tuning function, Damping Control Which achieves a stable "Stop Performance" even in low-stiffness machine and high speed motor.

Features Of Trainer

Servo Industrial Grade installed
Installed Control Circuits
drivers Installed
Protection Circuits Installed

Technical Feature

AC Motor: Panasonic servo motor A4 or equivalent.
Motor Driver: Panasonic Servo driver A4 or equivalent.
Power Supply:
DC Power Supply
Variable Power Supply
Control Inputs:
Function Generator
Connector for PLC interface
Velocity Response: 1KHz
Vibration Reduction
damping Control
Control Modes: Position, Velocity & Torque
Dynamic Brake: Built In
Closed Loop Control: Position & Velocity
Torque Limit: 2 possible values

Advanced Versatility and Control

Experience complete flexibility in learning servo motor fundamentals with both manual and automatic control modes. The trainer supports seamless switching between position, speed, and torque control, allowing students to interactively explore advanced motor concepts in a hands-on environment. Integrated with a digital input system and servo position output, it is designed for practical and theoretical understanding of servo technology.

Safety and Durability You Can Trust

Constructed from sturdy 3 mm powder-coated MS sheet and equipped with overload and short-circuit protection, this trainer guarantees safe, long-lasting performance. Safety features such as a built-in fuse, emergency stop, and indicator lamps for power and motor status provide peace of mind during use, making it ideal for repeated lab sessions.

Comprehensive Learning Accessories

Each trainer includes all essential accessories: connecting wires, detailed manuals, and experiment sheets. These resources enable educators and students to undertake diverse experiments, track motor responses, and understand servo mechanics deeply. The built-in test points and clear wiring further support exploration and troubleshooting in a classroom setting.

FAQs of Servo Motor Trainer:

Q: How does the Servo Motor Trainer support both manual and automatic control?

A: The Servo Motor Trainer features a user-friendly control panel for manual operation and can also be interfaced with a PLC or PC for automatic control, enabling students to experiment with different control strategies in real time.

Q: What safety mechanisms are integrated into the trainer?

A: The trainer incorporates multiple safety features, including a fuse for circuit protection, an emergency stop button for immediate shutdown, and indicator lamps to display power and motor status, ensuring secure operation for all users.

Q: When is this trainer typically used during educational programs?

A: This trainer is designed to be used during laboratory sessions in technical training institutes, colleges, and universities, providing practical experience in servo motor control at various stages of academic curricula.

Q: Where can the Servo Motor Trainer be installed?

A: The trainers compact, standardized laboratory size (500 x 370 x 220 mm) allows it to be easily placed on lab benches in educational institutions, making it highly accessible for group or individual experiments.

Q: What is the process for connecting and operating the trainer?

A: To operate the trainer, connect it to a 230V AC power supply, use the supplied wires to set up experiments, refer to the included manuals and experiment sheets, and utilize the control panel or interface with a PLC/PC for varied control methods.

Q: What benefits does this servo motor trainer offer for students?

A: The trainer provides hands-on exposure to controlling servo motors in different motion modes, enhancing technical understanding, troubleshooting skills, and readiness for real-world automation applications. Its fast response time and high resolution allow precise experimentation.

Q: Which components are included in the trainer setup?

A: It includes a Panasonic A4 (or equivalent) AC servo motor and driver, built-in control panel, integrated encoder feedback, indicator lamps, connecting wires, manuals, experiment sheets, and essential safety elements, offering a comprehensive educational toolkit.
