SAY Bolt Viscometer

Name: SAY Bolt Viscometer
Brand: EDUTEK INSTRUMENTATION
Price: 3900.0 INR
Availability: InStock

Price 3900.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SAY Bolt Viscometer Specification

Frequency
50 Hz

Capacity
50 ml (Sample Volume)

Color
Silver/Light Grey

Product Type
SAY Bolt Viscometer

Sensor
Manual operation, no electronic sensor

Application
Used for determination of viscosity of petroleum products

Power
230V AC, 50 Hz

Phase
Single Phase

Control System
Manual with digital timer

Operating Temperature
Ambient to 150°C

Accuracy
Complies with ASTM D88 standards

Power Source
Electric

Features
Standard orifice jet, oil cup, receiver flask, digital timer, insulated heating bath, stirrer, thermometer provision

Voltage
230V

Resolution
0.1 sec (Digital Timer)

Power Consumption
40 W max.

Weight
Approx. 8 kg

Dimension (L*W*H)
355 x 205 x 410 mm

Automatic Grade
Manual

Material
Stainless steel chamber, outer mild steel powder coated

Orifice Type
Standard orifice (Universal and Furol jets provided)

Bath Type
Double wall insulated heating bath

Compliance
ASTM D88, IP 72

Finish
Powder coated outer body for corrosion resistance

Thermometer Range
0C to 150C (Supplied but optional range available)

Stirrer Type
Mechanical stirring arrangement

Drainage System
Fitted with drainage valve for easy cleaning

Sample Collection Flask Capacity
60 ml (Standard receiver flask provided)

Timer Type
Digital, up to 999.9 seconds

Safety Features
Thermal fuse and over-temperature protection

Cup Material
Brass with nickel plating

SAY Bolt Viscometer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About SAY Bolt Viscometer

SAY Bolt Viscometer

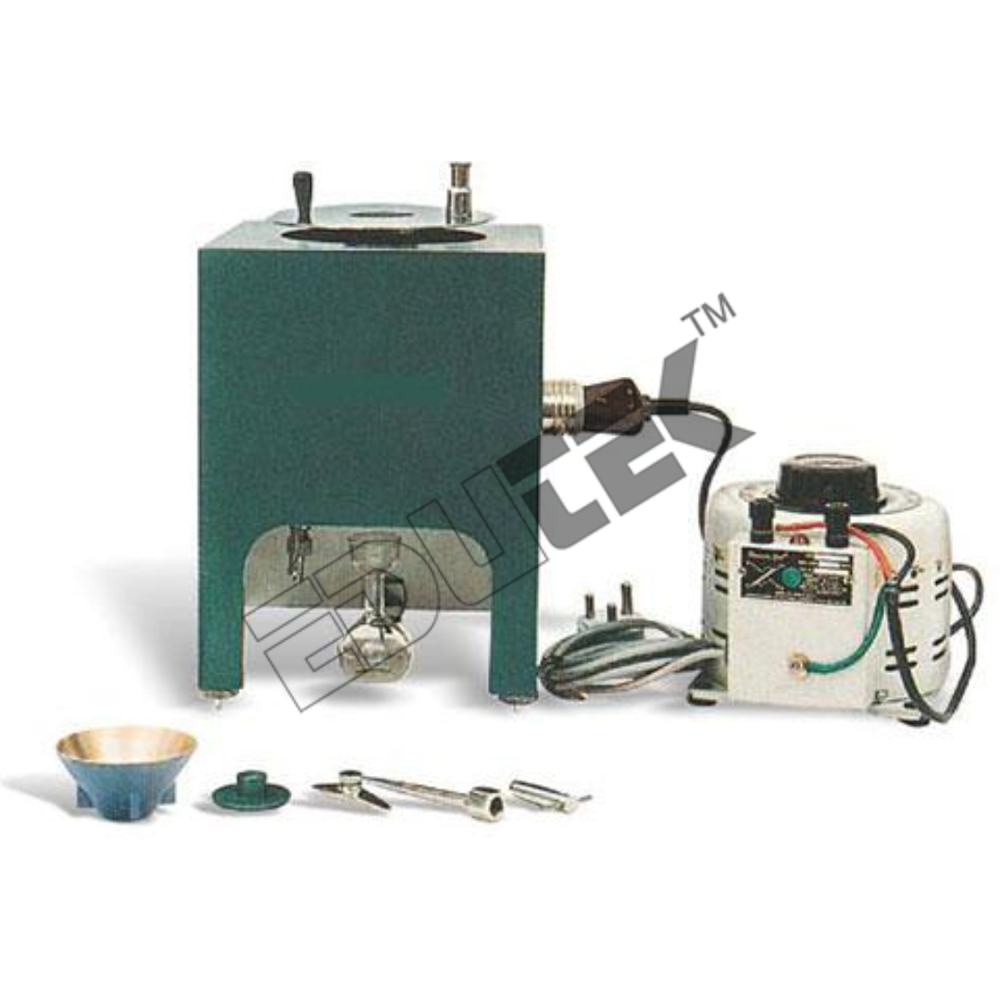

Say bolt Viscometer, Electrically Heated, ASTM D88, D244, AASHTO T72 for the empirical measurement of Say bolt Viscosity of petroleum products at specified temperatures between 70o F and 210o F. This is also used for determining the Saybolt Furol Viscosity of bituminous materials at temperatures of 250, 275, 300, 350, 400 and 450 F. It comprises one each of cylindrical Oil cup, Universal Tip, Furol Tip, Bath Fitted with immersion Heater mounted on a stand. Dimmer stat for temperature control, Stirrer with shield. Complete with insulated handle and thermometer support receiving flask, withdrawal tube, filter funnel, thermometer support for cup and circular spirit level. Suitable for operation on 230 V 50 Hz, Single Phase, A.C.

Superior Insulation and Safety

With its double wall insulated heating bath, this viscometer ensures uniform temperature distribution and energy efficiency. Integrated thermal fuse and over-temperature protection safeguard users and maintain device integrity, making it safe for continuous laboratory use.

Precise Digital Timing Mechanism

The built-in digital timer functions up to 999.9 seconds and offers 0.1 second resolution, allowing for highly accurate measurements. Easy manual operation and clear display make it effortless to control test durations for consistent viscosity readings.

Robust Construction and Easy Cleaning

The powder coated metal exterior resists corrosion, while the internal drainage system ensures hassle-free maintenance and cleaning. The combination of stainless steel chamber and brass cup with nickel plating promises durability and longevity, even under frequent use.

FAQs of SAY Bolt Viscometer:

Q: How does the SAY Bolt Viscometer determine viscosity of petroleum products?

A: The viscometer measures flow time of a fixed oil volume through a standard orifice under regulated temperature, as specified by ASTM D88. Using the digital timer and mechanical stirring, it provides precise viscosity readings.

Q: What are the safety features incorporated in the viscometer?

A: This instrument includes a thermal fuse and over-temperature protection, ensuring user safety by automatically shutting off or limiting heat if unsafe conditions are detected.

Q: When should the universal or Furol jet be used during testing?

A: Choice of jet depends on sample characteristics: the universal jet suits lighter oils, while the Furol jet is meant for more viscous petroleum products, as outlined in ASTM D88 protocols.

Q: Where is the SAY Bolt Viscometer typically installed or used?

A: It is commonly used in laboratories, research facilities, and quality control departments across oil refineries, petrochemical plants, and academic institutions throughout India.

Q: What is the process for cleaning after a test?

A: The drainage valve allows for easy removal of used samples and washing of internal components, helping maintain hygiene and readiness for subsequent tests.

Q: What are the benefits of the digital timer in manual operation?

A: The digital timer facilitates precise measurement, reduces human error, and ensures consistency in test results, critical for compliance with ASTM D88 standards.

Q: How is the temperature regulated during operation?

A: Temperature is manually controlled using the integrated thermometer and insulated heating bath, maintaining accurate and stable test conditions from ambient to 150C.
