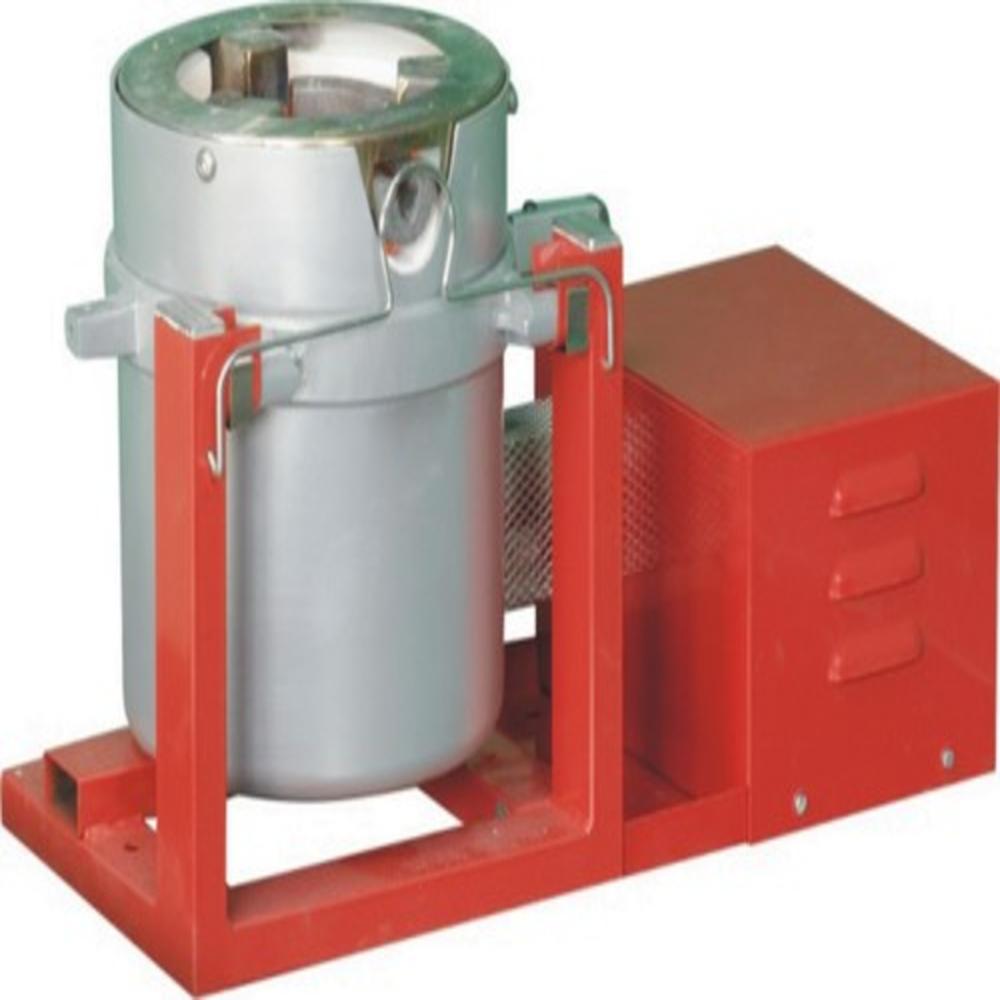

SAFETY TILT CRUCIBLE FURNACE

Price 700.0 INR/ Unit

Get a Price/Quote

MOQ : 2 Units

SAFETY TILT CRUCIBLE FURNACE Specification

Product Type
SAFETY TILT CRUCIBLE FURNACE

Temperature Range
950-1000 Celsius (oC)

Accuracy
100 % %

Power Source
MANUAL

Classification
SAFETY TILT CRUCIBLE FURNACE

Warranty
1 YEAR

Color
SILVER AND RED

Feature
Highly Efficient

Usage
SAFETY TILT CRUCIBLE FURNACE

Equipment Materials
METAL

Type
SAFETY

About SAFETY TILT CRUCIBLE FURNACE

SAFETY TILT CRUCIBLE FURNACE

Edutek Instrumentation are Manufacturer and Supplier Company in India,We are Exporter in India and other country ,Crucible Furnace is usually placed on a Raised Sand Tray (1200 (L) x 800 (W) x 300mm (H)) which removes the need for a

casting pit. The sand tray raises the crucible to a more convenient working height and means that only protective leggings are needed

rather than protective footwear. Fitted with a high performance burner and control system incorporating a fully automatic start

sequence which is initiated by the touch of a switch. The furnace offers fast melt times over a wide range of metals, from aluminium to

bronze, brass, copper, gold and silver. The burner has a piezo igniter and is fitted with flame failure protection. An alternative drum

assembly available with a smaller lift out crucible with a hinged lid. A durable stainless steel top tile preheat

and Pouring Tools which are available as optional extras.

Key Features

Runs on either Natural Gas or on LPG bottled gas
Melts up to 2 litres of Aluminium in 35 minutes
Temperature range - 950Ã‚ÂC to 1000Ã‚ÂC
Melt time of 40 - 60 minutes based on Grade LM4 Aluminium
Safety tilt crucible removes the need to lift the pot unless required. If required, a special lifting frame lifts the whole drum safely

Superior Safety Features

Engineered with a tilt mechanism, this crucible furnace prioritizes user safety, allowing controlled pouring of molten material. The robust construction minimizes spill risks, ensuring safe operation in laboratory settings. Enhanced safety makes this furnace ideal for academic, research, and industrial labs handling high-temperature processes.

Unmatched Efficiency and Accuracy

Delivering 100% accuracy, the SAFETY TILT CRUCIBLE FURNACE guarantees dependable results every time. Its efficient heating system reaches temperatures up to 1000C, supporting consistent melting and analysis. Laboratories can trust this equipment to maintain rigorous quality standards during testing and material processing.

Robust Laboratory Utility

Built from durable metal and finished in silver and red, this manual power source furnace offers dependability and longevity. Its adaptability suits varied laboratory needs, from small-scale testing to continuous production. With manufacturing and export support from India, this furnace merges high performance with accessibility.

FAQs of SAFETY TILT CRUCIBLE FURNACE:

Q: How does the tilt mechanism enhance the safety of the crucible furnace?

A: The tilt mechanism allows operators to safely pour molten materials from the crucible without direct contact, reducing accident risks and ensuring better handling during high-temperature processes.

Q: What are the primary laboratory applications for this furnace?

A: This furnace is primarily used for melting metal samples and conducting material testing in research, academic, and industrial laboratories requiring precise, high-temperature operations.

Q: When should regular maintenance be performed on the SAFETY TILT CRUCIBLE FURNACE?

A: It is recommended to perform basic maintenance and inspection every three to six months, or according to usage intensity, to ensure the furnace operates efficiently and safely over its service life.

Q: Where is the SAFETY TILT CRUCIBLE FURNACE manufactured and supplied from?

A: The furnace is manufactured and supplied from India by reputable exporters, ensuring high-quality standards and reliable international delivery.

Q: What is the process for operating the manually powered SAFETY TILT CRUCIBLE FURNACE?

A: To operate, manually charge samples into the metal crucible, set the required temperature, monitor the melting process, and utilize the tilt function to safely pour molten material when ready.

Q: What are the key benefits of using this model in laboratory settings?

A: Key benefits include highly accurate results, efficient heating, enhanced operator safety with the tilt feature, durability, and assured performance with a one-year warranty.
