PNEUMATIC TECHNOLOGY TRAINER DOUBLE FACE

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PNEUMATIC TECHNOLOGY TRAINER DOUBLE FACE Specification

Automation Grade
Semi-Automatic

Core Components
Pneumatic actuators, valves, air compressor, control switches, tubing, pressure gauges

Feature
Highly Efficient

Voltage
220-240 V AC

Model No
PTT-DF2024

Frequency
50/60 Hz

Temperature Range
Ambient

Accuracy
100 %

Power Source
Electric

Measurement Range
0-10 bar

Equipment Materials
Powder coated metal frame, high-quality transparent acrylic panels, industrial-grade pneumatic components

Type
Double Face Pneumatic Trainer

Usage
Laboratory

Display Type
Analog and digital indicators

Dimension (L*W*H)
Approx. 1800 x 800 x 1700 mm

Weight
Approx. 120 kg

About PNEUMATIC TECHNOLOGY TRAINER DOUBLE FACE

PNEUMATIC TECHNOLOGY TRAINER DOUBLE FACE

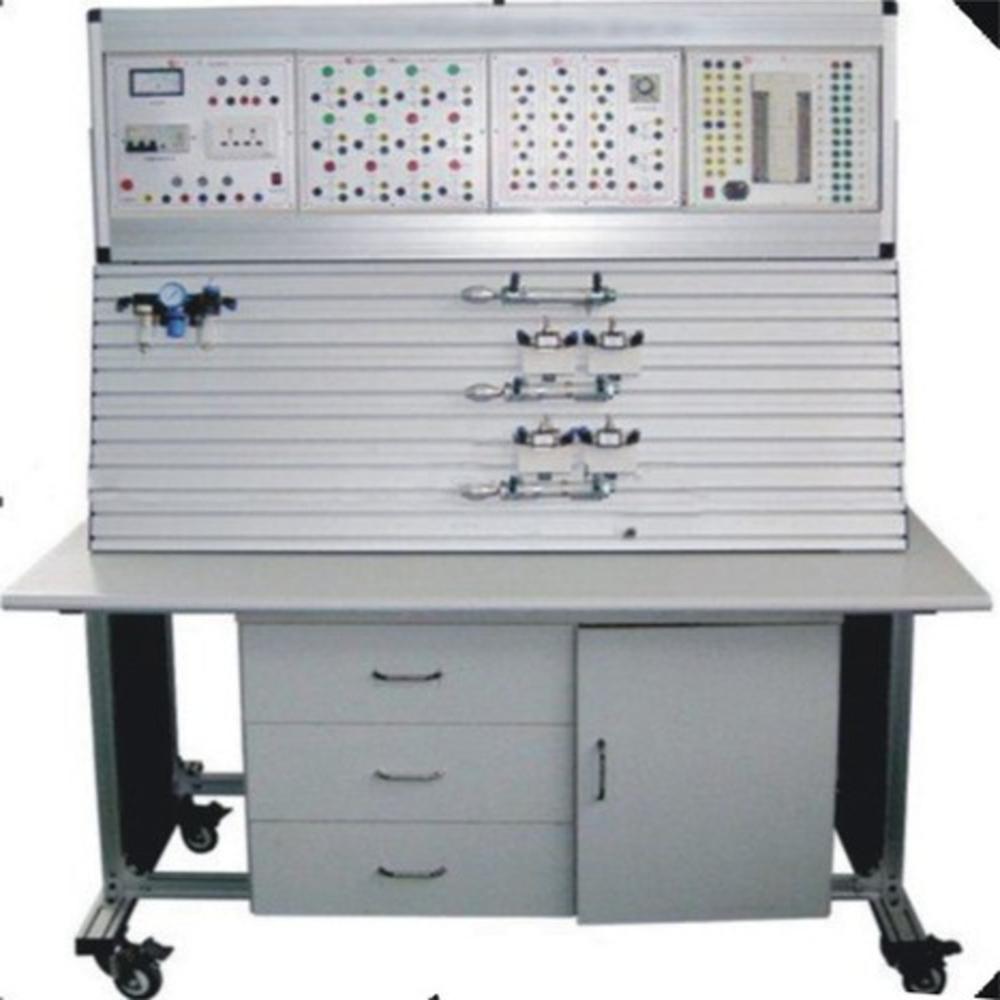

This device is composed of control unit, high quality pneumatic components, pollution dealing unit, filter unit, specific lubrication unit, pressure measurement unit, air compressor unit, aluminium alloy mounting panel (double face), different type pneumatic joints, tool kits, pneumatic simulation software and so on. It can be used for various pneumatic transmission demonstrations, pneumatic transmission circuit training, which covers the objects of pressure, speed control, direction control and so on. By the operation of this device, students can understand the structure and function of various pneumatic components and circuit, the working principle of air source part, the assembly and disassembly of each component and so on.

TECHNICAL PARAMETERS

Power: 220V, 50Hz, output DC24V
Operating ambient temperature: -5°C~40°C Operating humidity: less than 90% (40°C)
Safety protection: It adopts insulated safety sockets, sheathed cables and wires, with the leakage protection function, when short circuit happens, it will cut off the power automatically, safety in accordance with international standard.
Pollution dealing unit: It is designed with a specific structure in accordance with international environmental standard, all the pneumatic valves could be connected with this to avoid and decrease the environmental pollution produced by the pneumatic system.
Filter unit: This unit is used to filter the moisture in the compressed air and avoid the damage caused by the moisture to the pneumatic components. It can not only be installed with the air compressor unit, but also mounted on the aluminum alloy panel.
Specific lubrication unit: This unit is used to lubricate the moving parts of pneumatic system, and increase the service life of pneumatic components, with a pressure gage on it
Pressure measurement unit: With excellent measurement ability, it can be connected with three pneumatic components at the same time; users can know the pressure of three components directly by read the figures displayed on it. This unit is designed with a sensitive induction structure including two air source touch points and three seamless connection bases.
Pneumatic component: All the pneumatic components are equipped with a spring board and quick release

Comprehensive Dual-Sided Training Platform

The double-sided design maximizes training efficiency, allowing multiple students to practice pneumatic exercises simultaneously. This setup covers a broad spectrum of experiments from basic to advanced, supporting hands-on learning in sequencing, logic, and system troubleshooting. By providing shared access to resources, the trainer is ideal for busy educational labs or industrial workshops.

Integrated Safety and Mobility Features

To ensure safe operation, the trainer comes with integrated safety valves and an emergency stop switch. Mobility is enhanced by a robust frame mounted on lockable caster wheels, making it easy to move between workstations or classrooms. These features guarantee flexibility in usage while maintaining high safety standards.

Complete Monitoring and Storage Solutions

Instructors can utilize the built-in demonstration and monitoring panel to guide and oversee student progress in real-time. The trainer includes a dedicated compartment for tool and accessory storage, ensuring an organized workspace and easy access to all necessary components. This supports a seamless learning process and minimizes disruption during experiments.

FAQs of PNEUMATIC TECHNOLOGY TRAINER DOUBLE FACE:

Q: How does the double face design benefit training sessions?

A: The double-sided structure allows two groups to work simultaneously on different exercises, making efficient use of laboratory time and resources while fostering collaborative learning and peer interaction.

Q: What types of experiments can be conducted using the PNEUMATIC TECHNOLOGY TRAINER DOUBLE FACE?

A: Users can perform a wide range of exercises, from basic pneumatic setups to advanced tasks such as sequencing, troubleshooting, and logic operations, supporting both beginners and advanced learners.

Q: When is it advisable to use the integrated safety features?

A: Safety features like the emergency stop switch and integrated safety valves should be engaged before every experiment and during system setup or in case of any detected malfunction, ensuring maximum safety for users at all times.

Q: Where is the recommended location for installing and using this trainer?

A: This trainer is best suited for laboratory environments or industrial training centers with a flat surface and easy access to power supply and air, ensuring stability and optimal performance during practical exercises.

Q: What is the process for setting up the PTT-DF2024 model?

A: Begin by positioning the unit at your desired location, locking the caster wheels, connecting the power supply and air source, attaching the quick-connect pneumatic couplings, and verifying safety features before initiating any experiments.

Q: How should the built-in storage compartment be used?

A: The dedicated storage compartment is designed for organizing and securing all tools, tubing, and accessories required for pneumatic experiments, promoting efficiency and minimizing the risk of misplaced components during operation.

Q: What are the key benefits of using this pneumatic trainer in educational settings?

A: This trainer offers hands-on skill development, comprehensive coverage of theoretical and practical aspects, real-time instructor monitoring, and compliance with industry standards, helping users gain practical knowledge and workplace readiness.
