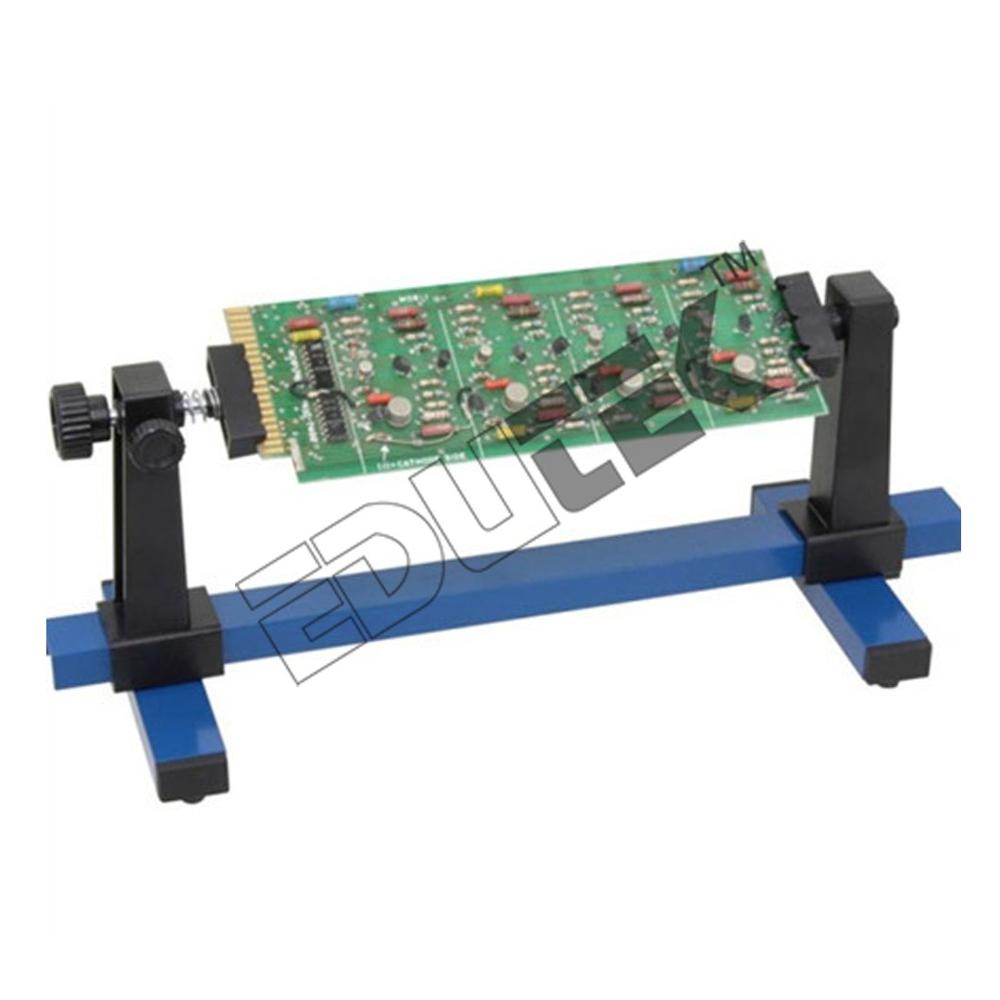

PCB Workholder

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

PCB Workholder Specification

Components
Metal frame, adjustable clamps, rubber feet

Features
Non-slip base, adjustable clamps, anti-static construction

Output
Secure gripping of PCB

Input
Manual adjustment

Operating Temperature
0C to 60C

Interface
Manual adjustment knobs

Usage
PCB holding and supporting

Power Source
Manual

Product Type
PCB Workholder / PCB Clamp

Application
Electronics assembly, soldering, testing, DIY projects

Rated Voltage
N/A (mechanical device, not powered)

Size
Adjustable to fit PCBs of size up to 200 mm x 150 mm

Dimension (L*W*H)
Base approx. 250mm x 150mm x 100mm

Function
Holds PCB securely during repair, soldering, assembly and inspection operations

Color
Metallic silver with blue clamp handles

Weight
Approximately 1.2 kg

Capacity
Holds one PCB at a time

Thickness
Clamp thickness: 3 mm

Material
High-grade stainless steel and insulating plastic

Compatibility
Compatible with single-sided and double-sided PCBs

Mounting Style
Freestanding

Clamp Adjustment Range
Up to 250mm (adjustable to fit most PCBs)

Base Material
Powder-coated metal base for corrosion resistance

Anti-Static Protection
ESD Safe Design for sensitive electronics

Number of Adjustable Rails
Two

Grip Type
Spring-loaded clamps for firm PCB holding

PCB Thickness Supported
From 0.5mm up to 2.5mm

Surface Finish
Polished/Coated for increased durability

Ease of Maintenance
Easy to Clean, Dust Resistant

PCB Workholder Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About PCB Workholder

Experience a wondrous upgrade to your workspace with this exclusive PCB Workholderdesigned specifically for professional and DIY electronics assembly. For a limited time, redeem remarkable value in every detail: crafted from sublime high-grade stainless steel with insulating plastic parts, its adjustable, ESD-safe clamps support various PCB sizes (up to 250mm) and thicknesses (0.5mm2.5mm). The anti-static, dust-resistant, and corrosion-protected construction offers enduring durability, while the spring-loaded clamps ensure precision and security. Secure your PCB projects effortlessly with this valuable workholder from a trusted India manufacturer and exporter.

Sublime Features and Versatile Application

The PCB Workholder boasts polished, powder-coated durability with two adjustable rails and a non-slip, freestanding metallic base. Its ESD-safe design delivers superior anti-static protection, making it suitable for handling sensitive electronics. Application surfaces range from electronics assembly to testing and soldering, accommodating single or double-sided PCBs up to 200mm x 150mm. Maintenance is effortless, thanks to its dust resistance and smooth surfaces, ensuring a clean, valuable workspace for precise operations.

Freight, Arrival, and Hassle-free Supply

Sample availability allows users to assess the workholders valuable utility firsthand. With a robust supply ability, bulk orders are promptly processed for export and local shipments. Packaging is secure, protecting each unit during transport services and freight handling. Orders are efficiently managed to ensure safe, timely arrival, offering peace of mind to manufacturers, suppliers, and individual buyers alikewhether shipped domestically within India or internationally.

FAQs of PCB Workholder :

Q: How does the adjustable clamp function benefit PCB assembly?

A: The adjustable clamp accommodates PCBs of varied sizes (from 0.5mm to 2.5mm thick and up to 250mm wide), making it versatile and convenient for assembling, repairing, or inspecting different types of circuit boards.

Q: What materials are used to ensure durability and anti-static protection?

A: High-grade stainless steel and insulating plastic offer sublime strength, while the ESD-safe design protects sensitive components. The powder-coated metal base provides valuable corrosion resistance in demanding workspaces.

Q: When should I use this PCB Workholder during electronics projects?

A: Use this workholder whenever precise, hands-free positioning of a PCB is requiredduring inspection, soldering, repair, or assemblyfor optimal stability and safety throughout your electronics projects.

Q: Where can this PCB Workholder be used effectively?

A: It is perfect for laboratories, manufacturing environments, repair stations, and DIY workbenches, offering versatility in both professional and hobbyist settings.

Q: What is the process of maintenance for this workholder?

A: Maintenance is simple; its dust-resistant, easy-clean surface ensures quick wiping and upkeep, preserving the workholders sublime appearance and reliable function.
