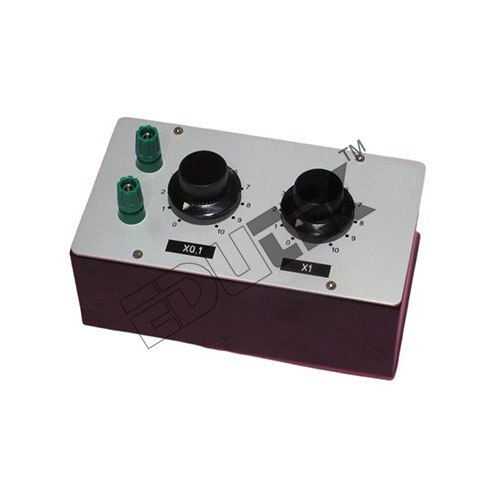

DECADE INDUCTANCE BOX TWO DIALS OF 0.1MH, 1MH

Send Inquiry

Request To Call Back

DECADE INDUCTANCE BOX TWO DIALS OF 0.1MH, 1MH

Get a Price/Quote

MOQ : 1 Piece

DECADE INDUCTANCE BOX TWO DIALS OF 0.1MH, 1MH Specification

Input
Manual selection via dials

Display Type
Rotary dial with printed scale

Power Supply
Not required (passive component)

Features
Two decade dials (0.1 mH and 1 mH), Rugged construction, High accuracy, Portable

Response Time
Instantaneous on dial selection

Components
Precision wound inductors, rotary selector dials, connection terminals, enclosure

Resolution
0.1 mH (minimum step)

Operating Temperature
0C to 50C

Interface
4mm terminal posts for external circuit connection

Usage
ENGINEERING ELECTRONICS EQUIPMENTS

Output
Inductance (selectable via dial positions)

Product Type
DECADE INDUCTANCE BOX TWO DIALS OF 0.1MH, 1MH

Application
ENGINEERING ELECTRONICS EQUIPMENTS

Size
Compact desktop form factor

Dimension (L*W*H)
185mm x 115mm x 70mm (approx.)

Function
To provide selectable inductance values for calibration, testing, and educational purposes

Color
Black (main enclosure), White (dial markings)

Weight
Approx. 750g

Capacity
Selectable total inductance up to 11mH

Current Rating
Max 0.5 A

Frequency
Up to 1 kHz (typical operating frequency for standard inductance measurements)

Insulation Resistance
>20 Mega Ohm at 500V DC

Accuracy
2% of full scale

Decade Steps
0.1 mH dial (0-0.9 mH), 1 mH dial (0-10 mH)

Inductance Range
0 to 11 mH (in steps of 0.1 mH and 1 mH)

Enclosure Material
Metal casing with bakelite front panel

Dielectric Strength
500V AC for 1 minute

Connector Type
Gold-plated 4mm binding posts

DECADE INDUCTANCE BOX TWO DIALS OF 0.1MH, 1MH Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DECADE INDUCTANCE BOX TWO DIALS OF 0.1MH, 1MH

Redeem unparalleled precision with the distinguished DECADE INDUCTANCE BOX TWO DIALS OF 0.1MH, 1MHan exclusive solution for engineering electronics testing, calibration, and education. This admirable instrument features heroic accuracy (2%), enviable portability, and a cost-effective metal enclosure with a bakelite front panel. Effortlessly select your desired inductance (0 to 11 mH) via dual rotary dials (0.1 mH and 1 mH steps) and trust reliable performance supported by gold-plated 4mm connections and robust insulation. No power supply required; just manual dial selection for immediate outputmaking it an essential asset for every electronic professional.

Engineered for Precise Application and Distinctive Usage

The DECADE INDUCTANCE BOX TWO DIALS OF 0.1MH, 1MH is tailored for engineering electronics equipment, offering precise calibration for inductance-related circuits. Simply connect via its gold-plated 4mm binding posts, then use the decade dials for swift inductance adjustments between 0 and 11 mH. Distinguished by its rugged construction, high accuracy, and passive operation, it serves as both a reliable lab instrument and an educational demonstrator. This exclusive device is admired for uncompromising performance in demanding electronic environments.

Prompt Delivery, Sample Availability, and Recognized Certification

Experience domestic mar-worthy service with the DECADE INDUCTANCE BOX, delivered promptly as per your project requirements. Benefit from exclusive sale price deals when purchasing for bulk applications. Samples are available upon request, supporting confident decision-making. Certified for safety and performance, this product stands as a trusted choice among Indian exporters, manufacturers, and suppliers. Each unit arrives ready to deploy, ensuring fast turnaround and reliable integration into your testing, calibration, or educational workflows.

FAQs of DECADE INDUCTANCE BOX TWO DIALS OF 0.1MH, 1MH:

Q: How does the DECADE INDUCTANCE BOX TWO DIALS OF 0.1MH, 1MH function in a testing setup?

A: The box allows users to manually select specific inductance values (from 0 to 11 mH) by rotating the 0.1 mH and 1 mH dials. Connect external circuits via the gold-plated binding posts, and receive the desired inductance value instantlyideal for calibration and measurement tasks.

Q: What are the key benefits of using this inductance box?

A: This device offers exclusive benefits such as high accuracy (2%), rugged and portable design, cost-effective operation without external power, and instantaneous response. Its precision enables reliable measurements and calibrations in educational and professional electronics settings.

Q: Where is this product typically used?

A: The DECADE INDUCTANCE BOX is extensively used in engineering electronics laboratories, calibration centers, and educational institutions for testing, calibration, and instructional demonstrations related to inductance in circuits.

Q: What certifications support its quality and reliability?

A: This product is certified for safety and performance standards prevalent in the industry, ensuring assured quality for users in India and for export. Certifications confirm its insulation resistance, dielectric strength, and reliable measurement processes.

Q: Is a sample available for evaluation before bulk ordering?

A: Yes, samples of the DECADE INDUCTANCE BOX can be provided upon request, enabling users to evaluate product features and compatibility with their requirements prior to finalizing a bulk purchase.

Q: When can I expect delivery after placing an order at the sale price?

A: Prompt delivery is standard practice; once an order is confirmed, the product is dispatched quickly to meet your deadlines, making it suitable for time-constrained domestic projects.
