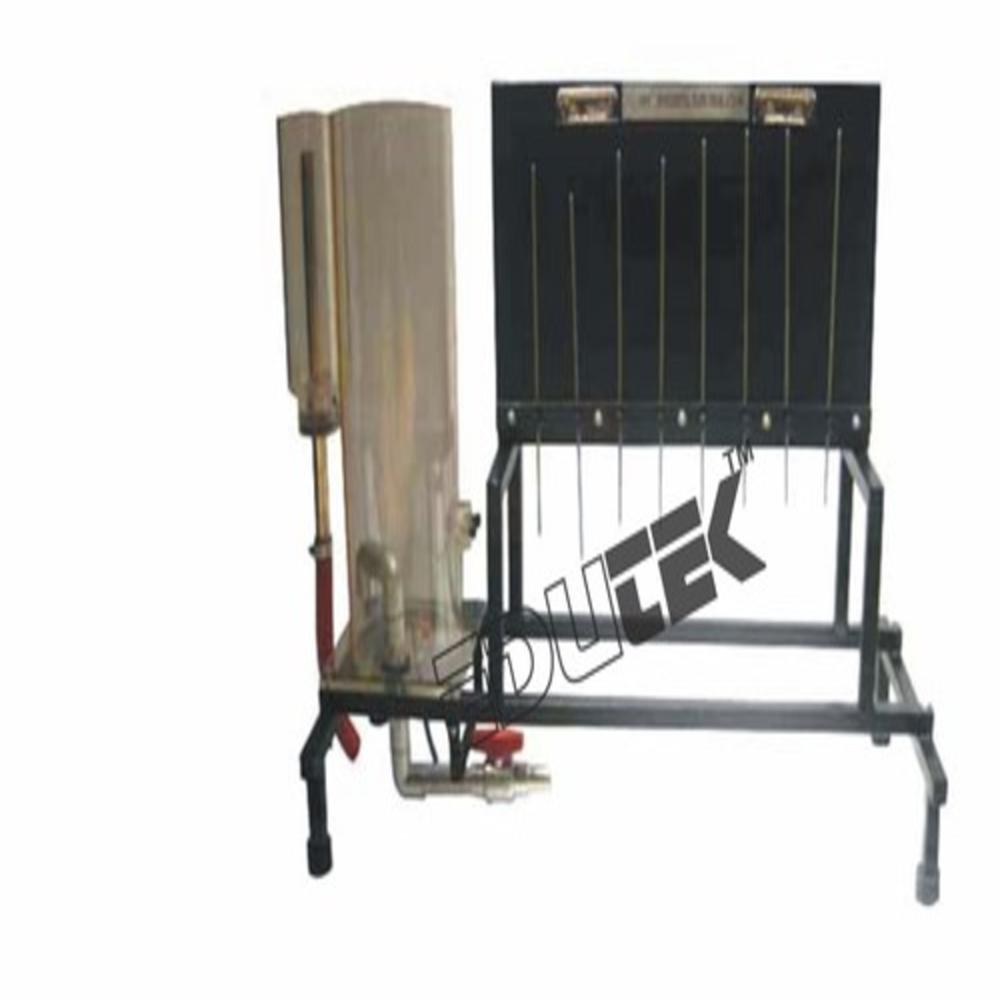

Orifice and Free Jet Flow Apparatus

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Orifice and Free Jet Flow Apparatus Specification

Warranty
1 year

Feature
equipped with an adjustable overflow and scale which enables the height of the water column to be set and read accurately

Equipment Materials
clear acrylic for the tank and metal for the frame

Type
Training Equipment

Usage
Laboratory

Orifice and Free Jet Flow Apparatus Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Cash Against Delivery (CAD), Cash on Delivery (COD), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Middle East, Africa, Western Europe

Main Domestic Market
All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Orifice and Free Jet Flow Apparatus

Orifice And Jet Velocity Apparatus

EDUTEK are offering a wide range of Orifice And Jet Velocity Apparatus.Orifice and Free Jet Flow A plexiglass cylinder is equipped with an adjustable overflow and scale which enables the height of the water column to be set and read accurately.2 types of outlet nozzle can be compared.

Experiments Orifice And Jet Velocity Apparatus :

Discharge coefficient from nozzles of varying sizes and shapes.
Trajectory of the water jet for various discharge velocities.
Effect of the height of the water column on discharge velocity.

Specification of Orifice and Free Jet Flow :

Unit for investigating the discharge from nozzles,
Draining of a water-filled Plexiglass cylinder through a nozzle.
Cylinder with adjustable overflow and scale.
2 exchangeable nozzles.
8 tracers and white panel to record the jet trajectory.

Precise Water Column Adjustment

Equipped with an adjustable overflow and clear scale, the apparatus enables users to control and read the height of the water column with precision. This feature facilitates accurate data collection during fluid mechanics experiments, making it suitable for laboratory and training environments.

Durable and Transparent Construction

The apparatus combines a strong metal frame for stability with a clear acrylic tank that allows unobstructed observation of jet and orifice behaviors. Its construction ensures longevity and ease of use during repeated laboratory sessions.

FAQs of Orifice and Free Jet Flow Apparatus:

Q: How is the water column height measured in the Orifice and Free Jet Flow Apparatus?

A: The apparatus is equipped with an adjustable overflow and a prominently marked scale that allows users to accurately set and read the water column height during experiments.

Q: What materials are used in the construction of this laboratory equipment?

A: The apparatus features a clear acrylic tank for easy visual observation and a sturdy metal frame that provides durability and support.

Q: When is this apparatus typically used in a laboratory setting?

A: It is commonly utilized during fluid mechanics training or research sessions to study the behavior of water jets and orifice flow under varying conditions.

Q: Where is the Orifice and Free Jet Flow Apparatus manufactured and supplied from?

A: This equipment is manufactured, exported, and supplied by a leading provider based in India.

Q: What is the process for adjusting the water column height?

A: Users can raise or lower the water column by manipulating the adjustable overflow and monitoring the scale to reach the desired height for specific experiments.

Q: How does the design of the apparatus benefit laboratory studies?

A: The transparent acrylic tank allows for clear observation of fluid movement, while the adjustable overflow ensures repeatable and precise experiment conditions, enhancing the accuracy of learning and research results.
