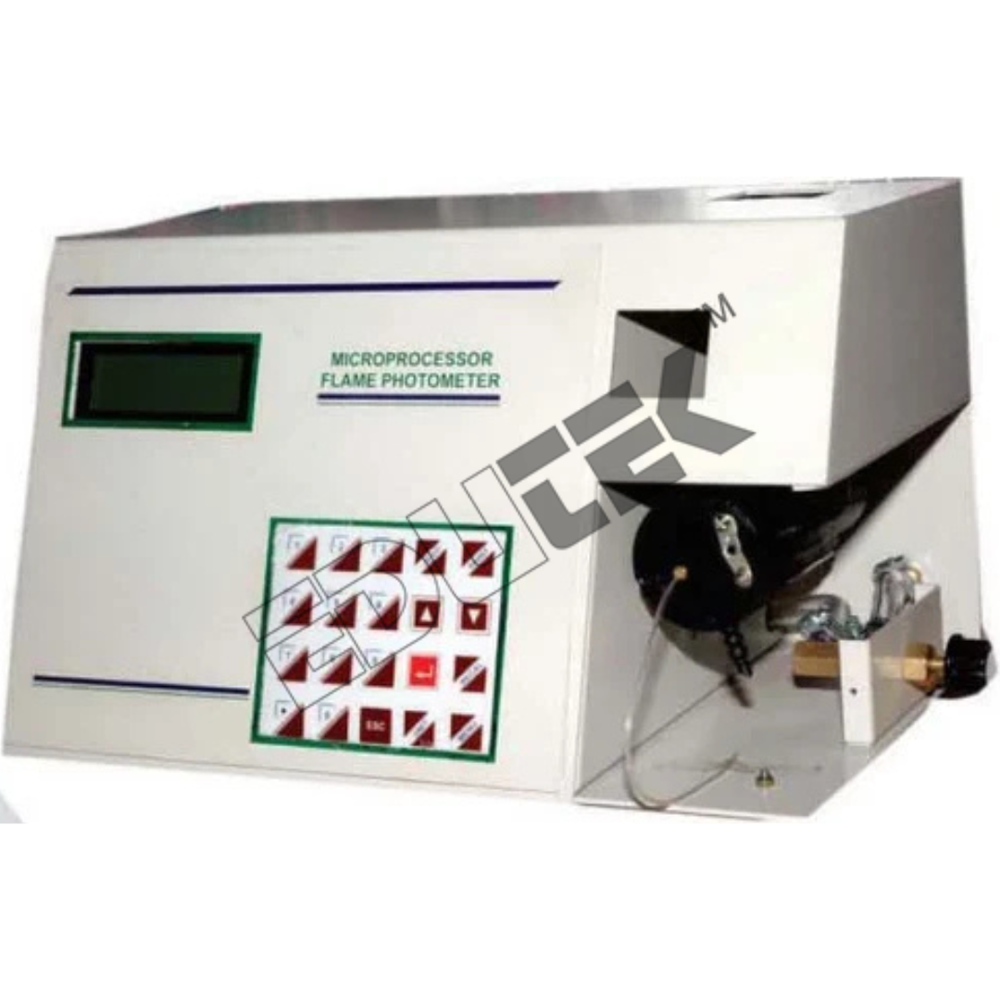

Microprocessor Flame Photo Meter

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Microprocessor Flame Photo Meter Specification

Capacity
Testing up to 4 elements: Na, K, Ca, Li

Operate Method
Microprocessor controlled with digital display and soft touch membrane keys

Application
Clinical, Medical, Agricultural and Industrial Laboratories

Classification
Laboratory Analytical Equipment

Weight
8 kg (Approximate)

Material
Metal chassis with powder coated finish, flame and solvent resistant components

Product Type
Microprocessor Flame Photo Meter

Power
230 V AC 10%, 50 Hz

Voltage
230 V AC

Usage
For quantitative analysis of sodium, potassium, calcium and lithium

Dimension (L*W*H)
500 x 320 x 230 mm

Color
White & Blue

Safety Features
Flame failure protection and over-voltage safeguard

Accuracy
2% F.S. (Full Scale)

Detection Principle
Emission flame photometry

Humidity
Less than 80% RH

Filter System
Built-in optical filters for Na, K, Ca, Li

Measurement Range
Sodium (Na): 0-100 ppm; Potassium (K): 0-100 ppm; Calcium (Ca): 0-100 ppm; Lithium (Li): 0-100 ppm

Included Accessories
Compressor, standard solutions, glassware set, filters, user manual

Operating Temperature
10C to 40C

Calibration
Automatic with digital controls and standard solution input

Repeatability
< 2% variation

Gas Required
Liquefied Petroleum Gas (LPG) or Propane

Display
7-Segment LED digital display

Sample Introduction
Nebulizer with adjustable compressor

Sensitivity
1 ppm for Na and K

Microprocessor Flame Photo Meter Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Microprocessor Flame Photo Meter

DIGITAL FLAME PHOTOMETER MICROPROCESSOR

We are leading manufacturer and exporter Microprocessor flame photometer based in India.

Technical Specification of Microprocessor Flame Photo Meter

Range Na : 0.1 to100
K : 0.1 to 100
Ca : 15 to 100
Li : 10 to 100
Sensitivity 0.1 ppm.
Accuracy ± 1 % up to 40 ppm.
± 2 % above 40 ppm.
Readout 5 digit seven segment bright red LED.

Precise Elemental Analysis

This microprocessor-controlled flame photometer delivers accurate measurement of sodium, potassium, calcium, and lithium from 0-100 ppm. Its built-in optical filters and emission flame photometry detection principle ensure reliable results suitable for various laboratory settings.

User-Friendly Digital Interface

Equipped with a 7-segment LED display and soft touch membrane keys, the photometer provides clear digital readouts and intuitive operation. Automatic calibration with standard solution input streamlines the analytical process, minimizing operator error and improving efficiency.

Safety and Reliability

The instrument features robust safety systems, including flame failure protection and over-voltage safeguard. Its sturdy metal chassis with powder-coated finish, flame and solvent resistant components, and compatibility with LPG or Propane ensure dependable performance and longevity in demanding laboratories.

FAQs of Microprocessor Flame Photo Meter:

Q: How does the Microprocessor Flame Photometer perform elemental analysis?

A: The photometer uses emission flame photometry, introducing the sample via a nebulizer and adjustable compressor. Built-in optical filters isolate sodium, potassium, calcium, and lithium, and the microprocessor-controlled system measures light emitted by these elements for precise quantification.

Q: What is the process for calibrating the instrument before use?

A: Calibration is automatic and managed digitally. Users input standard solutions for each element, and the microprocessor system adjusts parameters accordingly, ensuring accurate readings across the 0100 ppm range for sodium, potassium, calcium, and lithium.

Q: Where can this photometer be used effectively?

A: This photometer is ideal for clinical, medical, agricultural, and industrial laboratories. Its broad application range and robust safety features support both research and routine analytical tasks, wherever precise elemental analysis is needed.

Q: When should standard solutions and filters be replaced?

A: Standard solutions should be replaced regularly based on laboratory protocols or when detected inaccuracies arise. Filters are durable, but periodic inspection and replacement are recommended as part of routine maintenance to ensure continued measurement integrity.

Q: What benefits does the digital display and microprocessor control offer?

A: The digital LED display provides clear, immediate results, and the microprocessor system automates calibration and operational controls. This reduces human error, enhances repeatability (<2% variation), and streamlines workflow, especially in laboratories with high sample throughput.

Q: How does the safety system work in the photometer?

A: Safety is ensured by flame failure protectionwhich shuts off the gas if the flame extinguishesand over-voltage safeguards to protect internal components. These measures prevent hazardous situations and contribute to the instruments reliability during operation.
