MEASUREMENT OF LEVEL BY AIR PURGE METHOD APPARATUS

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MEASUREMENT OF LEVEL BY AIR PURGE METHOD APPARATUS Specification

Accuracy
1 mm

Usage
Engineering Testing Equipment

Display Type
Graduated scale

Temperature
5C to 45C operating range

Product Type
MEASUREMENT OF LEVEL BY AIR PURGE METHOD APPARATUS

Humidity
Up to 85% RH

Max Height
300 mm (liquid column)

Mounting Type
Benchtop

Operating Voltage
230 V AC

Measuring Range
0 to 300 mm

Response Time
Instantaneous (upon air purging)

Gas Pressure
0.51.0 kg/cm (using laboratory air)

Interface Type
Analog (no digital interface)

Number of Specimens
1 at a time

Power Supply
230 V AC, 50 Hz

Test Range
0-300 mm (level measurement)

Frequency
50 Hz

Specimen Size
Up to 150 mm width

Automation Grade
Manual

Port Size
6 mm (air inlet)

Application
Engineering Testing Equipment

Resolution
1 mm

Features
Simple operation, corrosion-resistant, transparent measuring tube, regulated air flow system, pressure regulator with gauge, easy maintenance

Equipment Type
Level Measurement Apparatus

Capacity
1 measuring vessel per test

Machine Weight
Approx. 10 kg

Test Speed
Manual

Test Width
150 mm

Test Stroke
Up to 300 mm

Control Mode
Manual/Analog

MEASUREMENT OF LEVEL BY AIR PURGE METHOD APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About MEASUREMENT OF LEVEL BY AIR PURGE METHOD APPARATUS

Specification:

MEASUREMENT OF LEVEL BY AIR PURGE METHOD APPARATUS

Salient Features:

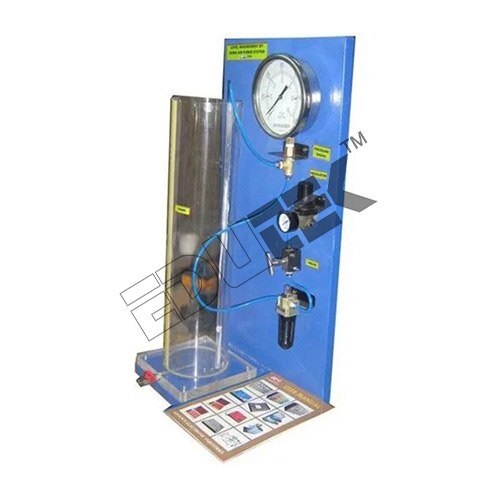

The EDUTEK Level Measurement by usingAir Purge systems is a versatile and standalone system useful for demonstratingthe indirect measurement method of measuring level of water in mmwc.

The unit consists of a transparentcylindrical tank, calibrated pressure gauge in mmwc, air regulating valve, etc.all mounted on a powder coated platform. Air supply should be provided by theuser.

Comprehensive instruction manualcomplete with theory and operating details is provided along with the unit.

Technical Specifications

Level Tank: Transparent, () 150mm x (H) 600mm

Pneumatic Tubing: 1/4" PU

Level Indicator: Pressure gauge calibrated in mmwc.

Air Regulator: 1/4" air regulating valve, leak proof.

Experiments:

Study of Level measurement using backpressure.

Demonstrate the implicative use of pressure gauge as level measurement(indirect measurement technique).

Reliable and Precise Level Measurement

This apparatus utilizes the well-established air purge (hydrostatic pressure) method, enabling highly accurate and repeatable liquid level measurements for water and various non-corrosive liquids. With a measuring range up to 300 mm and a resolution of 1 mm, it is built to meet rigorous laboratory standards and delivers quick, consistent readings every time.

Robust and Safe Construction

Designed for safety and longevity, the device incorporates a shatterproof borosilicate glass tube, powder-coated mild steel frame, and an over-pressure relief system. The transparent tube and easy-to-read graduated scale make monitoring straightforward, while the included tube holder and pressure regulator contribute to both safety and ease of use in laboratory environments.

User-Friendly Operation and Versatility

The apparatus features manual, analog control for simple operation without the need for complex digital setups. The integral needle valve ensures fine air flow adjustments, and the system comes with flexible tubing, a connection for air pump or compressor, and an instruction manual. The apparatus is suitable for a wide range of educational and engineering testing applications.

FAQs of MEASUREMENT OF LEVEL BY AIR PURGE METHOD APPARATUS:

Q: How does the air purge method measure liquid levels in this apparatus?

A: The air purge method works by introducing a controlled air flow through a tube immersed in the liquid. As air is purged, the pressure required to force bubbles out reflects the depth of immersion, allowing accurate level measurement based on hydrostatic principles.

Q: What types of liquids can be measured with this apparatus?

A: This equipment is designed for water and various non-corrosive liquids. It is not suitable for corrosive or volatile substances to ensure safety and maintain equipment integrity.

Q: When should field recalibration be performed?

A: While the apparatus is factory calibrated for accuracy, field recalibration is advisable before critical tests, after transport, or following maintenance, to maintain optimal performance and measurement precision.

Q: Where is this equipment typically used?

A: This level measurement apparatus is primarily used in engineering laboratories, research institutions, and technical education centers for instructional and testing purposes.

Q: What is the process for operating the apparatus?

A: To use, connect the flexible tubing to your air pump or compressor, adjust the pressure regulator for fine air flow, immerse the tube in the liquid, and read the liquid level on the graduated scale as the system responds instantaneously to air purging.

Q: What are the benefits of using this benchtop level measurement equipment?

A: Key benefits include simple manual operation, high measurement accuracy (1 mm), a corrosion-resistant measuring tube, over-pressure safety features, and clear visibility of results, making it ideal for educational and laboratory environments.
