TIME CONSTANT OF MANOMETER APPARATUS

Description:

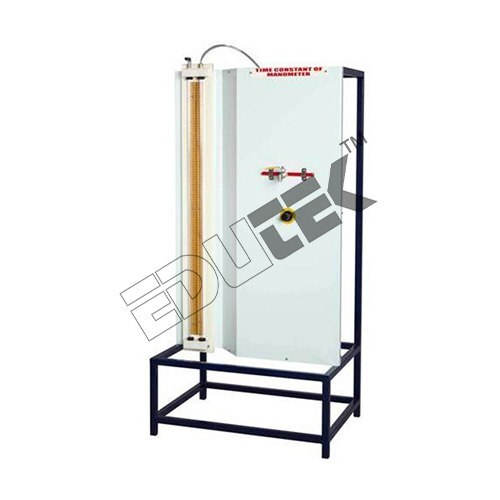

The present set-up is designed tostudy the characteristics of a U Tube manometer. It consists of a U Tubemanometer, which is pressurized by air. A suitable and proper arrangement hasdone for charging and discharging the manometer fluid in the manometer.

This arrangement facilitates toobserve the response of different types of manometer fluids of differentheights. An air pressure regulator is provided to change the pressure in themanometer.

All components are assembled on aframe to form a tabletop set-up.

Experimentation:

To find the characteristics of U tubemanometer.

To estimate the theoretical timeconstant and damping coefficient of the manometer.

To plot the graphs with dampingco-efficient as abcirra and decay ratio, overshoot and frequency of oscillationas ordinates.

Product Details:

Material: Metal

Usage: Laboratory

Type: Constant of Manometer
