Inverted Microscope With Camera

Price 1100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Inverted Microscope With Camera Specification

Shape
Rectangular base, upright head

Glass Type
Optical Glass

Features
Trinocular head, built-in camera, large sample stage, coarse & fine focusing, high-power LED illumination

Power Supply
AC mains

Display Type
Digital camera output to external display

Temperature Resistance
Standard lab range

Control Type
Manual focusing, electronic camera controls

Accuracy
High optical accuracy

Type
Inverted Microscope With Camera

Dimension (L*W*H)
Approx. 400 x 300 x 500 mm

Equipment Type
Advanced Laboratory Microscope

Equipment Materials
Metal body with alloy components and high-grade plastic knobs

Power
AC powered

Voltage
220V / 50Hz

Material
Metal & high quality optical glass

Application
Biological, clinical and research-grade cell observation

Magnification Range
40X-1000X standard

Objective Lenses
Infinity Plan Objectives 4X, 10X, 20X, 40X

Camera Output
USB 2.0 digital interface

Weight
Approx. 10-12 kg

Working Distance
Long working distance for cell culture dishes & flasks

Color
White/black standard laboratory finish

Stage Size
Approx. 120 x 140 mm mechanical stage

Light Adjustment
Built-in intensity adjustment dial

Focus System
Coaxial coarse & fine adjustment

User Level
Research, professional, educational

Image Capture Software
Included for PC installation

Condenser
Long working distance condenser with iris diaphragm

Camera Resolution
5 Megapixel digital camera

Illumination Source
High-brightness LED with adjustable intensity

Eyepiece
Wide field 10X/18mm (paired)

Inverted Microscope With Camera Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Inverted Microscope With Camera

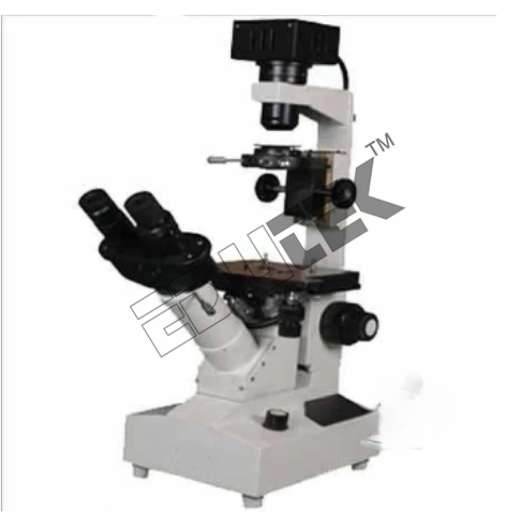

INVERTED MICROSCOPE WITH CAMERA

Exchangeable observation tubes.
Compact wedge shaped cast aluminum alloy frame for exceptional stability and a small footprint.
Chemical resistant baked enamel finish.
Flexible and modular design for system expansion.
Transparent stage plate for easy objective identification.
Low profile coaxial coarse and fine focus controls with tension adjustment.
Pre-centered 30W
Halogen bulb (Brightfield & Phase models)
Front mounted CCD, 35mm,
Digital camera port.
Automatic voltage sensing power supply.
Removable power cord.
With computer and 5 mega pixel camera

Advanced Imaging Capabilities

Featuring a built-in 5 megapixel digital camera and a USB 2.0 interface, this microscope provides sharp, high-quality images of specimens. Combined with dedicated image capture software, users can easily document and analyze cell samples on a PC, making it ideal for research-grade applications.

Optimized for Cell Culture Observation

Designed with a long working distance condenser and a spacious 120 x 140 mm mechanical stage, the microscope accommodates various cell culture dishes and flasks. The adjustable LED illumination offers excellent lighting control, ensuring precise observation of biological samples.

User-Friendly Design and Construction

The instruments robust metal body, manual focus controls, and high-quality optical glass components deliver durability and accuracy. Its intuitive mechanical and electronic controls allow researchers and educators to make fine adjustments, streamlining the observation process in laboratory environments.

FAQs of Inverted Microscope With Camera:

Q: How does the built-in camera enhance sample observation with this inverted microscope?

A: The integrated 5 megapixel digital camera allows users to capture high-resolution images and videos directly through the microscope, facilitating detailed documentation and analysis of biological samples. It connects via USB 2.0 and includes dedicated software for seamless PC integration.

Q: What applications is this microscope best suited for?

A: This advanced laboratory microscope is ideal for biological, clinical, and research-grade cell observation, especially when working with cell cultures in dishes and flasks. Its features support both professional research and educational use.

Q: When should I use the adjustable LED illumination during my observations?

A: The high-brightness LED with adjustable intensity is used whenever precise lighting is required for different sample types. Adjusting the brightness helps reduce glare and optimizes contrast to ensure accurate viewing throughout the observation process.

Q: Where is the microscope designed to be used?

A: This microscope is intended for laboratory settings, including research institutes, clinical labs, and educational facilities, offering robust performance on lab benches with its rectangular base and upright head configuration.

Q: What is the process for capturing and viewing images using the digital camera output?

A: To capture and view images, connect the microscopes camera to a PC via the USB 2.0 interface, install the included image capture software, and use electronic camera controls to acquire, view, and save specimen images in real-time.

Q: How does the long working distance condenser benefit cell culture observation?

A: The condensers extended working distance enables easy visualization of samples in larger containers, such as cell culture dishes and flasks, reducing the risk of sample disruption and enhancing usability for research involving live cells.
