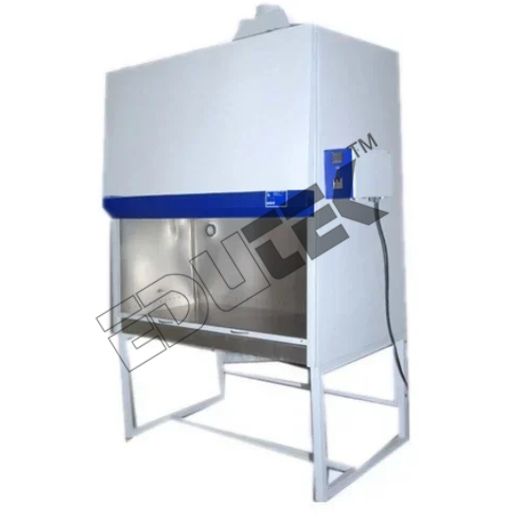

Laminar Flow Hood

Price 5200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Laminar Flow Hood Specification

Glass Type
Transparent Acrylic Sheet

Display Type
Analog (Manometer)

Temperature Resistance
Up to 50C

Power Supply
Single Phase 220V, 50Hz

Control Type
Manual Switch Panel

Features
HEPA Filter, Silent Operation, UV Germicidal Light, Energy Efficient, Ergonomic Design

Shape
Rectangular

Speed Range
Adjustable Air Flow

Accuracy
Particle-free air up to 99.97%

Type
Horizontal Laminar Flow Hood

Dimension (L*W*H)
1200 x 600 x 600 mm

Equipment Type
Laminar Air Flow Cabinet

Equipment Materials
Stainless Steel (Grade 304)

Power
700 W

Voltage
220V AC, 50Hz

Material
Stainless Steel Body with Acrylic Front Panel

Application
Laboratory Sterile Work Area, Microbiological Testing

Work Surface Height
750 mm from floor

HEPA Filter Efficiency
99.97% at 0.3 micron

Operation Mode
Continuous Duty

Blower Motor
Centrifugal type, dynamically balanced

Pre-filter
Washable synthetic fiber

Noise Level
<65 dB

Service Ports
2 (for power/utility supply)

Lighting
Fluorescent lamp and UV lamp

Airflow Velocity
0.3 to 0.6 m/s

Caster Wheels
Yes (for mobility)

Laminar Flow Hood Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
Piece

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Laminar Flow Hood

LAMINAR FLOW HOOD

(48x24x24) bio hazard safety cabinet,
microprocessor controlled European product sample,
environment protection safe
Mini-pleated ulpa filtration for 99.9998% typical efficiency easy to use.

HORIZONTAL LAMINAR FLOW HOOD

Cabinets Stainless steel work surface
Flow horizontal
Nominal widths (m) 2.1
Outer(WXDXH)size 1500 mm X 920 mm X 2500mm
Inner size working
height 900mm
Length 1450mm
Depth 750mm
Height 1000mm
Material Powder coated steel frame and exterior 304 stainless steel interior
Work surface options Stainless steel work area optional electro polished finish
Blower type Integrated fan/filter unit
Air flow/speed (m3/h) 1920
Filter type >99.999%D.O.P. efficiency HEPA OR ULPA
Pre filter Washable polyurethane foam
Front sash configuration options
Take up air slots and plenums on three sides of the work area
Lighting Included. Recessed fluorescent lighting
Noise level (measured 30 from filter face at 90FPM)<50 dBA
Airflow Monitor Options Minihelic gauge monitors back pressure across filter
Power requirements 220VAC,50HZ
Application Synopsis Large working space,
Airflow design reduces turbulence,
Quite, reliable fan/filter modules,
Differential pressure gauge monitors filters,
Clean, easy to sterilize internal surfaces

Superior Sterility in Every Task

Ensure your laboratory practices are contamination-free with this laminar flow hood, which harnesses HEPA filtration and UV disinfection. Its continuous-duty operation and high-performance, dynamically balanced blower keep the workspace completely particle-free and protect your sensitive experiments. The stainless steel construction and acrylic front panel also provide robust physical protection and easy visibility.

Effortless Operation and Ergonomic Design

Enjoy a hassle-free user experience with an intuitive manual switch panel and analog manometer display. The cabinets 750 mm working height and caster wheels promote comfortable, mobile, and adaptable laboratory setups. Combined with energy-saving lighting and silent operation, the unit is built for both efficiency and user comfort in demanding lab environments.

FAQs of Laminar Flow Hood:

Q: How does the laminar flow hood maintain a sterile environment?

A: The laminar flow hood ensures sterility by channeling air through a pre-filter and HEPA filter, removing 99.97% of particles down to 0.3 microns. The horizontal airflow prevents contamination by sweeping air across the workspace and outwards, while a UV lamp provides additional disinfection before and after use.

Q: What are the main applications for this laminar flow cabinet?

A: This equipment is ideal for laboratory sterile work, such as microbiological testing, culture transfers, preparation of sterile solutions, electronics inspection, and other applications that require a contamination-free environment.

Q: When should the UV lamp be used during the operation process?

A: The UV lamp should be operated before and after working in the hood to disinfect the work area. It should be turned off during sample handling, and switched on during non-working periods to maintain sterility.

Q: Where can this laminar flow hood be installed in a laboratory setup?

A: This hoods compact rectangular design, mobility via caster wheels, and moderate dimensions (1200 x 600 x 600 mm) allow easy placement on standard lab floors or benches. It requires access to a single-phase 220V, 50Hz power supply.

Q: What are the benefits of adjustable airflow in this laminar flow hood?

A: Adjustable airflow allows the user to optimize air velocity (0.3 to 0.6 m/s) for varying tasks, ensuring effective particle removal and workspace comfort without compromising sample integrity.

Q: How is the airflow monitored and controlled within the cabinet?

A: Airflow is regulated using a manual switch panel, and its velocity or filter load is tracked on the analog manometer display, allowing users to maintain the ideal conditions for their processes.
