Hydraulic Jack Hand Operated

Get a Price/Quote

MOQ : 1 Piece

Hydraulic Jack Hand Operated Specification

Features
Portable, Sturdy Construction, Easy Operation, Leak-proof Design

Power
Manual

Accuracy
High

Power Consumption
None (Manual)

Capacity
5 Ton

Machine Speed
Controlled by Operator

Resolution
Standard

Power Source
Manual

Application
Lifting Heavy Loads, Vehicle Maintenance

Stroke Length
150 mm (approx.)

Weight
24 kg (approx.)

Dimension (L*W*H)
Approx. 300 x 250 x 500 mm

Speed Range
Manual Operation

Operating Temperature
-5°C to 50°C

Load Capacity
5 Ton

Color
Blue

Control System
Hand Lever Operated

Product Type
Hand Operated Hydraulic Jack

Automatic Grade
Manual

Material
Heavy Duty Steel

Jack Type
Bottle Jack

Safety Valve
Built-in Overload Protection

Body Finish
Powder Coated

Lifting Height
Up to 300 mm

Handle
Detachable Steel Handle

Base Plate
Reinforced Steel for Greater Stability

Seal Type
Oil-resistant Rubber Seals

Cylinder Type
Single Acting

Hydraulic Jack Hand Operated Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Middle East, Western Europe, Africa, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Hydraulic Jack Hand Operated

Hydraulic Jack Hand Operated

Hydraulic Jack Hand operated Remote control type

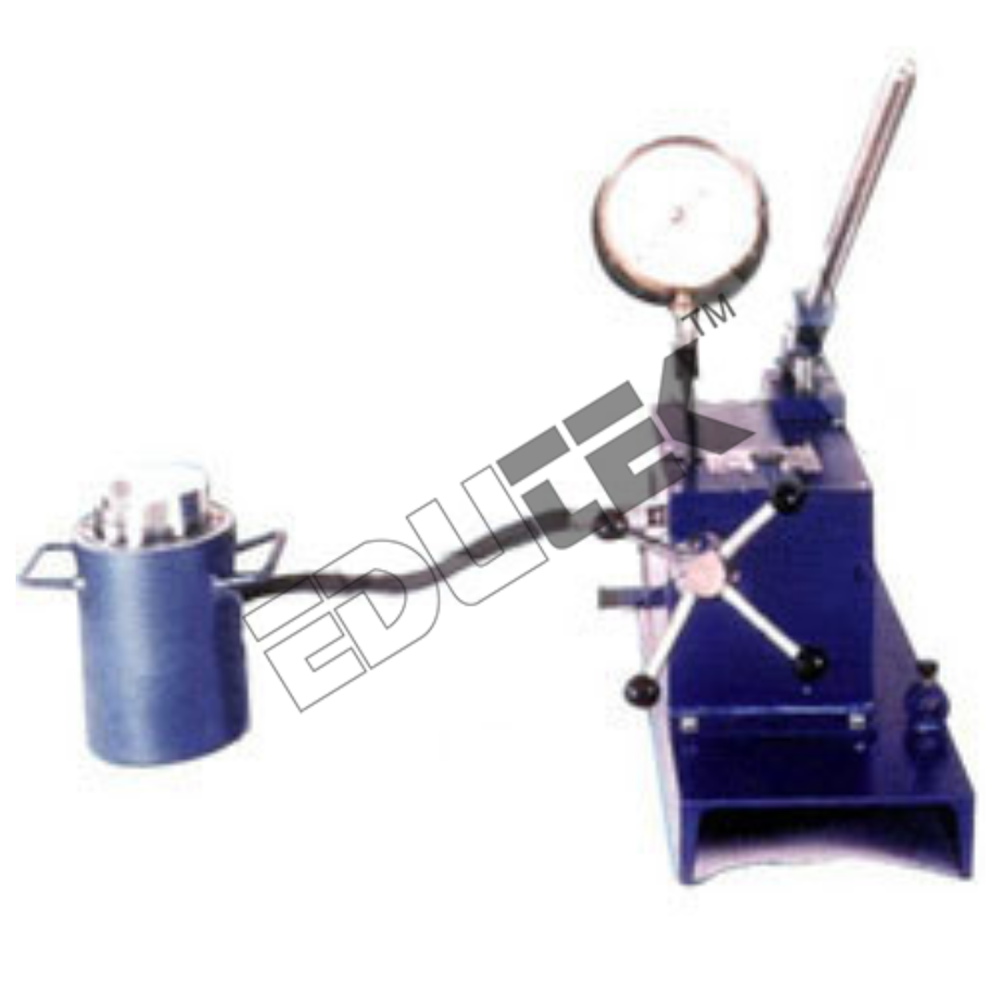

Hydraulic jacks are of multipurpose utility i.e. application of loads while engaged in field investigation, determination of load carrying capacity of piles in the field, tensioning of wires in pre-cast structures, loading of members of any structure for deformation characteristics etc. The Jacks are supplied complete with manually operated pumping units fitted with Bourdon tube type Hydraulic pressure gauge and a copper connecting tube or rubber flexible

Lift of the ram - 150 mm Pressure gauge - MASTAAVIKA (Pressure gauge have normally 200 divisions for fully capacity, e.g. 100 tonne x 500 kg divisions).
* 10 Tonne Capacity
* 20 Tonne Capacity
* 25 Tonne Capacity
* 50 Tonne Capacity
* 100 Tonne Capacity
* 150 Tonne Capacity
* 200 Tonne Capacity
Hydraulic Jacks, Bottle TYPE Hydraulic Lifting Jacks-Complete with integral Pumping unit. Release valve provided on the base plate. Complete with operating handle.Hydraulic lift - 150 mm and Extension Screw - 150 mm
All Jacks are without pressure gauge
* 5 Tonne Capacity
* 10 Tonne Capacity
* 20 Tonne Capacity
* 25 Tonne Capacity
* 30 Tonne Capacity
* 50 Tonne Capacity
* 100 Tonne Capacity

Accessories: Hydraulic Pressure Gauge

Sturdy & Efficient Design

This jack features a heavy-duty, powder-coated body and a reinforced steel base plate, making it highly stable and durable. A leak-proof oil-resistant seal and built-in overload protection further enhance safety for users during demanding lifting tasks.

Versatile Applications

With a 5-ton capacity and up to 300 mm lifting height, the jack is suitable for lifting vehicles and other heavy equipment. Its manual operation allows precise control, making it a reliable tool for maintenance in workshops, garages, and field environments.

User-Friendly Operation

Designed for ease of use, the jacks detachable steel handle and hand lever system enable smooth, controlled lifting. Its compact dimensions and portable build allow convenient transport and storage, catering to professional and personal use alike.

FAQs of Hydraulic Jack Hand Operated:

Q: How do I operate the Hydraulic Jack Hand Operated safely?

A: To safely operate the jack, place it on a solid, level surface, position the reinforced steel base plate under the load point, then use the detachable handle to pump the lever. Always ensure the built-in overload safety valve is engaged before lifting.

Q: What types of loads and applications is this jack suitable for?

A: This jack is designed for lifting heavy loads up to 5 tons. Its ideal for vehicle maintenance, workshop tasks, and industrial equipment handling, providing versatility for multiple lifting applications.

Q: When is regular maintenance required for this jack?

A: Routine maintenance involves inspecting the oil-resistant rubber seals for signs of wear, checking for leaks, and ensuring all moving parts are lubricated. Its advisable to perform these checks before and after each use, especially if used frequently.

Q: Where can I use the Hydraulic Jack Hand Operated?

A: You can use this jack in garages, workshops, outdoor settings, and industrial facilities, provided the environment falls within the operating temperature range of -5C to 50C and there is stable ground available.

Q: What is the process for assembling and preparing the jack for use?

A: To prepare the jack, securely attach the detachable steel handle, place the jack under the load, and verify the base plate is stable. Engage the hand lever to lift and always monitor the overload protection for safe operation.

Q: What benefits does this hydraulic jack offer over other lifting tools?

A: This jack offers high accuracy, leak-proof construction, and reliable overload protection. Its portability, manual control, and reinforced steel structure offer superior stability and user safety compared to standard lifting devices.
