Heating Mantles

Get a Price/Quote

Heating Mantles Specification

Core Components
Heating element, insulation, outer casing

Model No
HM500

Power Source
Electric

Frequency
50 Hz

Capacity
500 ml

Measurement Range
Room temperature to 400C

Accuracy
100 %

Feature
Highly Efficient

Temperature Range
Up to 400C

Voltage
220-240 V

Automation Grade
Manual

Equipment Materials
Aluminium housing, glass fiber insulation

Type
Electric Laboratory Heating Mantle

Usage
Laboratory

Display Type
Analog

Dimension (L*W*H)
140 x 140 x 200 mm

Weight
1.8 kg

About Heating Mantles

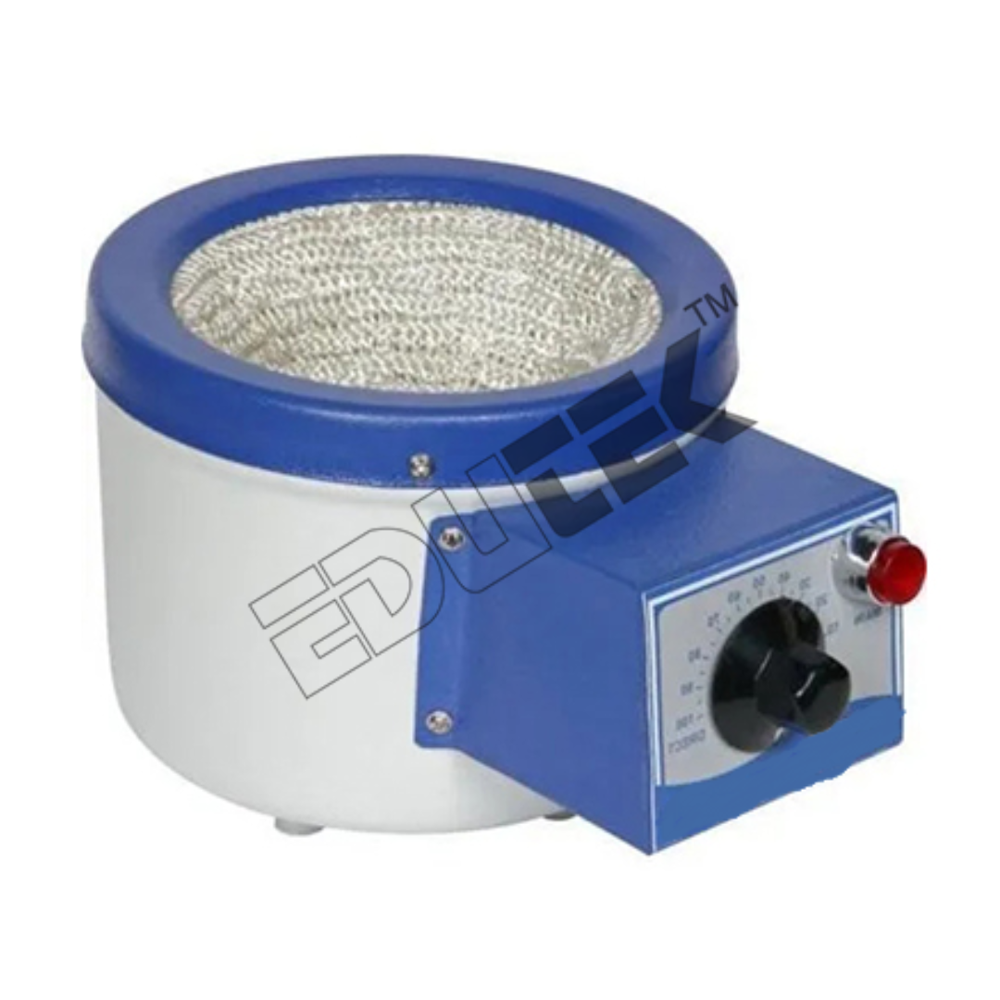

ETHR-93 Heating Mantles is available with energy regulators. These are provided with hand knitted heating nets of glass yarn which are joint-less to withstand high temperature up to 400C. Single individual size up to 5 litre capacity containers. Body is made of one piece spun aluminum and is lagged with special mineral wool. Panel is provided with on-off switch, energy control knob, pilot lamp etc. Supplied complete with cord-plug. It works on 220 V AC 50 Hz single phase.

Technical Specifications:-

Single Size	Wattage Single
50 ml	60
100 ml	60
250 ml	150
500 ml	200
300 ml	300
2 Lit.	450
3 Lit	450

Note : Other sizes, capacities, multiple models and spare Heating mantles can be supplied on demand.

Efficient and Reliable Laboratory Heating

This heating mantle employs a highly efficient Nichrome wire embedded within a fiberglass netting, ensuring uniform heat distribution and quick thermal response. With a 500 ml capacity, it is perfectly suited for most standard laboratory flasks. The analog temperature display and manual automation provide user-friendly control, making laboratory processes smoother and more dependable.

Enhanced Safety and Durability

Built with a robust aluminium housing and insulated with top-grade glass fibers, the HM500 ensures user safety through thermal fuse protection. This feature automatically cuts power in case of overheating, minimizing risk during critical laboratory applications. Its paint-coated finish and rugged construction offer long-term durability and consistent performance.

FAQs of Heating Mantles:

Q: How does the HM500 heating mantle deliver uniform heating in laboratory applications?

A: The HM500 uses a Nichrome wire heating element embedded in fiberglass netting. This configuration allows for even heat distribution, efficiently warming the contents of flasks up to 500 ml without the risk of localized overheating.

Q: What safety features does this heating mantle offer during operation?

A: For enhanced laboratory safety, the mantle is equipped with thermal fuse protection. This feature automatically disconnects the power in case of excessive temperatures, preventing accidents or equipment damage.

Q: When should I use this heating mantle in my laboratory processes?

A: The HM500 is ideal for any process requiring controlled and precise heating of chemical solutions, such as sample preparation, distillation, or reagent warming, with a temperature range from room temperature up to 400C.

Q: Where is the HM500 heating mantle manufactured and exported from?

A: The mantle is manufactured and supplied by a reputable exporter in India, known for producing high-quality scientific and laboratory equipment.

Q: What is the benefit of the mantles high-grade fiberglass thermal insulation?

A: The advanced fiberglass insulation minimizes heat loss and ensures that the external surface remains relatively cool, enhancing both user safety and heating efficiency.

Q: How do I use and control the temperature on this heating mantle?

A: Operating the mantle is straightforward: plug it into a standard three-pin power source, adjust the temperature manually using the analog display, and monitor your process to achieve reliable and accurate results.
