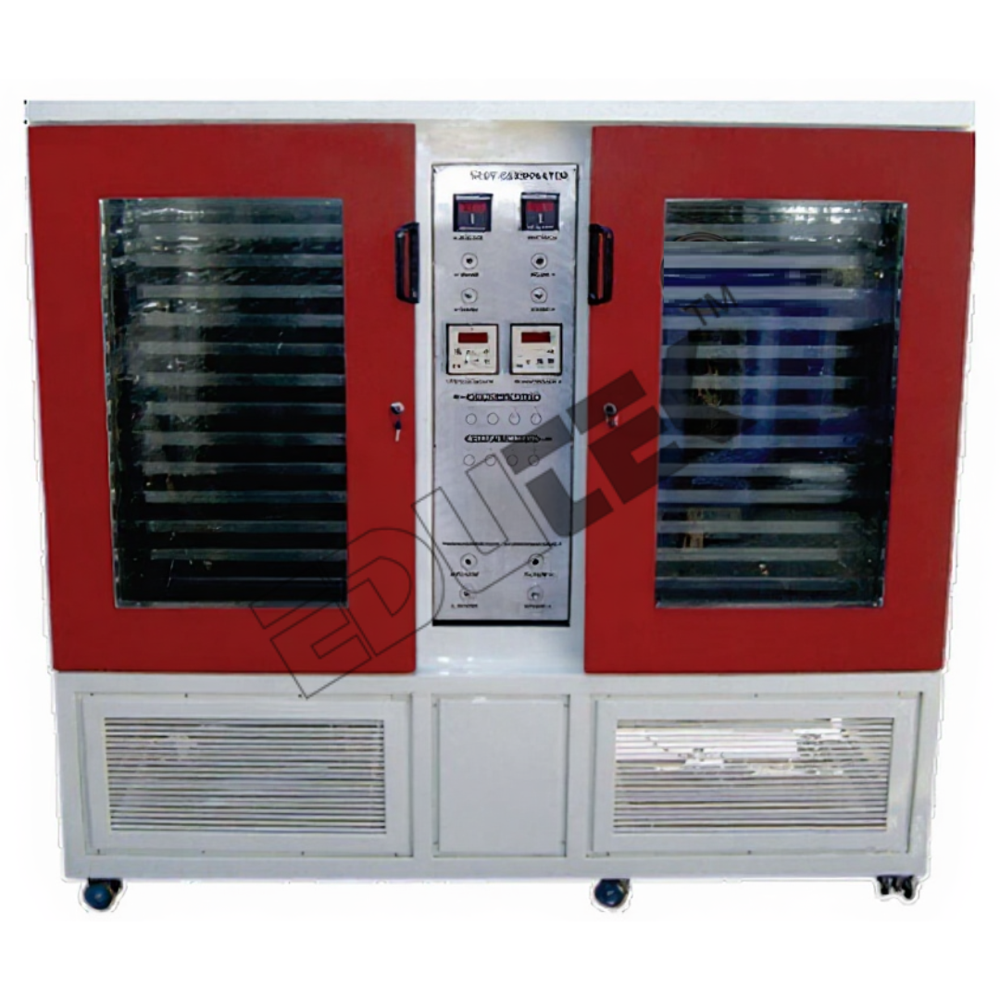

Seed Germinator Double Chamber

Get a Price/Quote

MOQ : as per requirement Unit

Seed Germinator Double Chamber Specification

Accuracy
0.5C

Temperature Range
5C to 60C

Feature
Dual Chamber with Independent Controls, Microprocessor Based, Auto Defrost

Automation Grade
Fully Automatic

Frequency
50 Hz

Core Components
Compressor, Heater, Control Panel, Humidity System

Capacity
2 x 180 liters (Double Chamber)

Model No
SGDC-02

Measurement Range
20% - 95% RH (Relative Humidity)

Power Source
Electric

Voltage
230 V AC

Equipment Materials
Stainless Steel Interior, Powder Coated Mild Steel Exterior

Type
Seed Germinator Double Chamber

Usage
Seed Germination, Plant Growth Testing

Display Type
Digital LED Display

Dimension (L*W*H)
54 x 24 x 54 inches (Each Chamber)

Weight
Approx. 175 kg

Seed Germinator Double Chamber Trade Information

Payment Terms
Telegraphic Transfer (T/T), Cheque

Supply Ability
Unit

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia

Main Domestic Market
All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Seed Germinator Double Chamber

Seed Germinator Double Chamber ETHR-102

has specifications same as double chamber and also consists of following points:-

Each chamber size : 555 (W) x 910 (H) x 605 (D) mm.
For cooling (Low temp.) 5 C to 50 C 1 C a sealed compressor unit has been provided to work independently below the chamber.

Optional :

Digital temp. indicator-cum-controller with computer data logger.
Automatic 0-24 hrs.
Timer to regulate cyclic illumination conditions.
Chart recorder.
Automatic voltage stabilizer - 3 K V A (Must).

Dual Independent Chambers for Versatility

This germinator features two chambers with independent temperature and humidity controls, making it ideal for simultaneous multiple tests. Each chamber holds up to 180 liters and is equipped with removable, adjustable shelves for flexible seed placement and staging. Dual functionality streamlines experimental workflows in labs and research facilities.

Advanced Climate Control and Data Management

Automated RH regulation and microprocessor-based temperature control ensure a stable, uniform growth environment. The optional data logger port allows users to monitor and record critical environmental variables for compliance and analysis. Auto defrost, digital LED display, and timer-controlled lighting provide additional convenience and precise management.

Robust Construction and Safety Features

Built with a stainless steel interior and powder-coated mild steel exterior, the chamber boasts high-density polyurethane insulation for energy efficiency and minimal noise (<60 dB). Features such as over-temperature protection, secure door locking, and heavy-duty caster wheels promote safe usage and easy mobility. The glass viewing window facilitates quick inspection without disturbing conditions.

FAQs of Seed Germinator Double Chamber:

Q: How does the automatic humidity control work in the Seed Germinator Double Chamber?

A: The germinator uses an integrated humidity system with microprocessor management to maintain relative humidity between 20% and 95%. Once the desired RH is set digitally, the system automatically adjusts and sustains the set levels, ensuring stable conditions essential for seed germination.

Q: What benefits does the fluorescent illumination with timer provide for seed germination?

A: Fluorescent illumination simulates natural daylight, supporting optimal plant growth and consistent seed germination. The timer enables precise control over light cycles, allowing researchers to tailor photoperiods for specific seeds and experimental protocols.

Q: When should I use the adjustable shelves in the chambers?

A: Adjustable and removable shelves are intended for arranging seeds of varying sizes and types. Utilize these shelves whenever you need to optimize chamber space, conduct multiple tests, or adapt to different seed tray heights during germination and plant growth assays.

Q: Where can this seed germinator be installed and effectively used?

A: The robust design, caster wheels, and optimum size (54 x 24 x 54 inches per chamber) allow this equipment to be easily installed in laboratories, research institutes, agricultural testing centers, and educational facilities throughout India and internationally.

Q: What process does the equipment use to maintain temperature uniformity within 1C?

A: The chamber utilizes an advanced compressor, heater, and insulated construction to distribute temperature evenly throughout the interior. Microprocessor algorithms regulate heating and cooling cycles, ensuring uniformity within a 1C range for reliable and reproducible results.

Q: How does the data logger port benefit research applications?

A: The optional data logger port allows for real-time monitoring and recording of temperature and humidity data. This functionality is indispensable for adherence to protocols, generating audit trails, and facilitating data analysis in research, compliance, or quality control settings.
